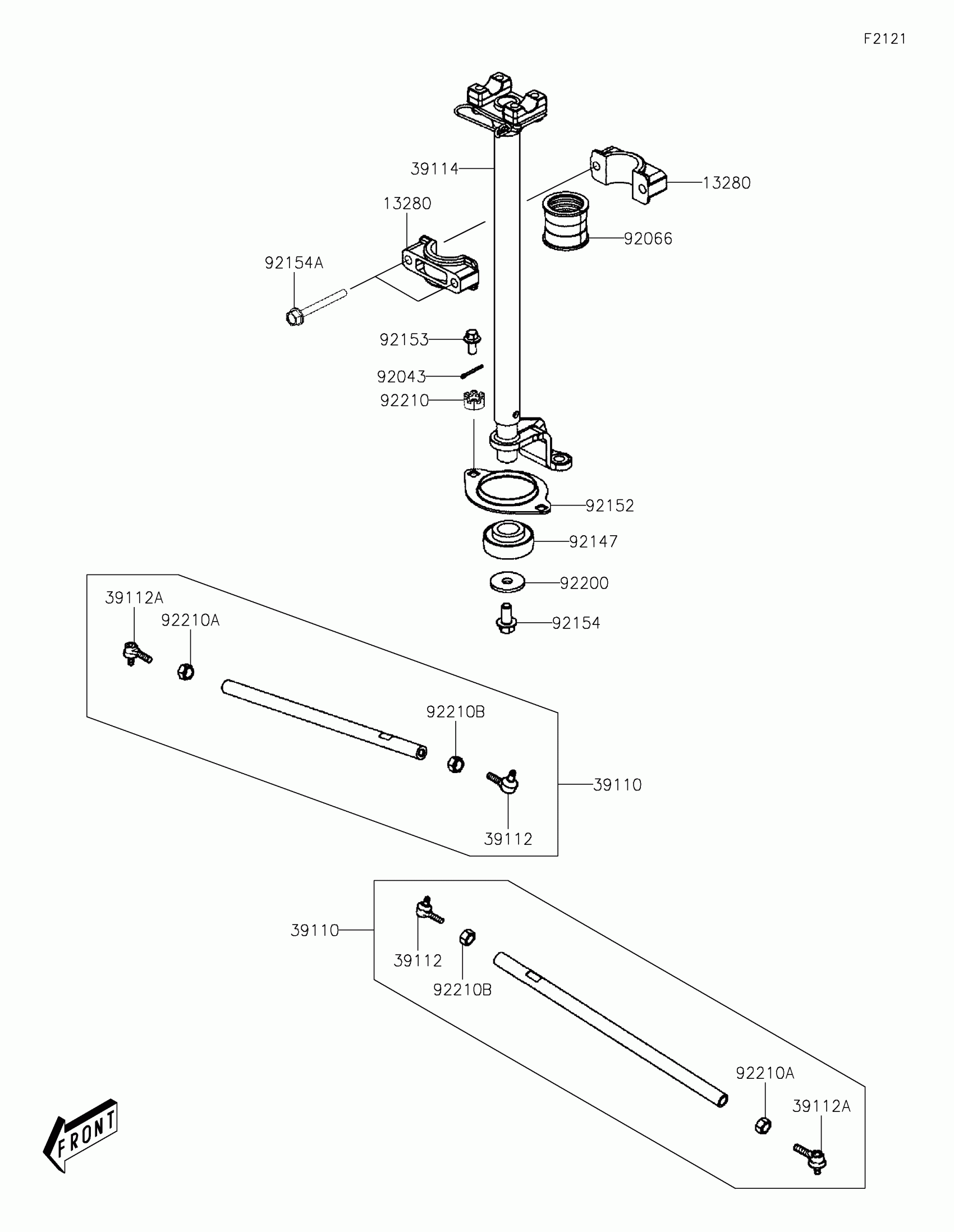

Kawasaki Brute Force 450 Steering Shaft Diagram

Description

Price

13280

HOLDER,STEERING

13280-Y027

$18.68

39110

ROD-ASSY-TIE

39110-Y007

$121.99

39112

RODEND-TIE

39112-Y009

$59.41

39112A

RODEND-TIE

39112-Y010

$59.41

39114

SHAFT-COMP-STRG

39114-Y005

$143.53

92043

PIN,3X25

92043-Y009

$0.76

92066

PLUG

92066-Y011

$6.45

92147

BEARING,STEERING

92147-Y003

$38.70

92152

COLLAR,FLANGE

92152-Y089

$4.90

92153

BOLT,FLANGE,8X20

92153-Y033

$1.47

92154

BOLT,FLANGE,10X20

92154-Y197

$3.56

92154A

BOLT,FLANGED,8X60

92154-Y263

$10.40

92200

WASHER

92200-Y127

$2.17

92210

NUT,12MM

92210-Y097

$8.60

92210A

NUT,HEX,12MM

92210-Y109

$2.04

92210B

NUT,HEX,12MM

92210-Y110

$8.93
