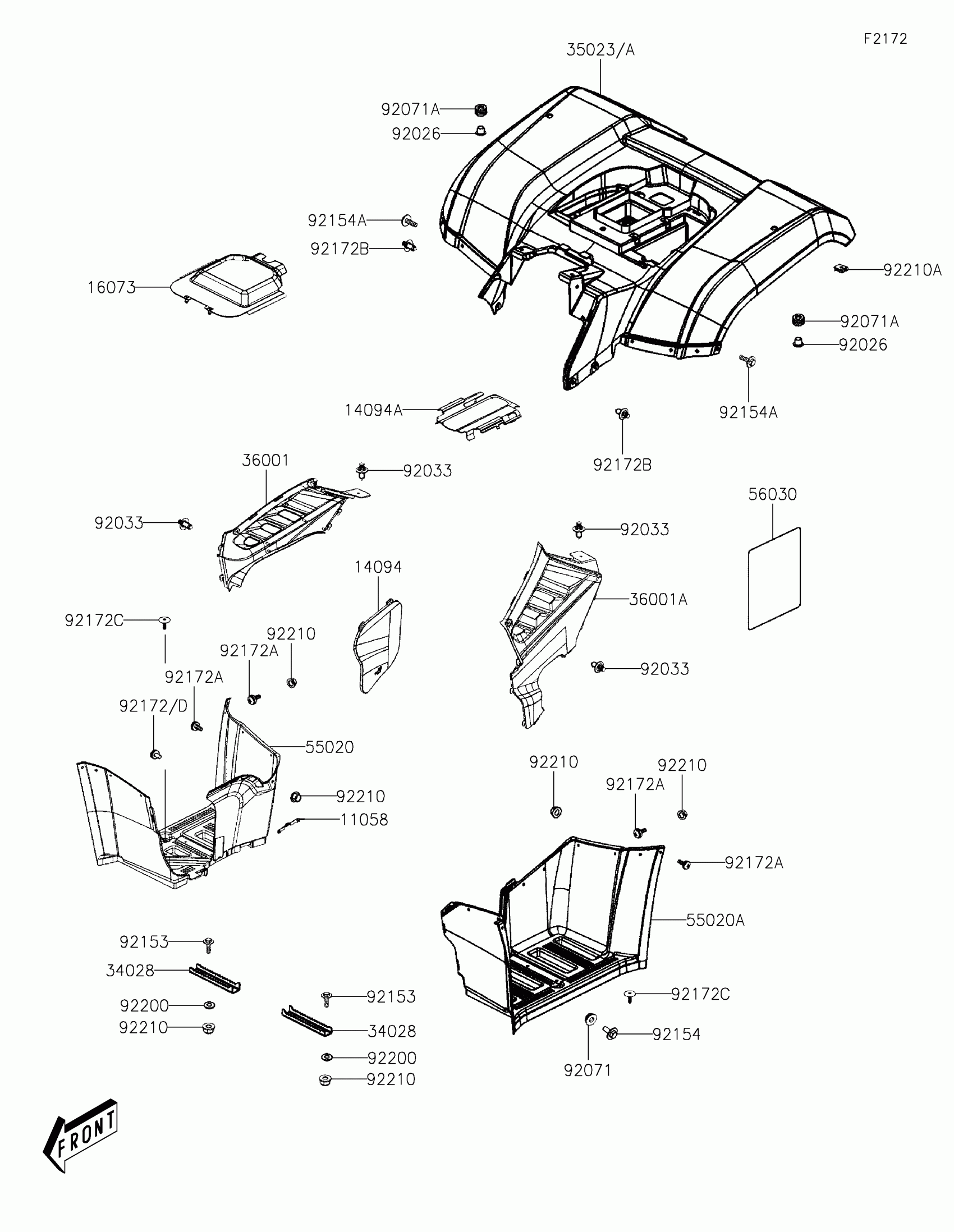

Kawasaki Brute Force 450 Rear Fender(s) Diagram
#
Description
Price
11058
BRACKET
11058-Y009
$9.76
14094
COVER,OIL LEVEL GAUGE,S.BLACK
14094-Y018-933
$6.66
14094A
COVER,REAR GEAR CASE,S.BLACK
14094-Y019-933
$20.38
16073
INSULATOR,HEAT SHIELD,S.BLACK
16073-Y007-933
$41.50
34028
STEP,FOOT PEG
34028-Y004
$12.89
35023
FENDER-REAR,B.WHITE
35023-Y006-932
$182.67
35023A
FENDER-REAR,G.BLUE
35023-Y006-984
$182.67
36001
COVER-SIDE,RH,S.BLACK
36001-Y013-933
$39.34
36001A
COVER-SIDE,LH,S.BLACK
36001-Y014-933
$74.65
55020
GUARD,FOOTREST,RH,S.BLACK
55020-Y023-933
$51.05
55020A
GUARD,FOOTREST,LH,S.BLACK
55020-Y024-933
$69.71
56030
LABEL,SHIELD
56030-Y020
$17.21
92026
SPACER
92026-Y015
$6.18
92033
RIVET
92033-Y010
$1.63
92071
GROMMET
92071-Y005
$3.01
92071A
GROMMET
92071-Y009
$2.17
92153
BOLT,6X20
92153-Y019
$1.30
92154
BOLT,6X12
92154-Y032
$1.48
92154A
BOLT,FLANGE,8X16
92154-Y243
$4.90
92172
SCREW,6X6
92172-Y002
$0.79
92172A
SCREW,6X20
92172-Y041
$3.09
92172B
SCREW,5MM
92172-Y043
$2.28
92172C
SCREW
92172-Y106
$4.08
92172D
SCREW,6X10
92172-Y108
$2.90
92200
WASHER,PLAIN,6MM
92200-Y129
$2.04
92210
NUT
92210-Y031
$1.90
92210A
NUT,4MM
92210-Y054
$3.71
