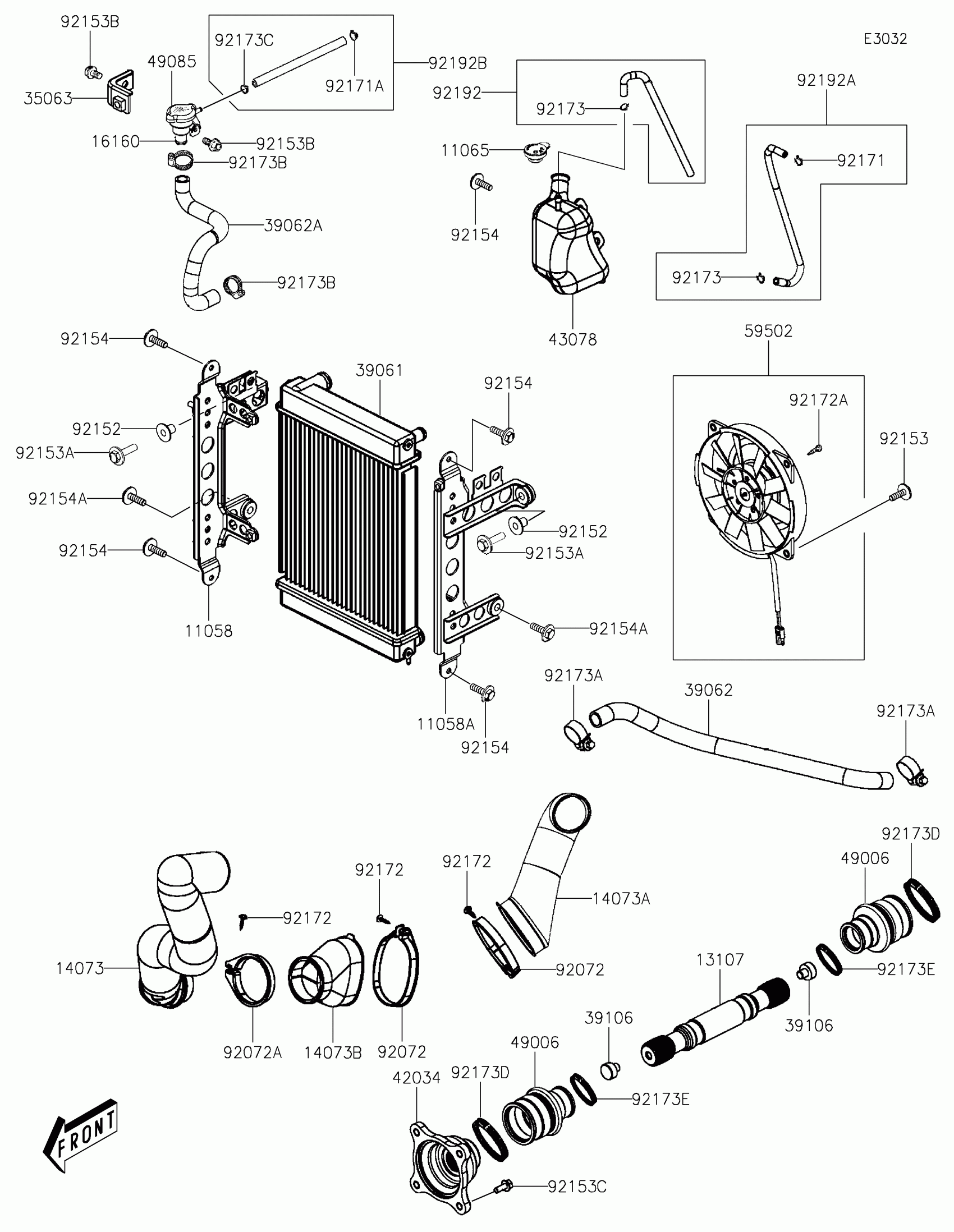

Kawasaki Brute Force 450 Radiator Diagram
#
11058
BRACKET,RADIATOR,RH
11058-Y007
$54.51
11058A
BRACKET,RADIATOR,LH
11058-Y008
$52.74
11065
CAP,RESERVE TANK
11065-Y021
$3.58
13107
SHAFT,PROPELLER
13107-Y043
$53.34
14073
DUCT,BELT-AIR IN
14073-Y023
$21.05
14073A
DUCT,AIR-OUT
14073-Y024
$53.03
14073B
DUCT,AIR-IN
14073-Y025
$16.39
16160
BODY,PRESSURE CAP
16160-Y003
$29.77
35063
STAY,RADIATOR
35063-Y048
$7.55
39061
RADIATOR-ASSY
39061-Y005
$183.60
39062
HOSE-COOLING
39062-Y028
$53.89
39062A
HOSE-COOLING
39062-Y032
$24.07
39106
RETAINER-BUMPER,DRIVE SHAFT
39106-Y001
$2.18
42034
COUPLING
42034-Y005
$44.54
43078
RESERVOIR,TANK
43078-Y005
$29.31
49006
BOOT,COUPLER
49006-Y022
$12.12
49085
CAP-ASSY-PRESSURE
49085-Y001
$27.85
59502
FAN-ASSY
59502-Y004
$153.74
92072
BAND,56X96
92072-Y023
$7.97
92072A
BAND
92072-Y024
$4.90
92152
COLLAR
92152-Y013
$1.09
92153
BOLT,6X16
92153-Y018
$1.30
92153A
BOLT,6X20
92153-Y019
$1.30
92153B
BOLT,FLANGE,6X12
92153-Y023
$0.76
92153C
BOLT,FLANGE,8X20
92153-Y033
$1.47
92154
BOLT,6X12
92154-Y032
$1.48
92154A
BOLT,6X25
92154-Y099
$4.14
92171
CLAMP
92171-Y011
$0.79
92171A
CLAMP
92171-Y017
$0.76
92172
SCREW,TAPPING,5X16
92172-Y058
$0.63
92172A
SCREW,TAPPING,4X14
92172-Y105
$5.17
92173
CLAMP
92173-Y025
$2.28
92173A
CLAMP
92173-Y031
$5.50
92173B
CLAMP
92173-Y052
$4.64
92173C
CLAMP
92173-Y096
$1.88
92173D
CLAMP,BOOT
92173-Y098
$7.55
92173E
CLAMP,30MM
92173-Y099
$6.67
92192
TUBE,DRAIN
92192-Y079
$13.02
92192A
TUBE,RESERVOIR
92192-Y080
$18.10
92192B
TUBE,RADIATOR CAP
92192-Y081
$10.01
