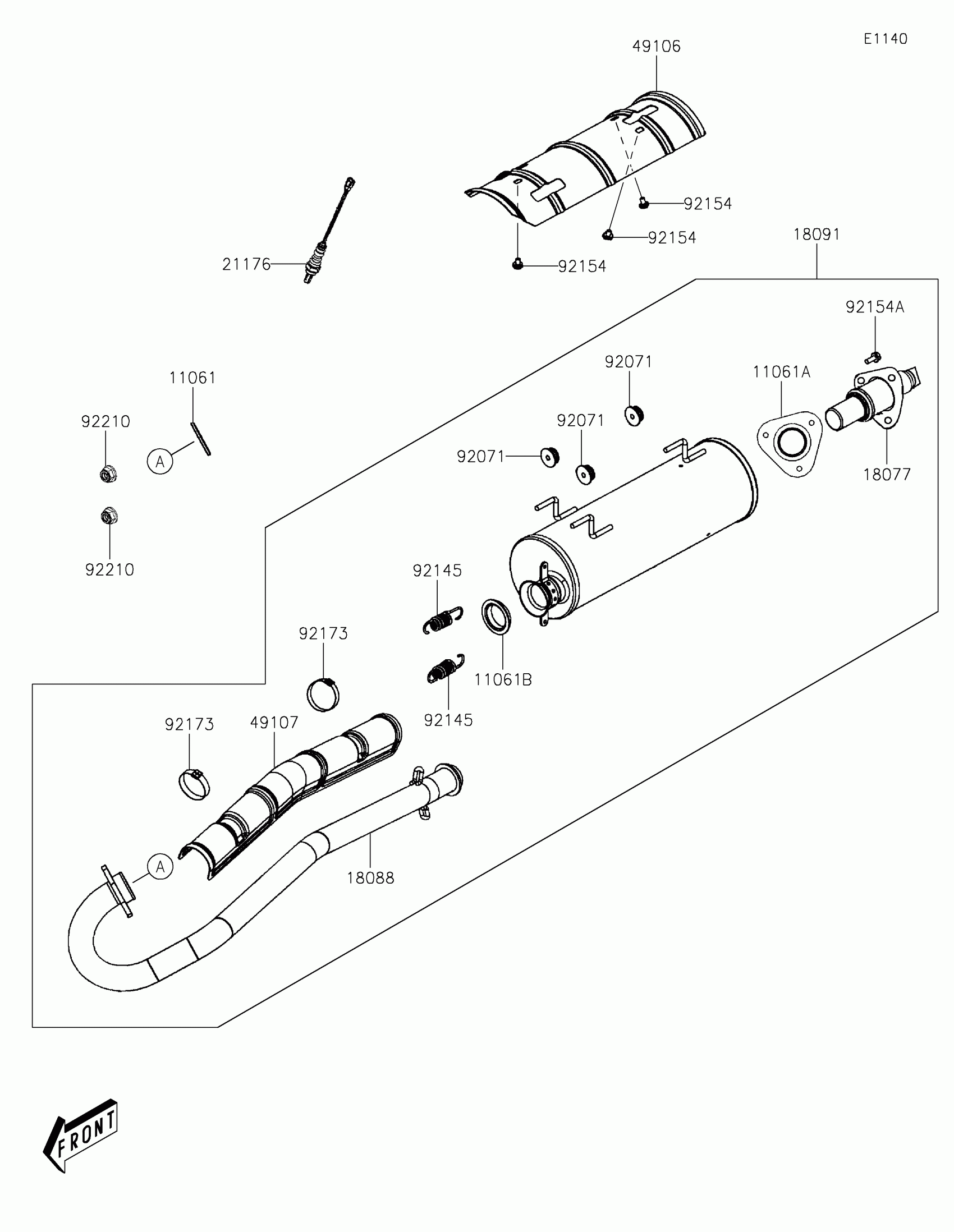

Kawasaki Brute Force 450 Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE

11061-Y079

$10.40

11061A

GASKET,SPARK ARRESTER

11061-Y080

$10.78

11061B

GASKET,EXHAUST PIPE CONNECTING

11061-Y081

$52.74

18077

ARRESTER-SPARK

18077-Y004

$80.89

18088

PIPE-EXHAUST

18088-Y003

$130.49

18091

BODY-COMP-MUFFLER

18091-Y007

$407.17

21176

SENSOR,OXYGEN

21176-Y015

$154.16

49106

COVER-MUFFLER

49106-Y006

$36.96

49107

COVER-EXHAUST PIPE

49107-Y011

$60.35

92071

GROMMET,MUFFLER

92071-Y008

$9.37

92145

SPRING,EXTENSION

92145-Y078

$8.57

92154

BOLT,FLANGE,6X12

92154-Y242

$4.27

92154A

BOLT,FLANGE,8X16

92154-Y259

$1.91

92173

CLAMP,EXHAUST PIPE COVER

92173-Y092

$21.53

92210

NUT,8MM

92210-Y028

$0.79
