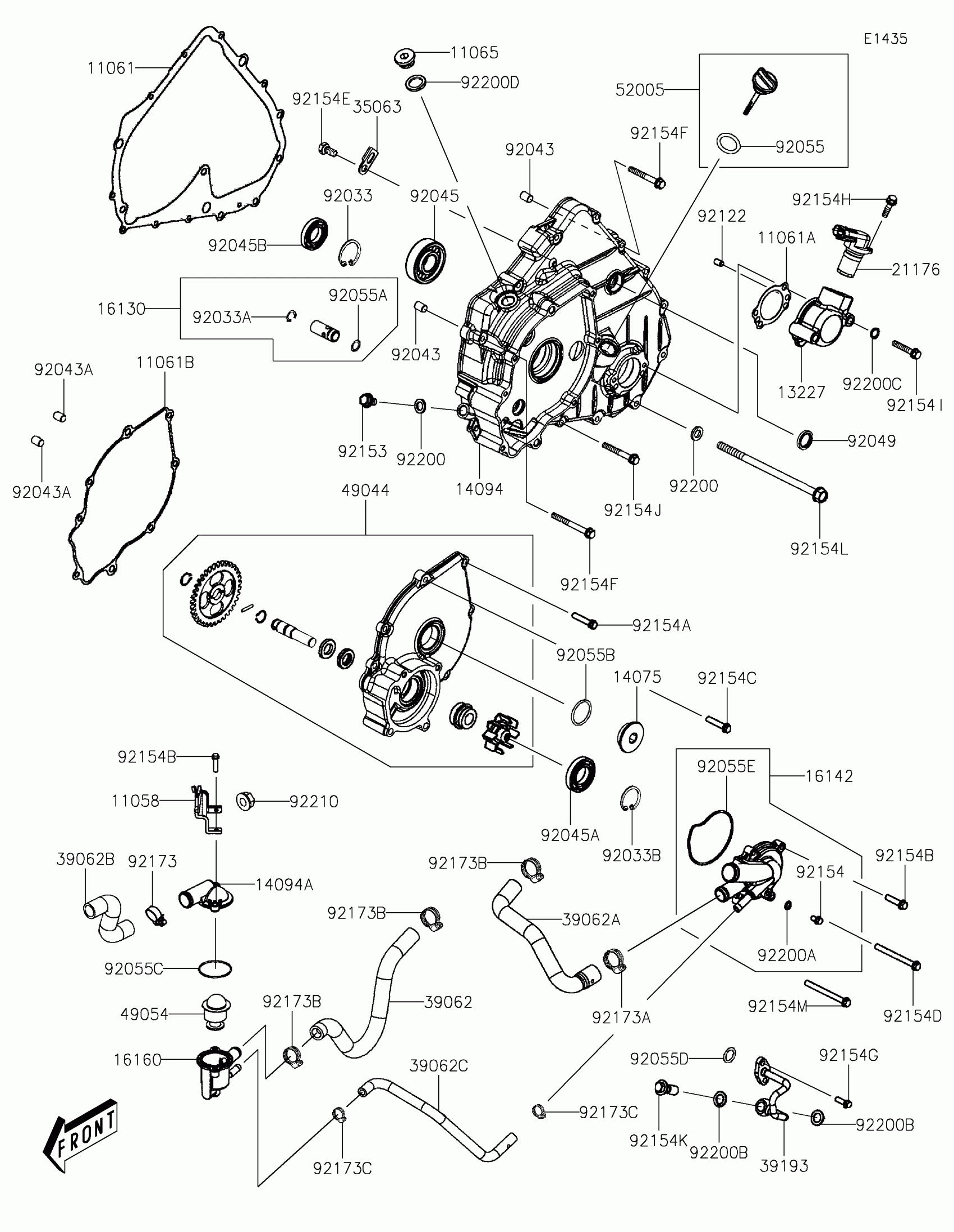

Kawasaki Brute Force 450 Left Engine Cover(s) Diagram
#
11058
BRACKET,THERMOSTAT
11058-Y006
$10.40
11061
GASKET,LH CRANKCASE
11061-Y071
$33.63
11061A
GASKET,SENSOR HOUSING
11061-Y074
$2.47
11061B
GASKET
11061-Y085
$21.26
11065
CAP,ACG
11065-Y053
$8.19
13227
HOUSING,SPEED SENSOR
13227-Y001
$20.38
14075
CAP-ASSY,M.BLACK
14075-Y003-931
$8.47
14094
COVER,CRANKCASE,LH
14094-Y001
$222.32
14094A
COVER,THERMOSTAT
14094-Y007
$15.56
16130
VALVE-ASSY-RELIEF,OIL
16130-Y002
$37.97
16142
COVER-PUMP,WATER
16142-Y003
$51.06
16160
BODY,THERMOSTAT
16160-Y006
$35.88
21176
SENSOR,SPEED
21176-Y010
$85.83
35063
STAY,ACG STATOR
35063-Y050
$3.31
39062
HOSE-COOLING
39062-Y026
$25.14
39062A
HOSE-COOLING
39062-Y027
$25.16
39062B
HOSE-COOLING
39062-Y029
$50.29
39062C
HOSE-COOLING
39062-Y031
$17.49
39193
PIPE-OIL
39193-Y002
$50.05
49044
PUMP-WATER
49044-Y003
$134.23
49054
THERMOSTAT
49054-Y005
$57.43
52005
GAUGE,OIL LEVEL
52005-Y007
$3.63
92033
RING-SNAP
92033-Y027
$3.49
92033A
RING-SNAP,12MM
92033-Y058
$1.70
92033B
RING-SNAP,19MM
92033-Y059
$4.14
92043
PIN,12X20
92043-Y027
$2.46
92043A
PIN,DOWEL,8X12
92043-Y056
$1.88
92045
BEARING-BALL,6304
92045-Y016
$26.53
92045A
BEARING-BALL,6800
92045-Y063
$24.45
92045B
BEARING-BALL,CONRAD S/R(16005)
92045-Y068
$43.36
92049
SEAL-OIL,12X22X9
92049-Y055
$7.91
92055
RING-O,18X3
92055-Y011
$1.02
92055A
RING-O,15.5X1.5
92055-Y038
$0.85
92055B
RING-O,27.4X2.4
92055-Y041
$1.48
92055C
RING-O,48.3X2
92055-Y059
$4.77
92055D
RING-O,10.77X2.62
92055-Y078
$1.78
92055E
RING-O,WATER PUMP
92055-Y080
$10.42
92122
ROLLER,6X10
92122-Y006
$2.06
92153
BOLT,FLANGE,8X12
92153-Y031
$1.90
92154
BOLT,FLANGE,6X10
92154-Y013
$1.48
92154A
BOLT,6X20
92154-Y057
$1.71
92154B
BOLT,FLANGE,6X25
92154-Y066
$2.39
92154C
BOLT,FLANGE,6X30
92154-Y107
$0.69
92154D
BOLT,FLANGE,6X70
92154-Y108
$5.03
92154E
BOLT,HEX,5X12
92154-Y111
$2.48
92154F
BOLT,FLANGED,6X50
92154-Y126
$2.48
92154G
BOLT,FLANGE,6X18
92154-Y132
$2.60
92154H
BOLT,FLANGE,6X16
92154-Y134
$2.60
92154I
BOLT,FLANGE,6X45
92154-Y135
$5.03
92154J
BOLT,FLANGE,6X40
92154-Y209
$6.91
92154K
BOLT
92154-Y235
$3.74
92154L
BOLT,FLANGED,8X140
92154-Y245
$12.42
92154M
BOLT,FLANGED,6X65
92154-Y258
$5.13
92173
CLAMP
92173-Y031
$5.50
92173A
CLAMP
92173-Y042
$3.86
92173B
CLAMP
92173-Y052
$4.64
92173C
CLAMP
92173-Y067
$6.91
92200
WASHER,8MM
92200-Y010
$0.79
92200A
WASHER,6MM
92200-Y024
$0.96
92200B
WASHER
92200-Y113
$1.70
92200C
WASHER
92200-Y122
$5.71
92200D
WASHER,16X22X2
92200-Y125
$2.17
92210
NUT,6MM
92210-Y026
$1.40
