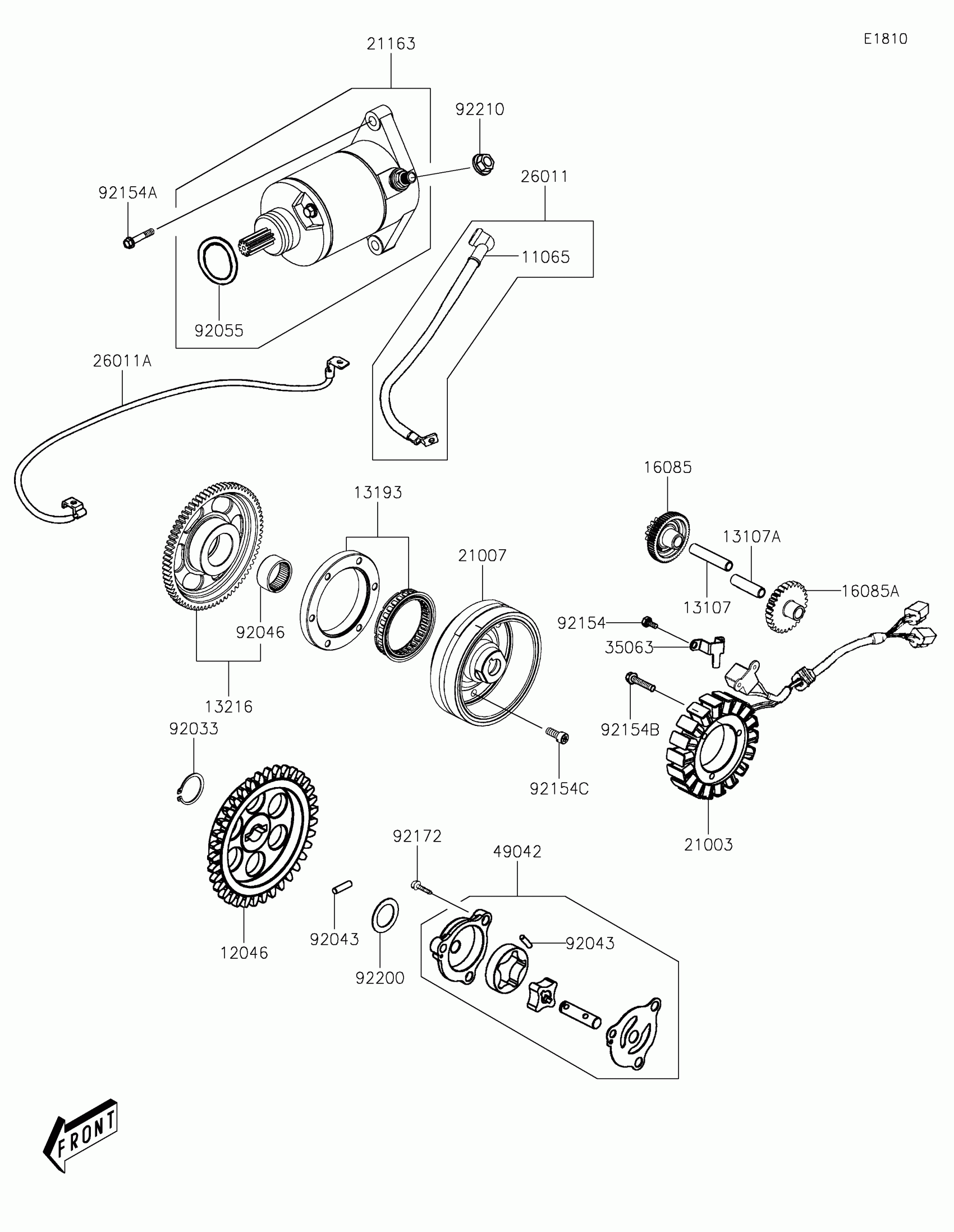

Kawasaki Brute Force 450 Generator Diagram

#

Description
Price

11065

CAP,TERMINAL

11065-Y048

$4.14

12046

SPROCKET,OIL PUMP DRIVEN

12046-Y009

$30.37

13107

SHAFT,STARTER REDUCTION

13107-Y041

$6.18

13107A

SHAFT,STARTER REDUCTION

13107-Y042

$6.18

13193

CLUTCH-ASSY-ONEWAY

13193-Y004

$163.89

13216

GEAR-COMP,STARTING CLUTCH

13216-Y009

$99.96

16085

GEAR,STARTER REDUCTION

16085-Y026

$49.39

16085A

GEAR,STARTER REDUCTION

16085-Y027

$36.96

21003

STATOR,D406

21003-Y011

$135.30

21007

ROTOR,D406

21007-Y011

$116.50

21163

STARTER-ELECTRIC

21163-Y008

$227.19

26011

WIRE-LEAD,START MOTOR

26011-Y020

$52.74

26011A

WIRE-LEAD,EARTH

26011-Y022

$59.55

35063

STAY,STATOR

35063-Y049

$3.63

49042

PUMP-OIL

49042-Y007

$58.20

92033

RING-SNAP,10MM

92033-Y019

$1.23

92043

PIN,DOWEL,4X16

92043-Y059

$2.23

92046

BEARING-NEEDLE,31X39X18

92046-Y014

$60.86

92055

RING-O,24.4X3.1

92055-Y025

$2.53

92154

BOLT,HEX,5X12

92154-Y111

$2.48

92154A

BOLT,FLANGE,6X28

92154-Y255

$1.91

92154B

BOLT,FLANGE,6X32

92154-Y256

$4.91

92154C

BOLT,SOCKET,8X20

92154-Y261

$3.04

92172

SCREW,PAN,6X25

92172-Y097

$10.15

92200

WASHER,10.5MM

92200-Y100

$1.97

92210

NUT,6MM

92210-Y039

$0.96
