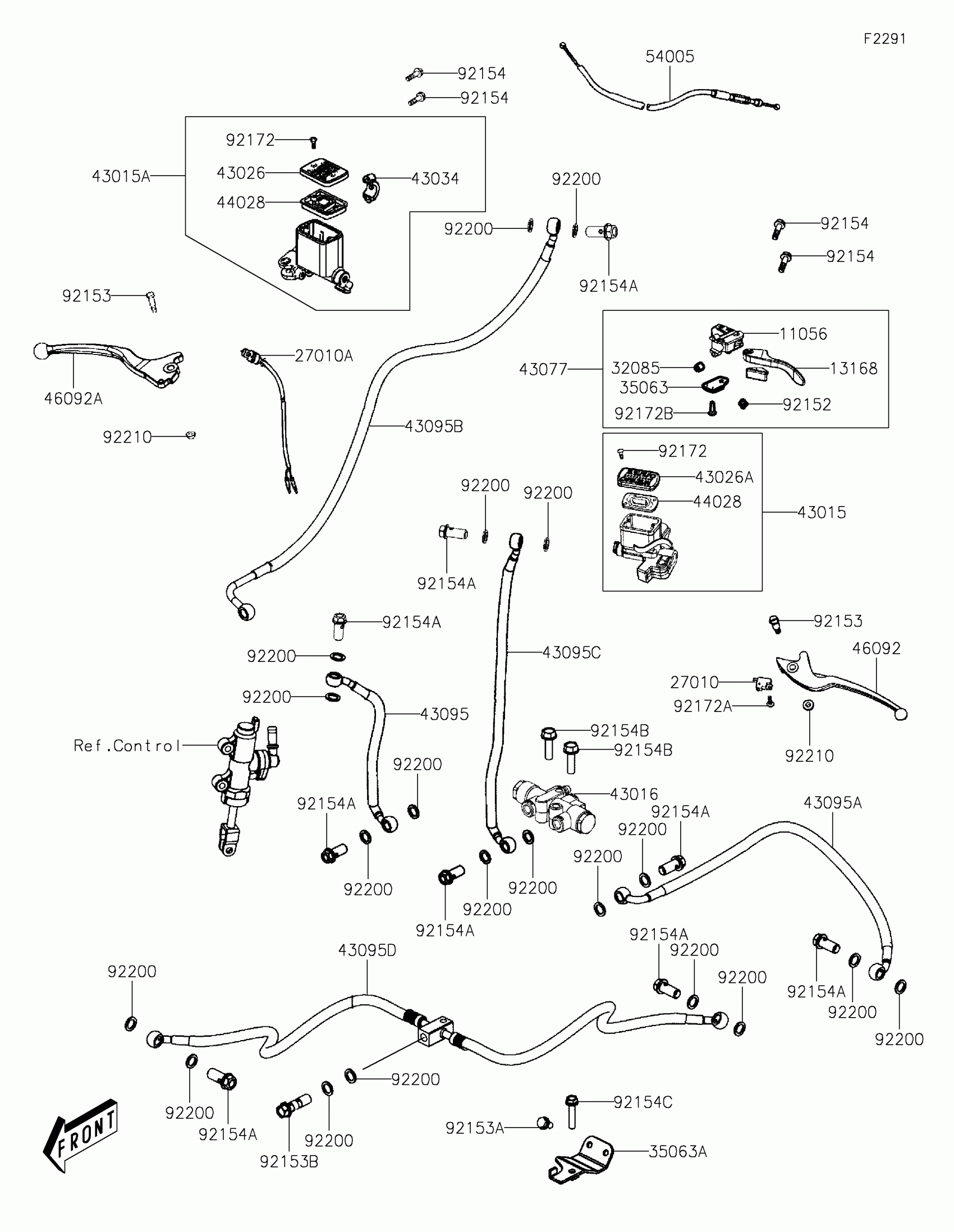

Kawasaki Brute Force 450 Front Master Cylinder Diagram

#

Description
Price

11056

BRACKET,BRAKE LEVER

11056-Y008

$32.75

13168

LEVER,BRAKE

13168-Y002

$29.16

27010

SWITCH,STOP

27010-Y004

$15.33

27010A

SWITCH,FR,STOP

27010-Y025

$19.36

32085

STOPPER,BRAKE LEVER

32085-Y004

$3.49

35063

STAY,BRAKE LEVER

35063-Y017

$3.71

35063A

STAY

35063-Y052

$7.55

43015

CYLINDER-ASSY-MASTER,RR

43015-Y009

$123.56

43015A

CYLINDER-ASSY-MASTER,FR

43015-Y010

$107.98

43016

CYLINDER-MASTER

43016-Y001

$175.27

43026

CAP-BRAKE

43026-Y002

$15.54

43026A

CAP-BRAKE

43026-Y005

$5.02

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-Y001

Unavailable

43077

LEVER-ASSY-BRAKE

43077-Y001

$77.74

43095

HOSE-BRAKE

43095-Y024

$91.32

43095A

HOSE-BRAKE

43095-Y025

$132.67

43095B

HOSE-BRAKE

43095-Y026

$151.45

43095C

HOSE-BRAKE

43095-Y027

$206.60

43095D

HOSE-BRAKE

43095-Y028

$274.92

44028

DIAPHRAGM

44028-Y001

$11.25

46092

LEVER-GRIP,LH

46092-Y011

$25.33

46092A

LEVER-GRIP,RH

46092-Y012

$54.76

54005

CABLE-BRAKE,PARKING

54005-Y006

$37.92

92152

COLLAR

92152-Y026

$2.28

92153

BOLT

92153-Y008

$1.02

92153A

BOLT,FLANGE,6X12

92153-Y023

$0.76

92153B

BOLT,10X22

92153-Y062

$3.74

92154

BOLT,FLANGE,6X22

92154-Y067

$1.87

92154A

BOLT,10X22

92154-Y114

$5.03

92154B

BOLT,FLANGE,6X40

92154-Y131

$1.15

92154C

BOLT,FLANGE,6X30

92154-Y147

$4.39

92172

SCREW,4X12

92172-Y011

$1.90

92172A

SCREW,4X12

92172-Y014

$0.76

92172B

SCREW,6X12

92172-Y048

$1.74

92200

WASHER

92200-Y015

$3.49

92210

NUT,6MM

92210-Y026

$1.40
