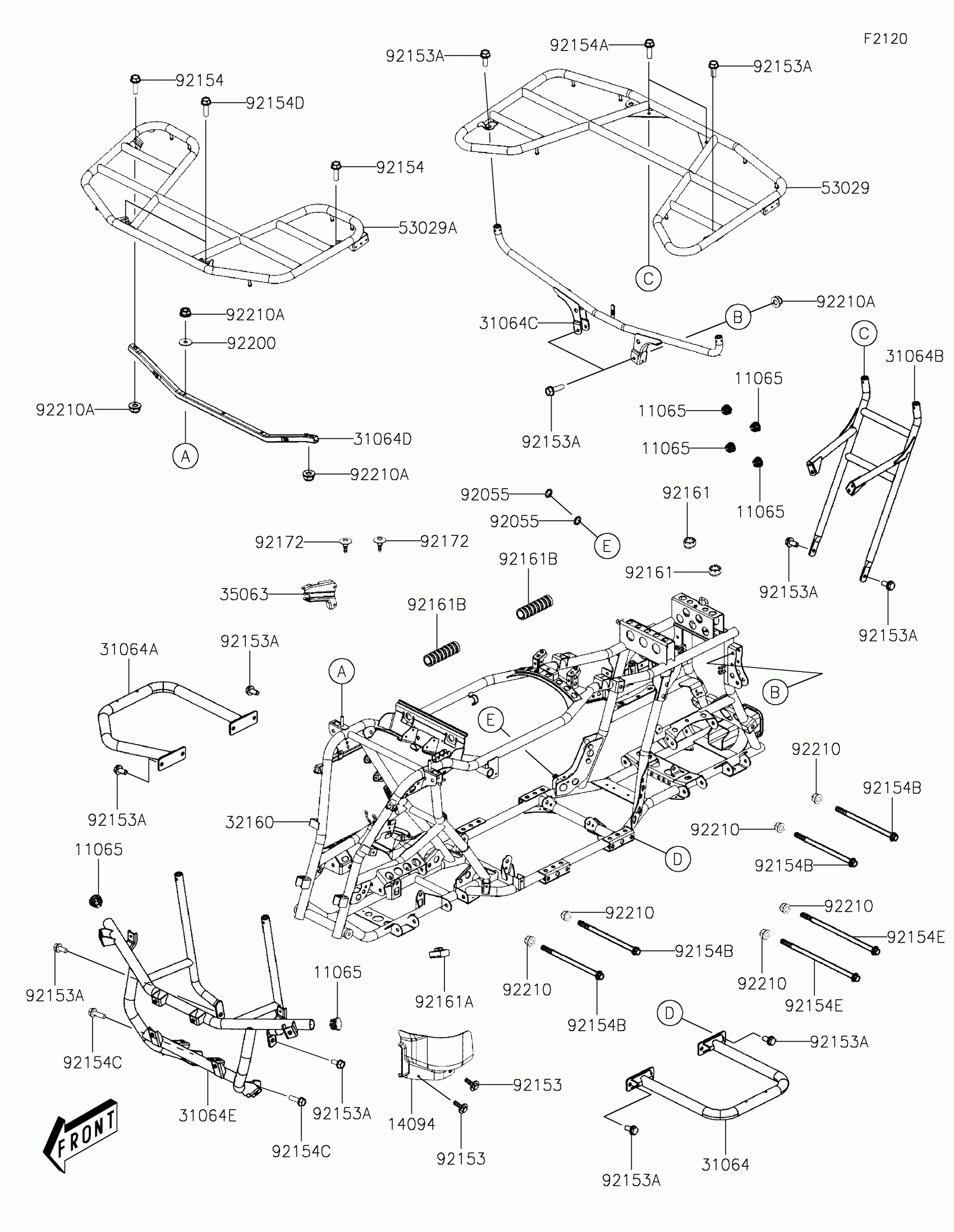

Kawasaki Brute Force 450 Frame Diagram

#

Description
Price

11065

CAP,PIPE

11065-Y052

$14.11

14094

COVER,HOSE,S.BLACK

14094-Y015-933

$15.09

31064

PIPE-COMP,FOOTREST,LH

31064-Y020

$52.74

31064A

PIPE-COMP,FOOTREST,RH

31064-Y021

$52.74

31064B

PIPE-COMP,MOUNT-REAR RACK

31064-Y022

$145.30

31064C

PIPE-COMP,RACK MOUNT

31064-Y023

$73.78

31064D

PIPE-COMP,RR MOUNT-FR RACK

31064-Y024

$56.94

31064E

PIPE-COMP,FR BUMPER

31064-Y025

$215.78

32160

FRAME-COMP,MAIN

32160-Y013

$926.78

35063

STAY,PADEL RETURN

35063-Y055

$11.93

53029

CARRIER,RR

53029-Y006

$225.49

53029A

CARRIER,FR

53029-Y007

$229.66

92055

RING-O,10.82X1.778

92055-Y087

$2.04

92153

BOLT,6X16

92153-Y018

$1.30

92153A

BOLT,FLANGE,8X16

92153-Y032

$1.47

92154

BOLT,FLANGE,8X25

92154-Y046

$2.53

92154A

BOLT,FLANGE,8X30

92154-Y198

$4.37

92154B

BOLT,FLANGE,10X110

92154-Y199

$8.63

92154C

BOLT,FLANGE,8X42

92154-Y248

$2.90

92154D

BOLT,FLANGE,8X50

92154-Y249

$3.76

92154E

BOLT,FLANGE,10X185

92154-Y253

$13.15

92161

DAMPER

92161-Y005

$1.74

92161A

DAMPER

92161-Y062

$2.04

92161B

DAMPER,FRAME

92161-Y065

$16.04

92172

SCREW,5MM

92172-Y043

$2.28

92200

WASHER,PLAIN,8X26

92200-Y110

$1.70

92210

NUT,10MM

92210-Y009

$3.12

92210A

NUT,8MM

92210-Y076

$0.68
