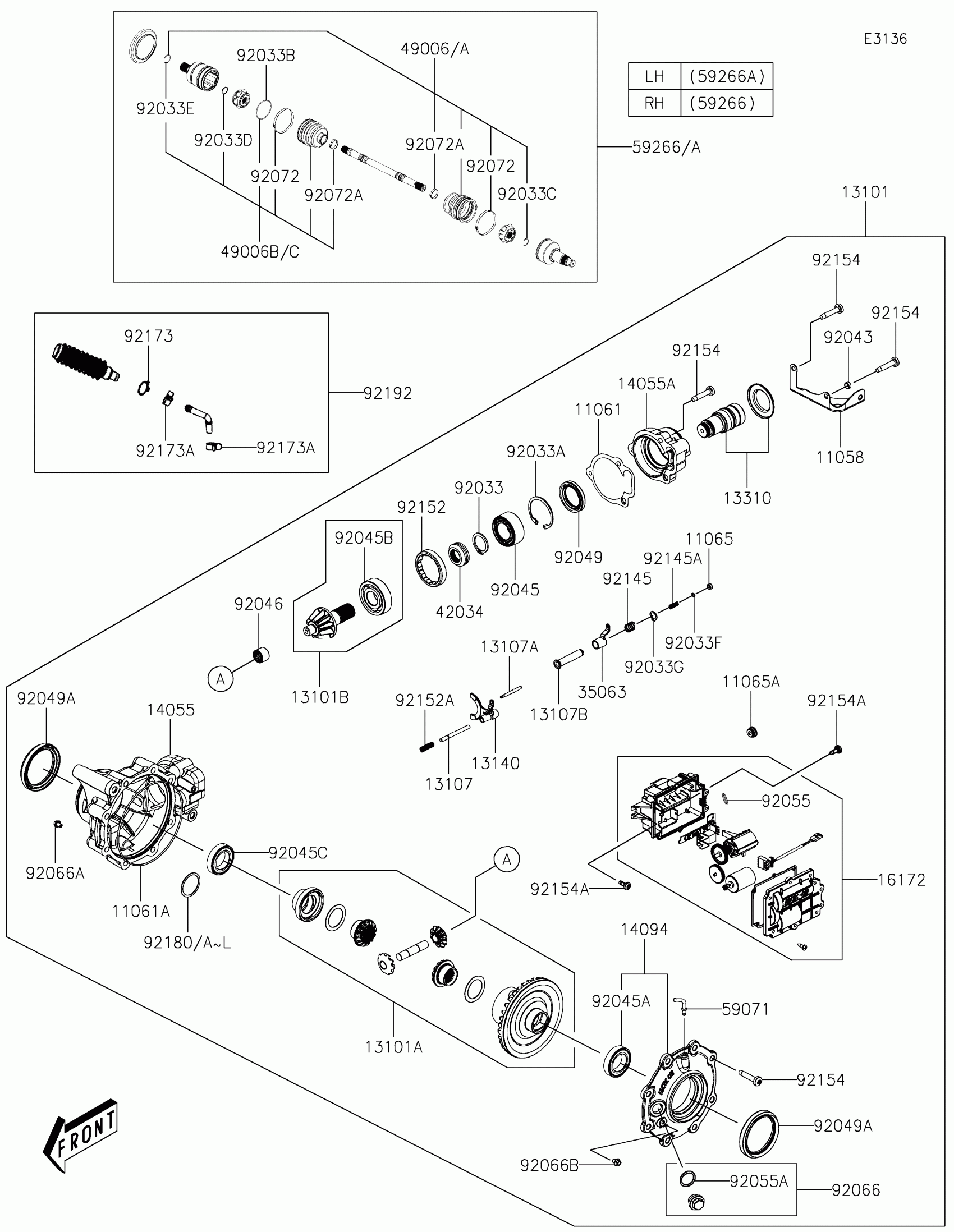

Kawasaki Brute Force 450 Drive Shaft-Front Diagram

#

Description
Price

11058

BRACKET,ACTUATOR

11058-Y003

$17.07

11061

GASKET,FR GEAR HOUSING

11061-Y083

$17.25

11061A

GASKET,FR GEAR HOUSING

11061-Y084

$10.68

11065

CAP

11065-Y049

$2.90

11065A

CAP

11065-Y054

$10.29

13101

GEAR-ASSY,FR

13101-Y007

$942.06

13101A

GEAR-ASSY,RING

13101-Y008

$361.57

13101B

GEAR-ASSY,FR BEVEL

13101-Y010

$82.00

13107

SHAFT

13107-Y045

$39.51

13107A

SHAFT

13107-Y046

$13.46

13107B

SHAFT

13107-Y047

$109.85

13140

FORK-SHIFT

13140-Y006

$50.75

13310

SHAFT-ASSY,INPUT,FR

13310-Y008

$65.14

14055

CASE-GEAR,FR

14055-Y007

$226.36

14055A

CASE-GEAR,FR

14055-Y009

$49.25

14094

COVER,FR GEAR

14094-Y009

$249.43

16172

ACTUATOR

16172-Y001

$248.97

35063

STAY

35063-Y051

$23.23

42034

COUPLING,DRIVE

42034-Y006

$52.40

49006

BOOT,FR,LH,OUTSIDE

49006-Y017

$57.58

49006A

BOOT,FR,RH,OUTSIDE

49006-Y018

$46.88

49006B

BOOT,FR,LH,INSIDE

49006-Y019

$65.58

49006C

BOOT,FR,RH,INSIDE

49006-Y020

$48.61

59071

JOINT,BREATHER

59071-Y011

$8.72

59266

JOINT-BALL,FR,RH

59266-Y010

$298.26

59266A

JOINT-BALL,FR,LH

59266-Y011

$298.26

92033

RING-SNAP

92033-Y047

$6.67

92033A

RING-SNAP

92033-Y048

$8.46

92033B

RING-SNAP

92033-Y049

$7.38

92033C

RING-SNAP

92033-Y050

$6.67

92033D

RING-SNAP

92033-Y051

$14.83

92033E

RING-SNAP

92033-Y052

$6.14

92033F

RING-SNAP

92033-Y054

$5.61

92033G

RING-SNAP,12MM

92033-Y055

$2.04

92043

PIN,DOWEL

92043-Y050

$8.46

92045

BEARING-BALL

92045-Y054

$55.69

92045A

BEARING-BALL

92045-Y055

$125.88

92045B

BEARING-BALL,6305

92045-Y062

$21.60

92045C

BEARING-BALL,6008Z

92045-Y065

$56.94

92046

BEARING-NEEDLE

92046-Y012

$22.99

92049

SEAL-OIL,38X55X14

92049-Y051

$21.36

92049A

SEAL-OIL,48X84X9

92049-Y053

$38.70

92055

RING-O,13X1.5

92055-Y036

$2.45

92055A

RING-O,20X2.5

92055-Y088

$4.65

92066

PLUG,DRAIN

92066-Y023

$43.21

92066A

PLUG,DRAIN

92066-Y024

$22.42

92066B

PLUG,OIL LEVEL

92066-Y025

$18.59

92072

BAND,BOOT

92072-Y025

$14.15

92072A

BAND,BOOT

92072-Y027

$12.10

92145

SPRING

92145-Y086

$2.04

92145A

SPRING

92145-Y087

$2.31

92152

COLLAR,LOCK,M64X1.5

92152-Y084

$33.99

92152A

COLLAR

92152-Y086

$2.86

92154

BOLT,FLANGE,8X40

92154-Y113

$3.74

92154A

BOLT,6X12

92154-Y238

$10.29

92173

CLAMP

92173-Y094

$2.04

92173A

CLAMP

92173-Y095

$2.47

92180

SHIM,41X49X1.0

92180-Y069

Unavailable

92180A

SHIM,41X49X1.1

92180-Y070

Unavailable

92180B

SHIM,41X49X1.2

92180-Y071

Unavailable

92180C

SHIM,41X49X1.3

92180-Y072

Unavailable

92180D

SHIM,41X49X1.4

92180-Y073

Unavailable

92180E

SHIM,41X49X1.5

92180-Y074

Unavailable

92180F

SHIM,41X49X1.6

92180-Y075

Unavailable

92180G

SHIM,41X49X1.7

92180-Y076

Unavailable

92180H

SHIM,61X69X1.3

92180-Y077

Unavailable

92180I

SHIM,61X69X1.4

92180-Y078

Unavailable

92180J

SHIM,61X69X1.5

92180-Y079

Unavailable

92180K

SHIM,61X69X1.6

92180-Y080

Unavailable

92180L

SHIM,61X69X1.7

92180-Y081

Unavailable

92192

TUBE,BREATHER

92192-Y084

$16.38
