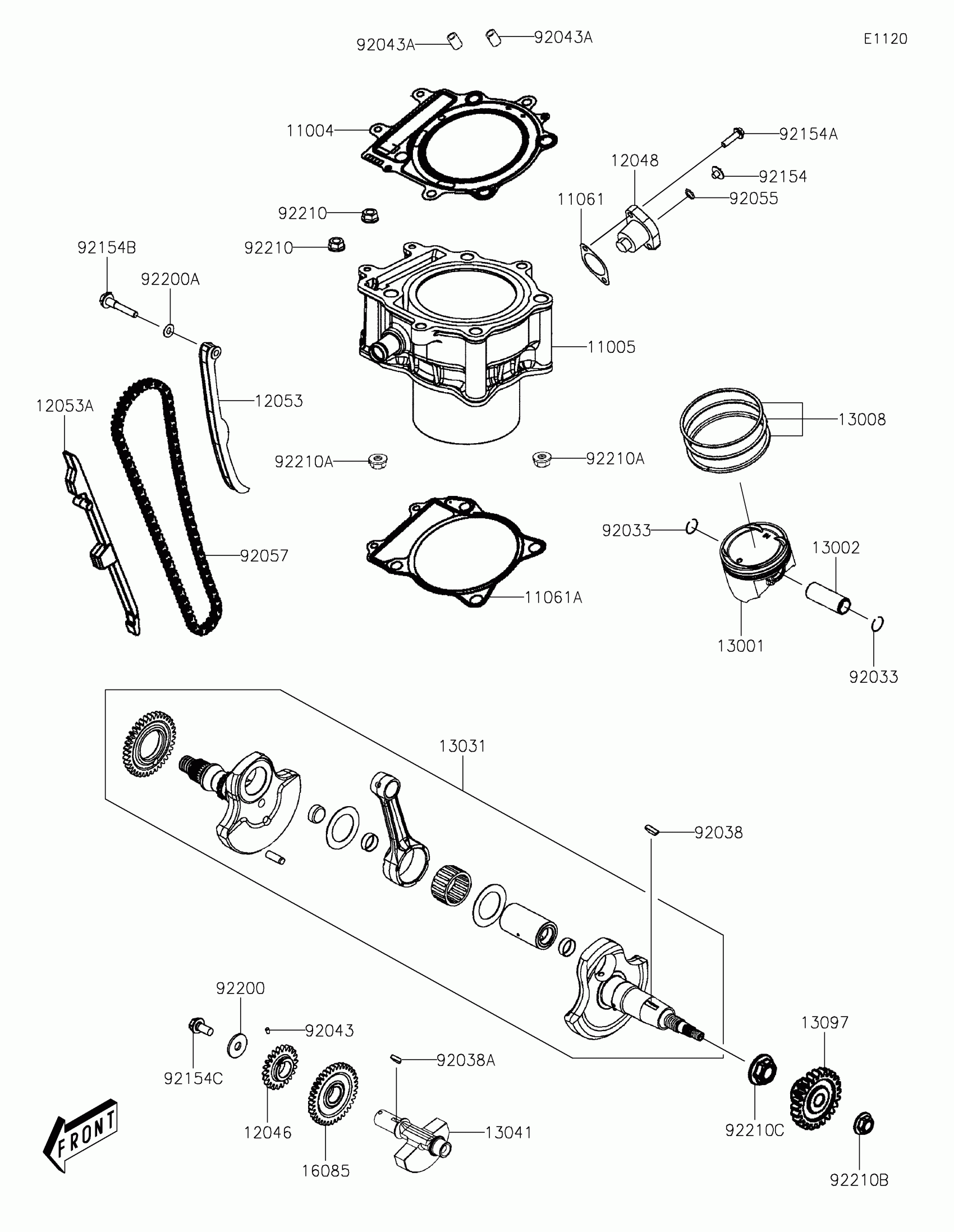

Kawasaki Brute Force 450 Cylinder/Piston(s) Diagram

#

Description
Price

11004

GASKET-HEAD

11004-Y007

$49.30

11005

CYLINDER-ENGINE

11005-Y007

$233.70

11061

GASKET,TENSIONER LIFTER

11061-Y070

$2.78

11061A

GASKET,CYLINDER BASE

11061-Y075

$36.61

12046

SPROCKET,BALANCER

12046-Y008

$35.08

12048

TENSIONER-ASSY

12048-Y005

$45.16

12053

GUIDE-CHAIN,TENSIONER

12053-Y013

$43.17

12053A

GUIDE-CHAIN,CAM

12053-Y014

$29.31

13001

PISTON-ENGINE

13001-Y007

$52.80

13002

PIN-PISTON

13002-Y007

$13.49

13008

RING-SET-PISTON

13008-Y007

$59.83

13031

CRANKSHAFT-COMP

13031-Y007

$329.35

13041

BALANCER

13041-Y001

$83.35

13097

GEAR-PRIMARY SPUR

13097-Y001

$64.17

16085

GEAR,BALANCER

16085-Y019

$54.32

92033

RING-SNAP

92033-Y062

$2.17

92038

KEY,WOODRUFF

92038-Y004

$1.95

92038A

KEY,WOODRUFF

92038-Y005

$2.17

92043

PIN,DOWEL,4X65

92043-Y015

$1.02

92043A

PIN,12X20

92043-Y027

$2.46

92055

RING-O,1.5X9.5

92055-Y010

$1.02

92057

CHAIN,CAM

92057-Y007

$73.49

92154

BOLT,6X6

92154-Y122

$2.60

92154A

BOLT,FLANGE,6X25

92154-Y130

$0.68

92154B

BOLT,CAM CHAIN TENSIONER

92154-Y233

$5.74

92154C

BOLT,FLANGED,10X20

92154-Y247

$5.40

92200

WASHER,10.2X30X2.5

92200-Y107

$4.90

92200A

WASHER,8MM

92200-Y123

$1.70

92210

NUT,6MM

92210-Y027

$0.79

92210A

NUT,8MM

92210-Y028

$0.79

92210B

NUT,10MM

92210-Y029

$1.58

92210C

NUT

92210-Y085

$22.76
