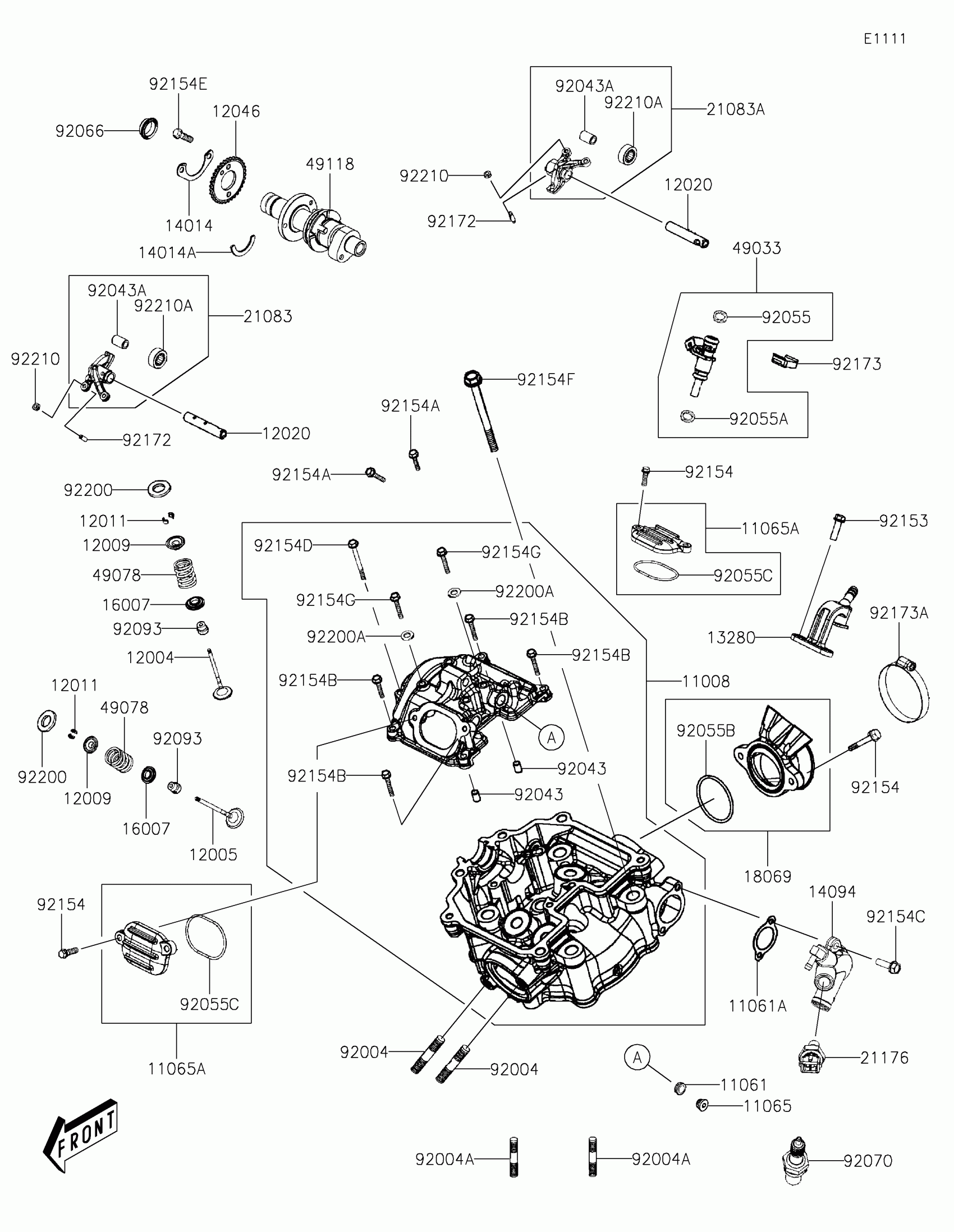

Kawasaki Brute Force 450 Cylinder Head Diagram

#

Description
Price

11008

HEAD-COMP-CYLINDER

11008-Y009

$754.65

11061

GASKET

11061-Y064

$3.92

11061A

GASKET,WATER COVER

11061-Y076

$2.04

11065

CAP

11065-Y041

$12.96

11065A

CAP,ROCKER CASE

11065-Y045

$17.93

12004

VALVE-INTAKE

12004-Y008

$24.71

12005

VALVE-EXHAUST

12005-Y007

$47.91

12009

RETAINER-VALVE SPRING

12009-Y004

$11.07

12011

COLLET

12011-Y001

$7.12

12020

SHAFT-ROCKER

12020-Y010

$16.61

12046

SPROCKET,CAMSHAFT

12046-Y007

$51.53

13280

HOLDER

13280-Y026

$14.34

14014

PLATE-POSITION

14014-Y001

$3.69

14014A

PLATE-POSITION

14014-Y002

$2.18

14094

COVER,WATER PUMP

14094-Y004

$31.81

16007

SEAT-SPRING

16007-Y009

$6.66

18069

HOLDER-EXHAUST PIPE

18069-Y001

$56.94

21083

ARM,ROCKER,EX

21083-Y006

$85.75

21083A

ARM,ROCKER,IN

21083-Y007

$85.75

21176

SENSOR,WATER TEMP

21176-Y011

$49.28

49033

NOZZLE-INJECTION

49033-Y004

$137.16

49078

SPRING-ENGINE VALVE

49078-Y011

$13.02

49118

CAMSHAFT-COMP

49118-Y007

$158.36

92004

STUD,8X40

92004-Y010

$3.71

92004A

STUD,8X40

92004-Y019

$9.61

92043

PIN,8X14

92043-Y012

$1.88

92043A

PIN,ROCKER ARM

92043-Y025

$15.82

92055

RING-O,BLACK

92055-Y053

$12.82

92055A

RING-O,GREEN

92055-Y054

$12.82

92055B

RING-O,44.12X2.62

92055-Y084

$2.90

92055C

RING-O,ROCKER CASE

92055-Y085

$5.30

92066

PLUG

92066-Y018

$24.32

92070

PLUG-SPARK,CR7E

92070-Y004

$8.25

92093

SEAL,VALVE STEM

92093-Y049

$7.93

92153

BOLT,FLANGE,6X16

92153-Y025

$0.76

92154

BOLT,6X20

92154-Y057

$1.71

92154A

BOLT,FLANGE,6X25

92154-Y066

$2.39

92154B

BOLT,FLANGE,6X30

92154-Y107

$0.69

92154C

BOLT,FLANGE,6X18

92154-Y132

$2.60

92154D

BOLT,FLANGE,6X110

92154-Y133

$5.03

92154E

BOLT,HEX,6X12

92154-Y189

$2.37

92154F

BOLT,FLANGED,10X170

92154-Y236

$21.05

92154G

BOLT,FLANGED,6X60

92154-Y257

$1.70

92172

SCREW

92172-Y003

$4.52

92173

CLAMP,INJECTOR

92173-Y053

$6.47

92173A

CLAMP,D60

92173-Y091

$14.34

92200

WASHER,21X10X2.2

92200-Y088

$3.75

92200A

WASHER

92200-Y121

$2.47

92210

NUT

92210-Y004

$1.46

92210A

NUT

92210-Y059

$45.83
