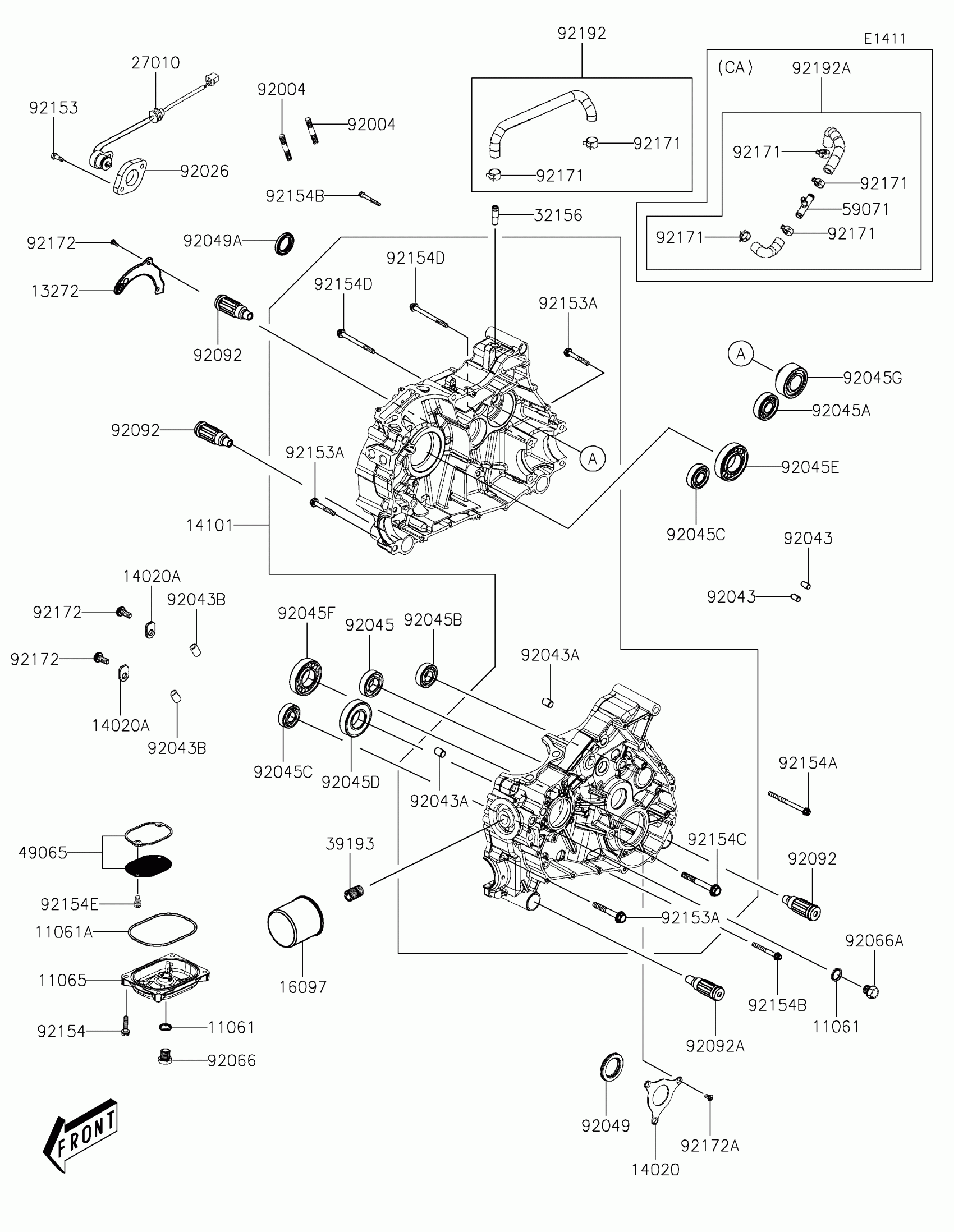

Kawasaki Brute Force 450 Crankcase Diagram

#

Description
Price

11061

GASKET

11061-Y064

$3.92

11061A

GASKET,OIL STRAINER CAP

11061-Y077

$9.66

11065

CAP,OIL STRAINER

11065-Y046

$24.01

13272

PLATE,OIL GUIDE

13272-Y045

$7.38

14020

RETAINER

14020-Y001

$7.93

14020A

RETAINER

14020-Y002

$2.18

14101

SET-CRANKCASE

14101-Y001

$1,413.65

16097

FILTER-ASSY-OIL

16097-Y001

$10.79

27010

SWITCH,GEAR CHANGE

27010-Y026

$50.13

32156

PIPE,BREATHER

32156-Y001

$6.25

39193

PIPE-OIL

39193-Y001

$12.89

49065

FILTER-OIL

49065-Y001

$30.54

59071

JOINT,3WAY

59071-Y013

$42.92

92004

STUD,6X40

92004-Y013

$1.24

92026

SPACER,GEAR CHANGE SENSOR

92026-Y014

$3.31

92043

PIN,8X10

92043-Y026

$1.59

92043A

PIN,12X20

92043-Y027

$2.46

92043B

PIN,DOWEL

92043-Y058

$2.90

92045

BEARING-BALL,6205

92045-Y015

$21.58

92045A

BEARING-BALL,6304

92045-Y016

$26.53

92045B

BEARING-BALL,6204

92045-Y041

$25.51

92045C

BEARING-BALL,ESB204JR2C3

92045-Y057

$60.86

92045D

BEARING-BALL,6207LUAC3

92045-Y058

$70.26

92045E

BEARING-BALL,6207-9C3

92045-Y059

$57.20

92045F

BEARING-BALL,6207

92045-Y061

$19.48

92045G

BEARING-BALL,30X62X23.8

92045-Y066

$72.33

92049

SEAL-OIL,34X52X6

92049-Y054

$14.83

92049A

SEAL-OIL,30X44X7

92049-Y056

$13.49

92066

PLUG,DRAIN

92066-Y027

$11.70

92066A

PLUG,CRANKCASE

92066-Y028

$7.55

92092

BUSHING-RUBBER,ENGINE HANGER

92092-Y007

$27.86

92092A

BUSHING-RUBBER,ENG HANGER,LONG

92092-Y008

$34.90

92153

BOLT,FLANGE,5X22

92153-Y006

$0.79

92153A

BOLT,FLANGE,8X50

92153-Y037

$2.66

92154

BOLT,FLANGE,6X25

92154-Y066

$2.39

92154A

BOLT,FLANGE,6X70

92154-Y108

$5.03

92154B

BOLT,FLANGE,6X45

92154-Y135

$5.03

92154C

BOLT,FLANGE,8X60

92154-Y141

$4.39

92154D

BOLT,FLANGE,8X85

92154-Y196

$6.49

92154E

BOLT,5X12

92154-Y241

$9.19

92171

CLAMP

92171-Y022

$3.12

92172

SCREW,PAN,6X14

92172-Y099

$2.17

92172A

SCREW,6X16

92172-Y101

$2.17

92192

TUBE,CRANKCASE

92192-Y078

$36.34

92192A

TUBE,CRANKCASE

92192-Y086

$42.53

92171

CLAMP

92171-Y022

$3.12
