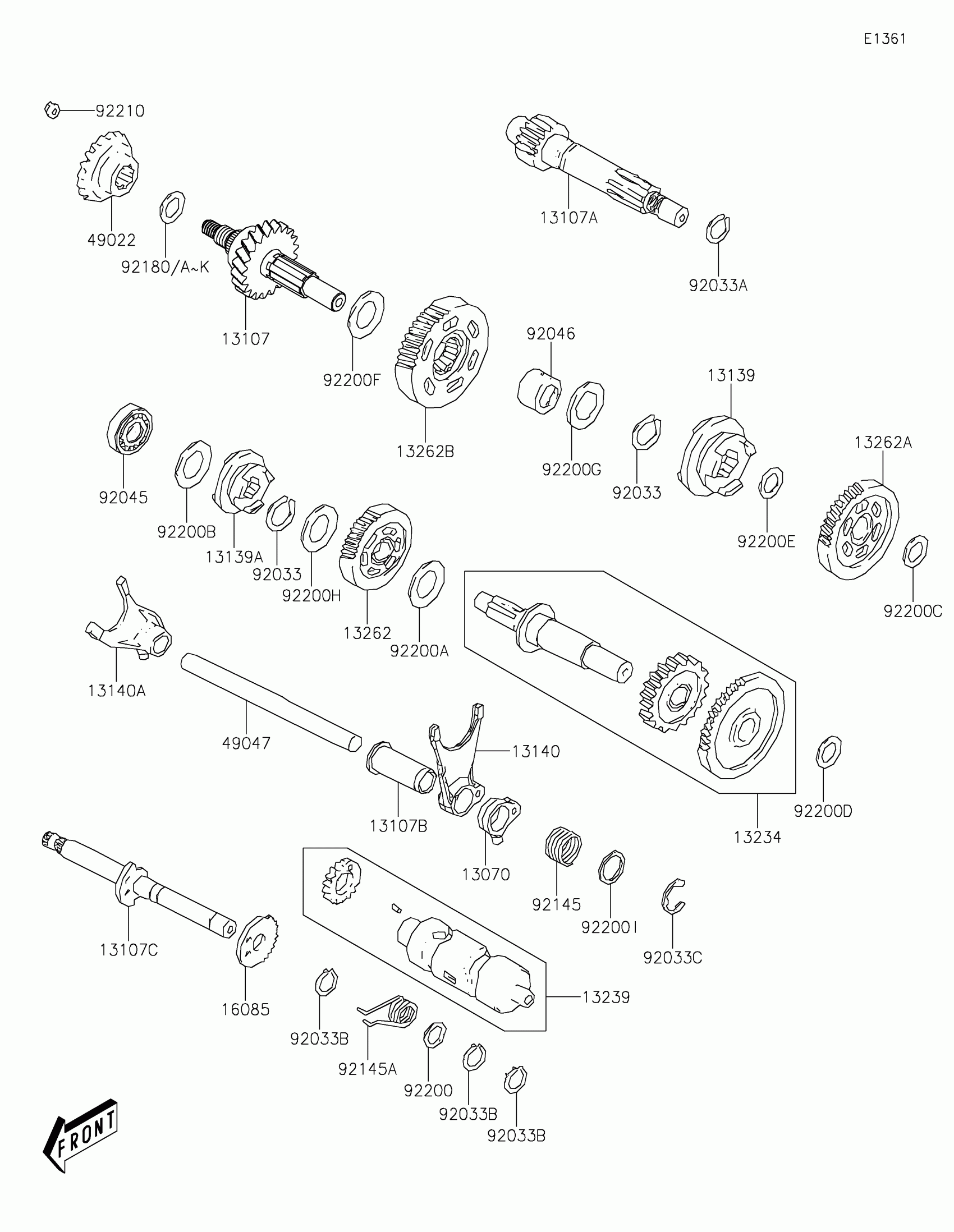

Kawasaki BRUTE FORCE® 300 Transmission Diagram
#
13070
GUIDE,FORK-SHIFT,RH
13070-Y002
$26.71
13107
SHAFT,MAIN
13107-Y011
$107.42
13107A
SHAFT,DRIVE
13107-Y012
$112.48
13107B
SHAFT,SHIFT FORK
13107-Y013
$28.95
13107C
SHAFT,CHANGE DRUM
13107-Y014
$38.25
13139
SHIFTER,REVERSE & LOWER
13139-Y001
$69.47
13139A
SHIFTER,FORWARD
13139-Y002
$78.84
13140
FORK-SHIFT,RH
13140-Y001
$56.87
13140A
FORK-SHIFT,LH
13140-Y002
$84.44
13234
SHAFT-COMP,COUNTER
13234-Y003
$234.69
13239
DRUM-ASSY-CHANGE
13239-Y001
$91.93
13262
GEAR,FORWARD
13262-Y004
$110.61
13262A
GEAR,BACKWARD
13262-Y005
$110.45
13262B
GEAR,LOWER DRIVEN
13262-Y006
$110.61
16085
GEAR,CHANGE LEVER
16085-Y010
$22.20
49022
GEAR-BEVEL,DRIVE
49022-Y003
$109.31
49047
ROD-SHIFT
49047-Y001
$12.34
92033
RING-SNAP,28MM
92033-Y022
$2.28
92033A
RING-SNAP,25MM
92033-Y023
$1.48
92033B
RING-SNAP,12MM
92033-Y024
$2.01
92033C
RING-SNAP,15MM
92033-Y025
$3.39
92045
BEARING-BALL,6303
92045-Y023
$22.00
92046
BEARING-NEEDLE
92046-Y004
$24.36
92145
SPRING,DRUM
92145-Y029
$3.71
92145A
SPRING,RETURN
92145-Y052
$4.73
92180
SHIM,DRIVEN,A,T=0.6
92180-Y013
Unavailable
92180A
SHIM,DRIVEN,B,T=0.65
92180-Y014
Unavailable
92180B
SHIM,DRIVEN,C,T=0.7
92180-Y015
Unavailable
92180C
SHIM,DRIVEN,D,T=0.75
92180-Y016
Unavailable
92180D
SHIM,DRIVEN,E,T=0.8
92180-Y017
Unavailable
92180E
SHIM,DRIVEN,F,T=0.85
92180-Y018
Unavailable
92180F
SHIM,DRIVEN,G,T=0.9
92180-Y019
Unavailable
92180G
SHIM,DRIVEN,H,T=0.95
92180-Y020
Unavailable
92180H
SHIM,DRIVEN,I,T=1.0
92180-Y021
Unavailable
92180I
SHIM,DRIVEN,J,T=1.05
92180-Y022
Unavailable
92180J
SHIM,DRIVEN,K,T=1.1
92180-Y023
Unavailable
92180K
SHIM,DRIVEN,L,T=1.15
92180-Y024
Unavailable
92200
WASHER,14X28X2
92200-Y026
$2.53
92200A
WASHER,25MM
92200-Y028
$4.54
92200B
WASHER,17.2MM
92200-Y029
$2.28
92200C
WASHER,20MM
92200-Y030
$3.09
92200D
WASHER,20MM
92200-Y031
$3.71
92200E
WASHER,30X20X3
92200-Y032
$4.27
92200F
WASHER,25MM
92200-Y033
$3.39
92200G
WASHER,25MM
92200-Y034
$3.49
92200H
WASHER,25X31X1.6
92200-Y035
$3.39
92200I
WASHER,17X22
92200-Y036
$0.96
92210
NUT,18MM
92210-Y041
$7.38
