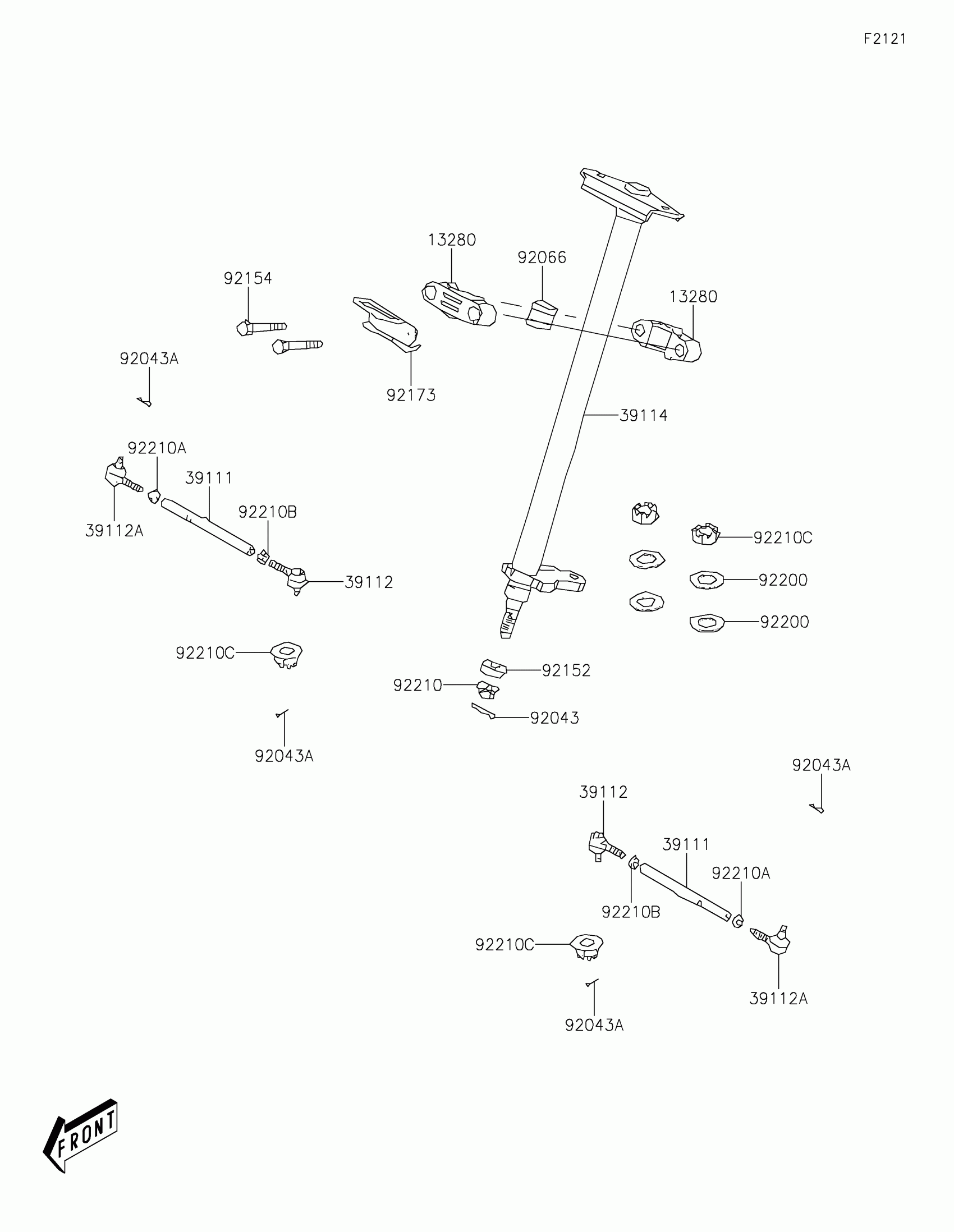

Kawasaki BRUTE FORCE® 300 Steering Shaft Diagram

Description

Price

13280

HOLDER,STEERING

13280-Y015

$9.08

39111

ROD-TIE

39111-Y002

$60.76

39112

RODEND-TIE

39112-Y005

$46.65

39112A

RODEND-TIE

39112-Y006

$46.65

39114

SHAFT-COMP-STRG

39114-Y002

$98.47

92043

PIN,3X25

92043-Y009

$0.76

92043A

PIN,2.5X25

92043-Y018

$1.23

92066

PLUG

92066-Y011

$6.45

92152

COLLAR

92152-Y019

$3.71

92154

BOLT,FANGE,8X60

92154-Y024

$3.71

92173

CLAMP,STEERING HOLDER

92173-Y012

$8.20

92200

WASHER,10MM

92200-Y047

$3.39

92210

NUT,14MM

92210-Y012

$7.28

92210A

NUT,10MM

92210-Y021

$1.90

92210B

NUT,10MM

92210-Y022

$1.90

92210C

NUT

92210-Y043

$5.24
