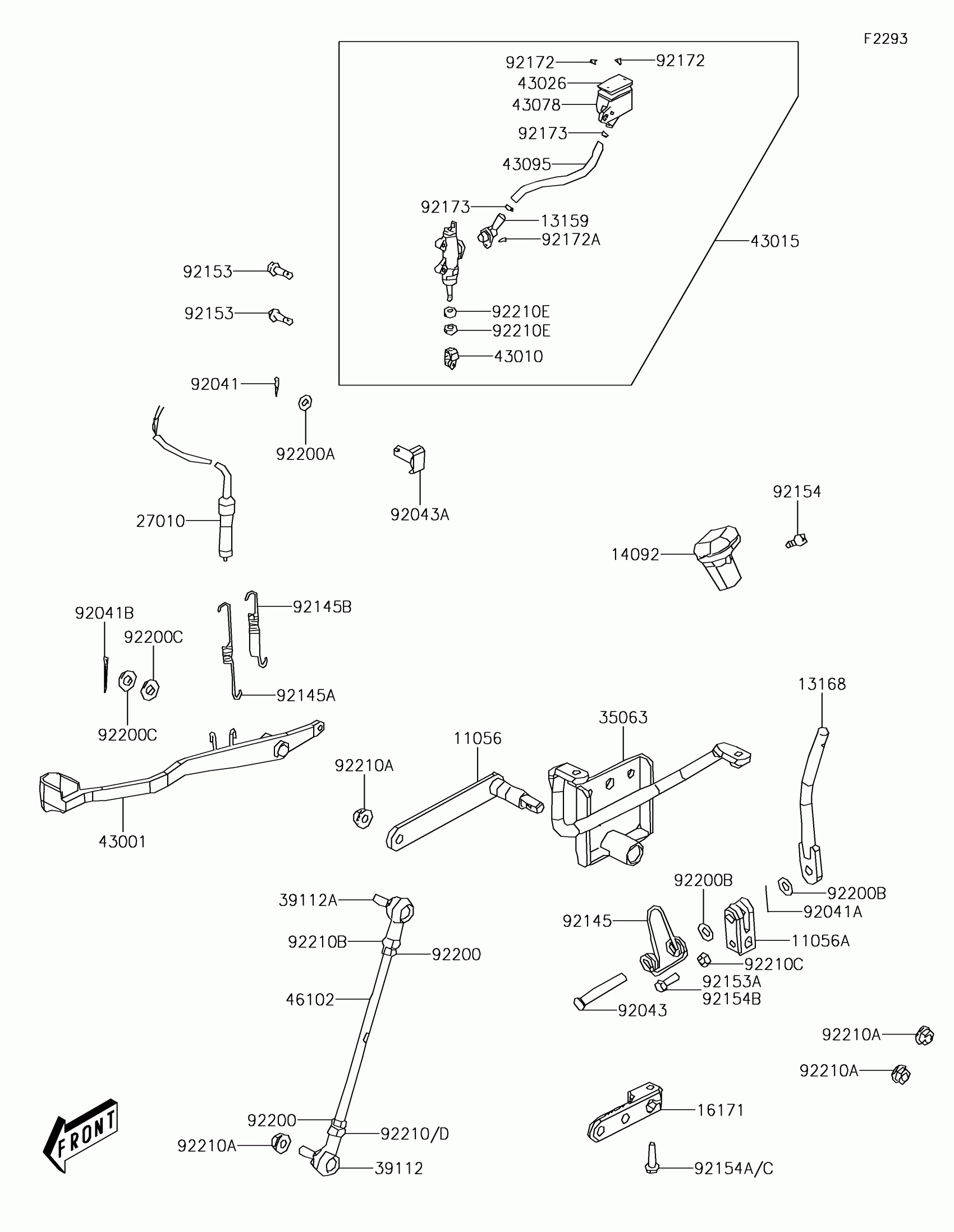

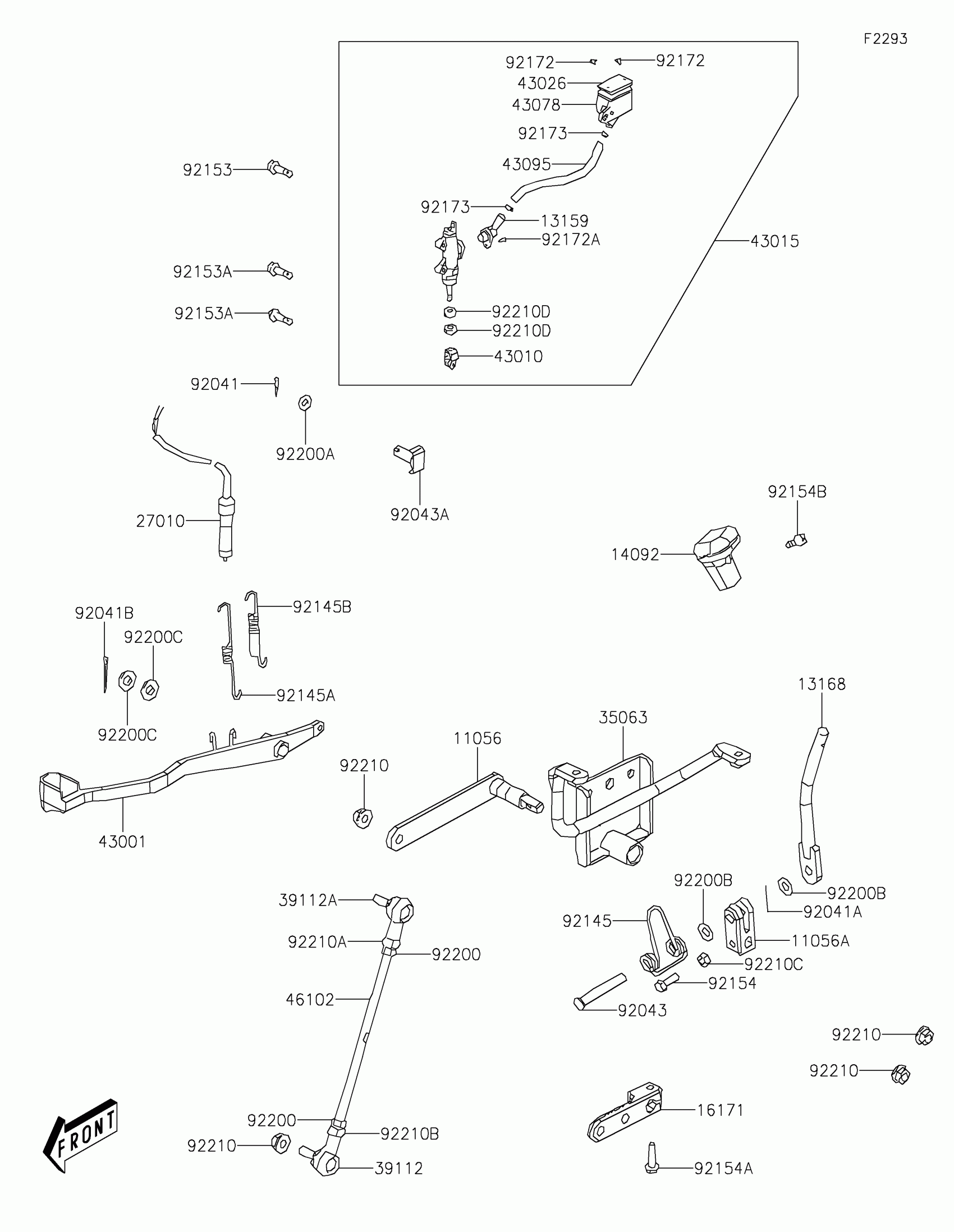

Kawasaki BRUTE FORCE® 300 Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET,CHANGE LEVER

11056-Y006

$49.75

11056A

BRACKET,CHANGE LEVER

11056-Y009

$45.97

13159

CONNECTOR,RR MASTER CYLINDER

13159-Y001

$5.78

13168

LEVER,CHANGE

13168-Y001

$65.17

14092

COVER,CHANGE LEVER

14092-Y017

$11.45

16171

LINK,CHANGE LEVER

16171-Y001

$25.07

27010

SWITCH,BRAKE

27010-Y006

$36.00

35063

STAY,CHANGE LEVER

35063-Y008

$47.95

39112

RODEND-TIE,RH

39112-Y007

$34.00

39112A

RODEND-TIE,LH

39112-Y008

$34.00

43001

LEVER-BRAKE,PEDAL

43001-Y001

$45.69

43010

ROD-ASSY-BRAKE

43010-Y001

$18.63

43015

CYLINDER-ASSY-MASTER,RR

43015-Y004

$239.66

43026

CAP-BRAKE

43026-Y003

$12.71

43078

RESERVOIR,RR MASTER CYLINDER

43078-Y001

$98.43

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-Y008

$16.05

46102

ROD,CHANGE LEVER

46102-Y001

$75.17

92041

COTTER,2X12

92041-Y001

$1.14

92041A

COTTER,2X15

92041-Y002

$1.14

92041B

COTTER,2.5X30

92041-Y003

$0.98

92043

PIN,CHANGE LEVER

92043-Y020

$2.08

92043A

PIN

92043-Y021

$6.39

92145

SPRING,SHIFT

92145-Y037

$30.97

92145A

SPRING,STOP

92145-Y038

$2.85

92145B

SPRING,BRAKE PEDAL

92145-Y039

$5.03

92153

BOLT,FLANGE,6X22

92153-Y026

$0.68

92154

BOLT,SOCKET,5X12

92154-Y036

$2.98

92154B

BOLT,FLANGE,6X16

92154-Y134

$1.84

92154C

BOLT,HEX,6X20

92154-Y138

$2.14

92172

SCREW,4X40

92172-Y045

$3.27

92172A

SCREW,4X12

92172-Y046

$0.93

92173

CLAMP,BRAKE HOSE

92173-Y022

$1.92

92200

WASHER,8MM

92200-Y019

$0.80

92200A

WASHER,7X12

92200-Y043

$0.93

92200B

WASHER,8MM

92200-Y044

$0.93

92200C

WASHER,14X26X2.3

92200-Y045

Unavailable

92210A

NUT,8MM

92210-Y028

$0.68

92210B

NUT,HEX,8MM

92210-Y048

$1.49

92210C

NUT,HEX,6MM

92210-Y049

$0.93

92210D

NUT,8MM

92210-Y075

$4.44

92210E

NUT,HEX,8MM

92210-0553

$0.93
