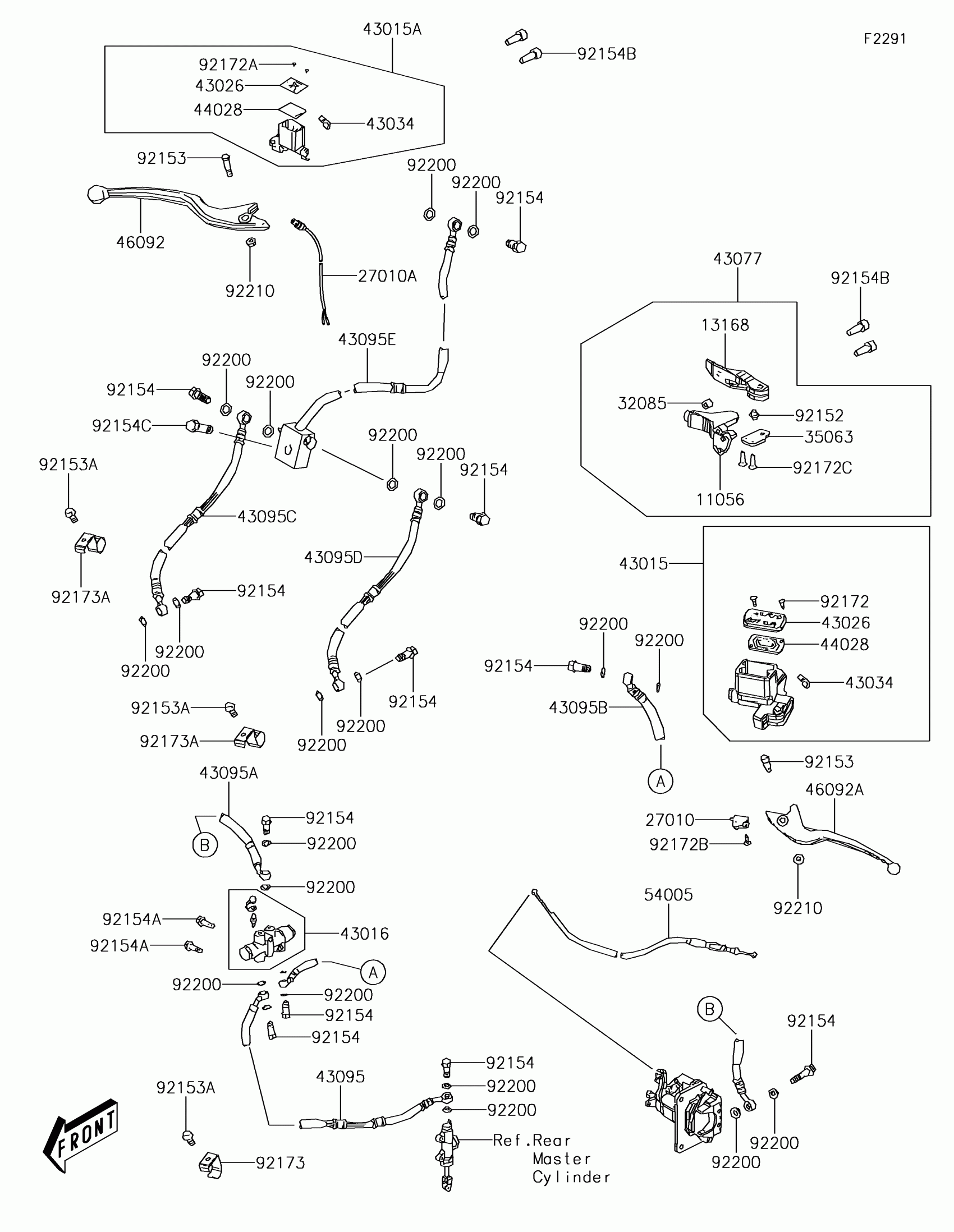

Kawasaki BRUTE FORCE® 300 Front Master Cylinder Diagram

#

Description
Price

11056

BRACKET,BRAKE LEVER

11056-Y008

$33.37

13168

LEVER,BRAKE

13168-Y002

$23.57

27010

SWITCH,STOP

27010-Y004

$11.59

27010A

SWITCH,FR,STOP

27010-Y005

$27.97

32085

STOPPER,BRAKE LEVER

32085-Y004

$3.07

35063

STAY,BRAKE LEVER

35063-Y017

$3.27

43015

CYLINDER-ASSY-MASTER,RR

43015-Y002

$120.31

43015A

CYLINDER-ASSY-MASTER,FR

43015-Y003

$140.55

43016

CYLINDER-MASTER

43016-Y001

$178.98

43026

CAP-BRAKE

43026-Y002

$14.71

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-Y001

Unavailable

43077

LEVER-ASSY-BRAKE

43077-Y001

$79.23

43095

HOSE-BRAKE,RR

43095-Y002

$73.73

43095A

HOSE-BRAKE

43095-Y003

$99.42

43095B

HOSE-BRAKE,FR

43095-Y004

$115.15

43095C

HOSE-BRAKE,FR,LWR,RH

43095-Y005

$86.57

43095D

HOSE-BRAKE,FR,LWR,LH

43095-Y006

$86.57

43095E

HOSE-BRAKE,FR,UPP

43095-Y007

$114.09

44028

DIAPHRAGM

44028-Y001

$10.80

46092

LEVER-GRIP,RH

46092-Y004

$23.97

46092A

LEVER-GRIP,LH,E.D.BLACK

46092-Y005-943

$17.63

54005

CABLE-BRAKE

54005-Y002

$34.58

92152

COLLAR

92152-Y026

$1.92

92153

BOLT

92153-Y008

$0.97

92153A

BOLT,FLANGE,6X12

92153-Y023

$0.78

92154

BOLT,10X22

92154-Y019

$3.98

92154A

BOLT,FLANGE,6X35

92154-Y020

$1.92

92154B

BOLT,SOCKET,6X20

92154-Y022

$6.39

92154C

BOLT,FLANGE,8X28

92154-Y106

$2.61

92172

SCREW,4X12

92172-Y011

$1.63

92172A

SCREW,4X12

92172-Y040

$2.49

92172B

SCREW,4X12

92172-Y046

$0.93

92172C

SCREW,6X12

92172-Y048

$1.49

92173

CLAMP,HOSE

92173-Y009

$6.39

92173A

CLAMP,HOSE

92173-Y010

$6.39

92200

WASHER

92200-Y015

$2.53

92210

NUT,6MM

92210-Y026

$1.24
