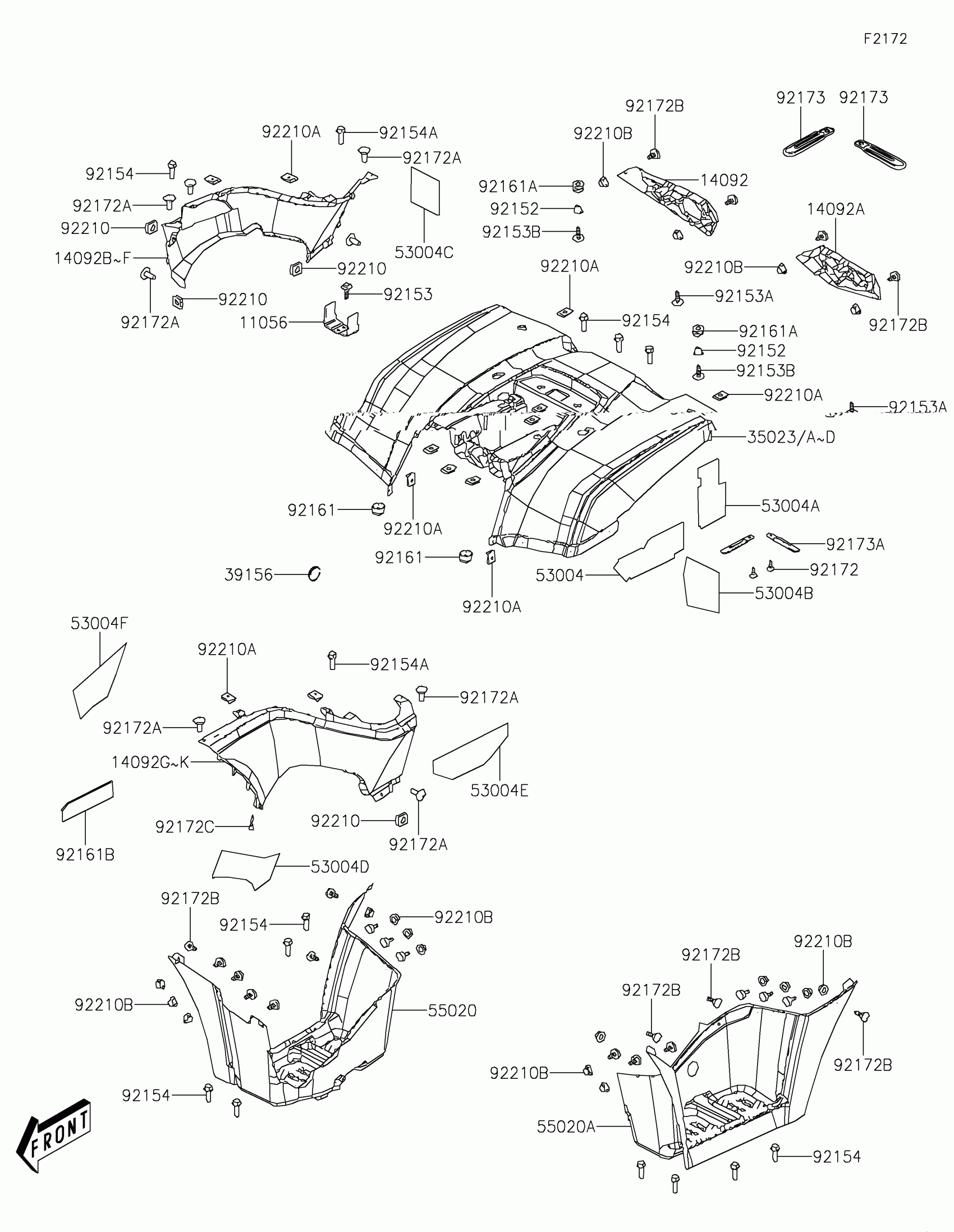

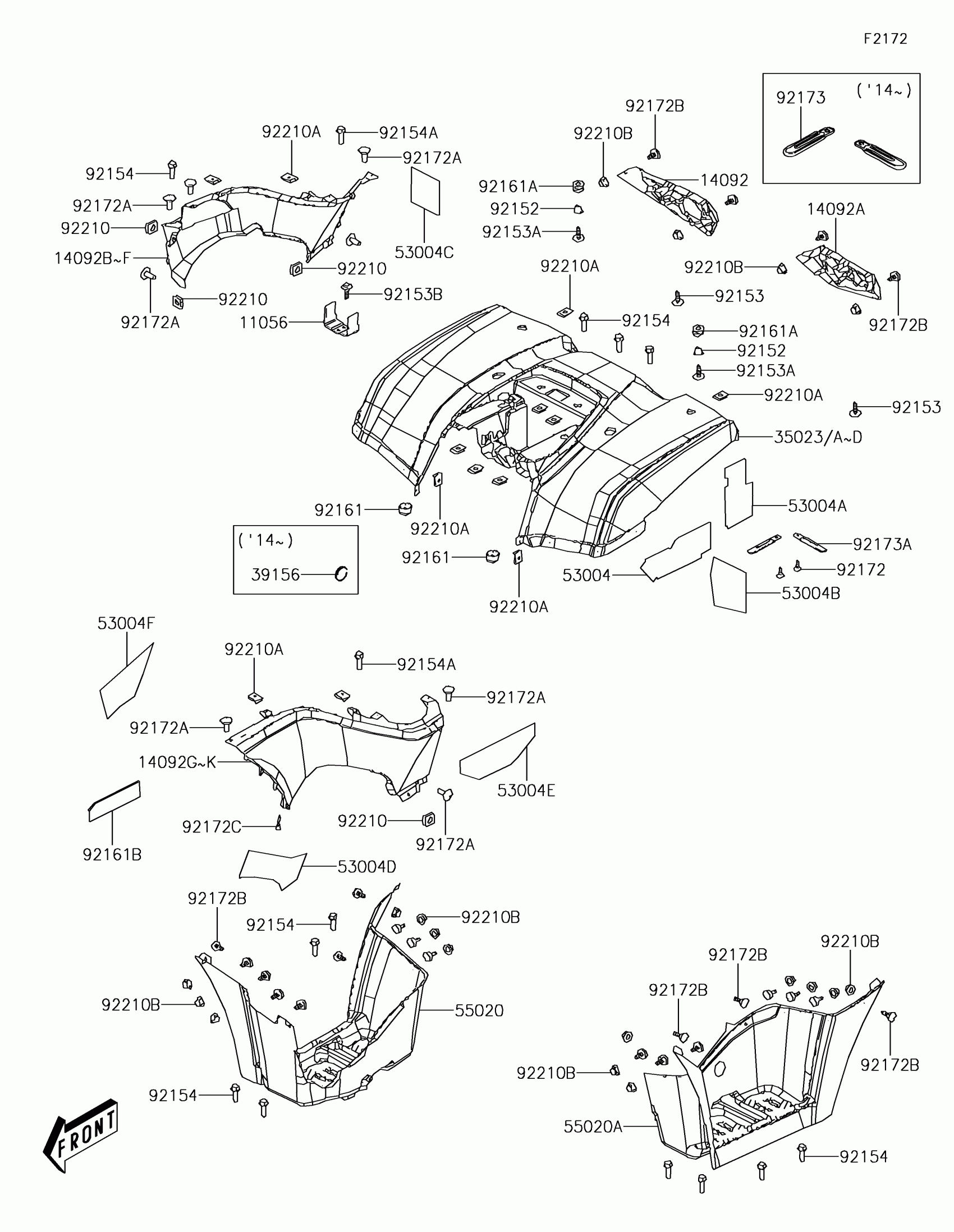

Kawasaki BRUTE FORCE® 300 Rear Fender(s) Diagram
#
11056
BRACKET,IGNITION SWITCH
11056-Y004
$4.54
14092
COVER,TAIL TAMP,RH,S.BLACK
14092-Y013-933
$26.71
14092A
COVER,TAIL TAMP,LH,S.BLACK
14092-Y014-933
$26.71
14092B
COVER,SIDE,RH,B.WHITE
14092-Y015-932
$60.79
14092C
COVER,SIDE,RH,S.BLACK
14092-Y015-933
$60.76
14092E
COVER,SIDE,RH,T.GREEN
14092-Y015-973
$60.79
14092F
COVER,SIDE,RH,G.BLUE
14092-Y015-984
$60.79
14092G
COVER,SIDE,LH,B.WHITE
14092-Y016-932
$60.79
14092H
COVER,SIDE,LH,S.BLACK
14092-Y016-933
$60.76
14092J
COVER,SIDE,LH,T.GREEN
14092-Y016-973
$60.79
14092K
COVER,SIDE,LH,G.BLUE
14092-Y016-984
$60.79
35023
FENDER-REAR,B.WHITE
35023-Y002-932
$179.84
35023A
FENDER-REAR,S.BLACK
35023-Y002-933
$179.84
35023C
FENDER-REAR,T.GREEN
35023-Y002-973
$179.84
35023D
FENDER-REAR,G.BLUE
35023-Y002-984
$195.59
39156
PAD,SIDE COVER
39156-Y002
$9.39
53004
MAT,LH,LWR
53004-Y001
$9.52
53004A
MAT,LH,UPP
53004-Y002
$13.36
53004B
MAT,RR
53004-Y003
$12.34
53004C
MAT,RR
53004-Y004
$10.79
53004D
MAT,LH
53004-Y005
$29.61
53004E
MAT,LH
53004-Y006
$21.38
53004F
MAT,FRONT,LH
53004-Y007
$15.30
55020
GUARD,FOOTREST,RH,S.BLACK
55020-Y005-933
$106.89
55020A
GUARD,FOOTREST,LH,S.BLACK
55020-Y006-933
$106.89
92152
COLLAR
92152-Y018
$5.72
92153
BOLT,FLANGED,5X12
92153-1991
$0.96
92153A
BOLT,5X16
92153-Y013
$0.76
92153B
BOLT,6X20
92153-Y019
$1.30
92154
BOLT,FLANGE,6MM
92154-Y023
$7.38
92154A
BOLT,6X16
92154-Y054
$2.53
92161
DAMPER
92161-Y005
$1.74
92161A
DAMPER
92161-Y011
$2.28
92161B
DAMPER,FUEL TANK GUARD
92161-Y019
$20.00
92172
SCREW,4X12
92172-Y019
$1.02
92172A
SCREW,5X16
92172-Y039
$3.39
92172B
SCREW,6X20
92172-Y041
$3.09
92172C
SCREW,5MM
92172-Y043
$2.28
92173
CLAMP
92173-Y004
$2.28
92173A
CLAMP,2X70
92173-Y011
$2.28
92210
NUT,6MM
92210-Y011
$1.40
92210A
NUT,5MM
92210-Y016
$1.40
92210B
NUT
92210-Y031
$1.90
