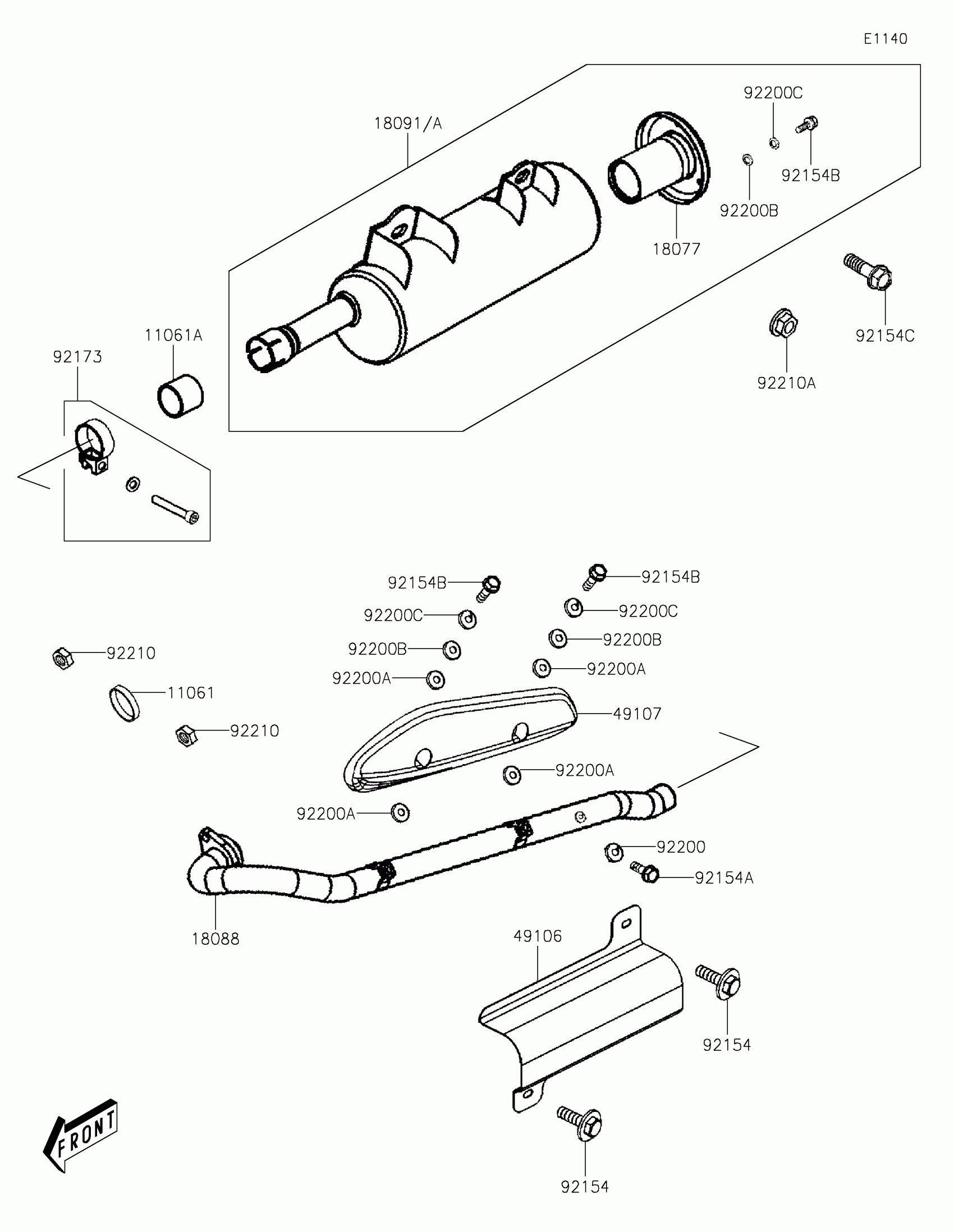

Kawasaki BRUTE FORCE® 300 Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE

11061-Y032

$4.27

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-Y033

$38.47

18077

ARRESTER-SPARK

18077-Y001

$88.35

18088

PIPE-EXHAUST

18088-Y001

$119.59

18091A

BODY-COMP-MUFFLER

18091-Y006

$407.80

49106

COVER-MUFFLER

49106-Y001

$28.95

49107

COVER-EXHAUST PIPE

49107-Y001

$30.60

92154

BOLT,6X12

92154-Y032

$1.48

92154A

BOLT,FLANGE,6X8

92154-Y034

$0.96

92154B

BOLT,FLANGE,6X12

92154-Y035

$1.48

92154C

BOLT,FLANGE,8X30

92154-Y137

$5.03

92173

CLAMP,MUFFLER

92173-Y021

$11.25

92200

WASHER,6MM

92200-0459

$0.96

92200A

WASHER

92200-Y039

$2.53

92200B

WASHER,6MM

92200-Y040

$1.48

92200C

WASHER,6MM

92200-Y042

$0.96

92210

NUT,8MM

92210-Y075

$5.03

92210A

NUT,8MM

92210-Y076

$0.68
