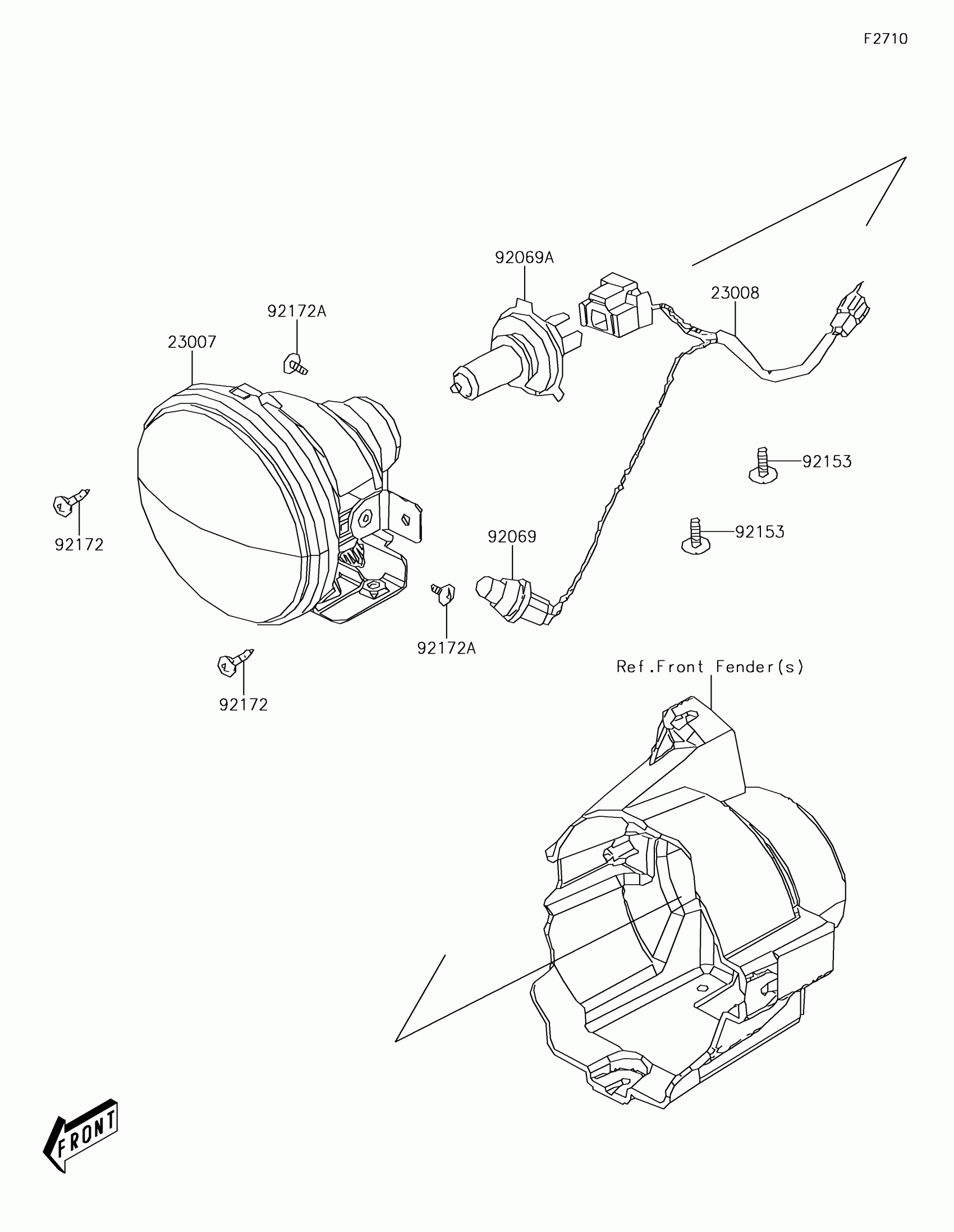

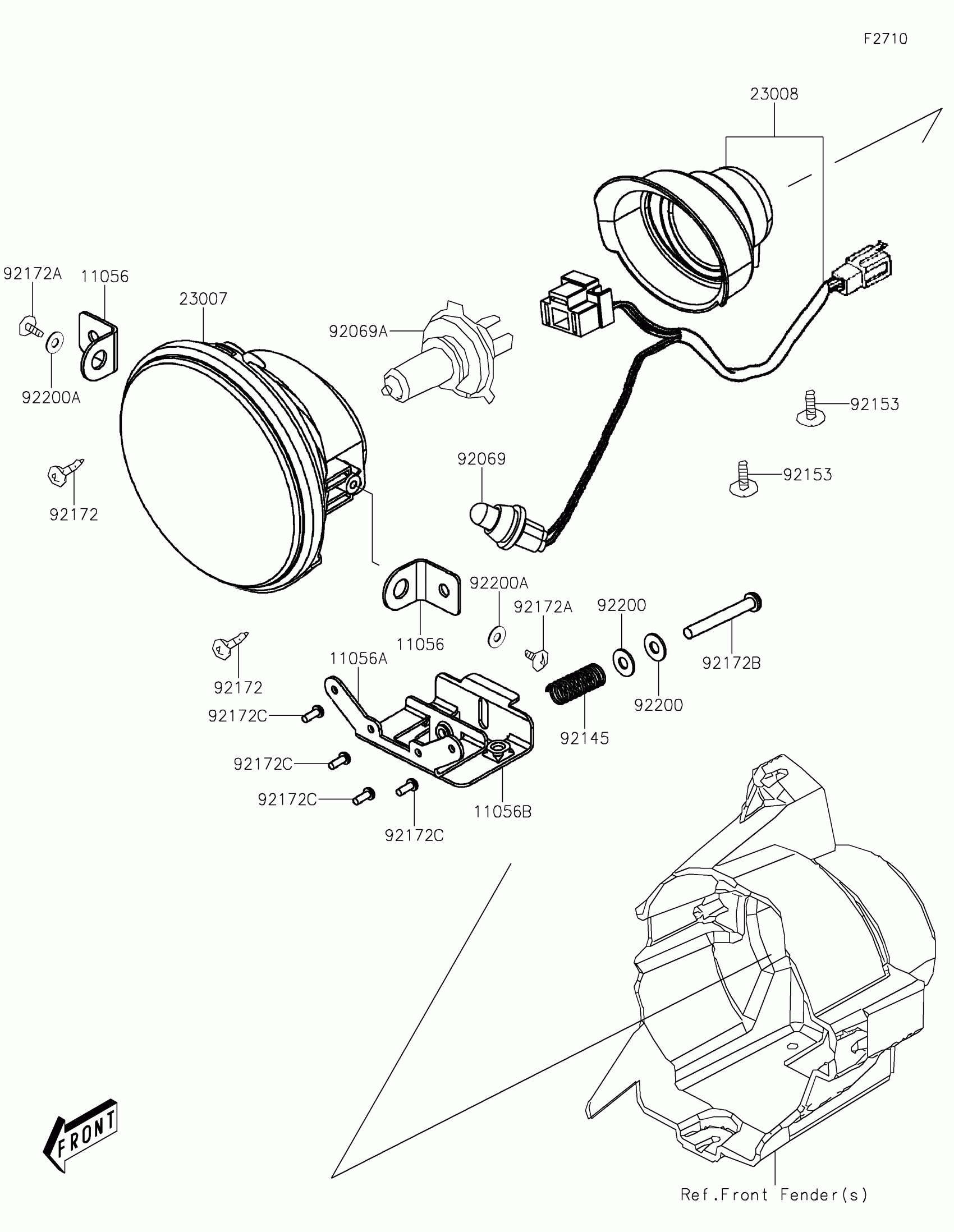

Kawasaki BRUTE FORCE® 300 Headlight(s) Diagram

Description

Price

11056

BRACKET,HEAD LAMP

11056-Y022

$6.17

11056A

BRACKET,HEAD LAMP

11056-Y024

$39.14

11056B

BRACKET,HEAD LAMP

11056-Y025

$29.86

23007

LENS-COMP,HEAD LAMP

23007-Y002

$82.54

23008

SOCKET-ASSY,HEAD LAMP

23008-Y003

$39.44

92069

BULB,12V 5W

92069-0028

$9.97

92069A

BULB

92069-0039

$45.21

92145

SPRING

92145-Y056

$18.30

92153

BOLT,5X16

92153-Y013

$0.76

92172

SCREW,TAPPING,5X16

92172-Y020

$1.63

92172A

SCREW,TAPPING,4X10

92172-Y063

$4.67

92172B

SCREW

92172-Y076

$9.04

92172C

SCREW,TAPPING,3X8

92172-Y077

$5.88

92200

WASHER

92200-Y064

$5.88

92200A

WASHER

92200-Y065

$3.88
