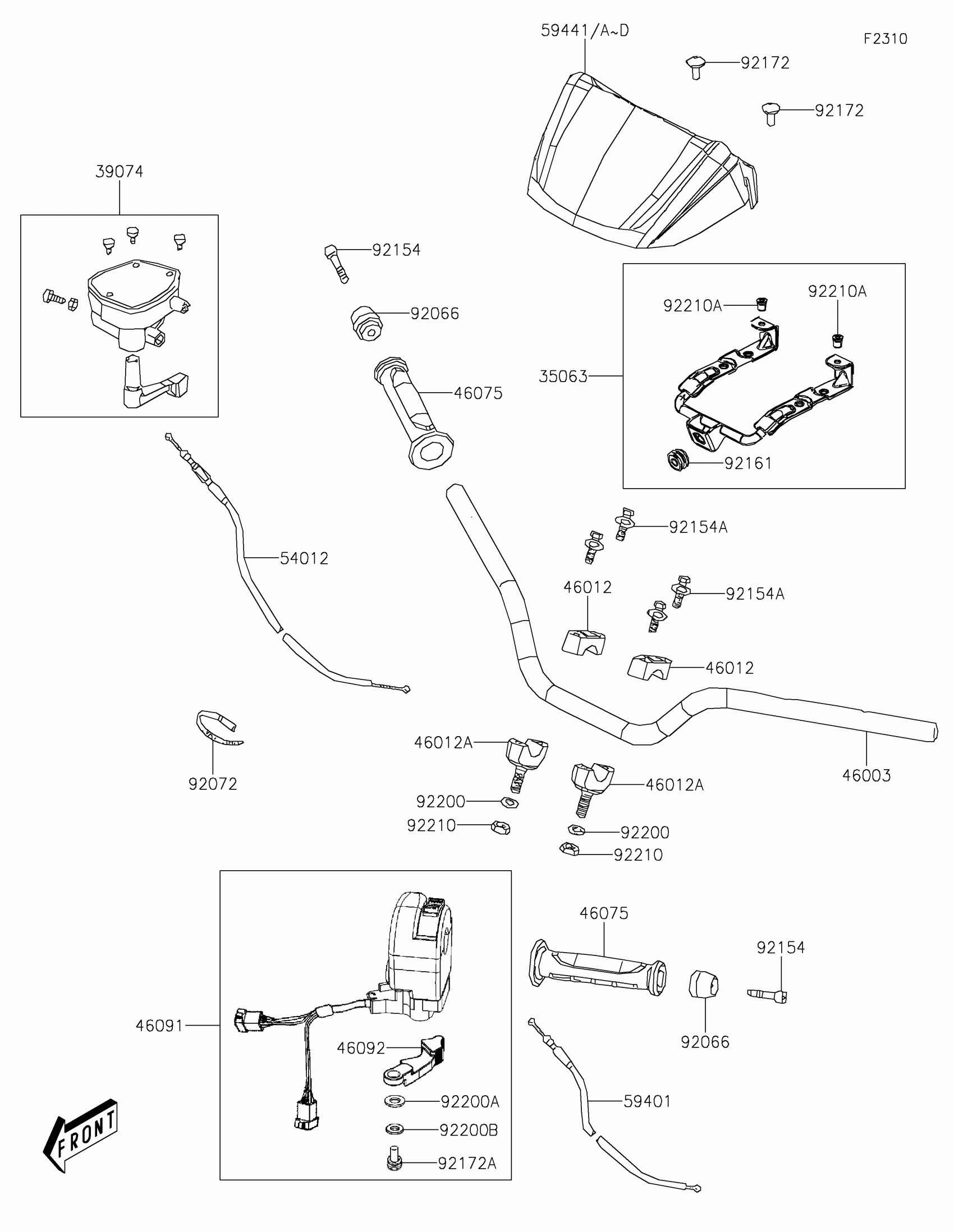

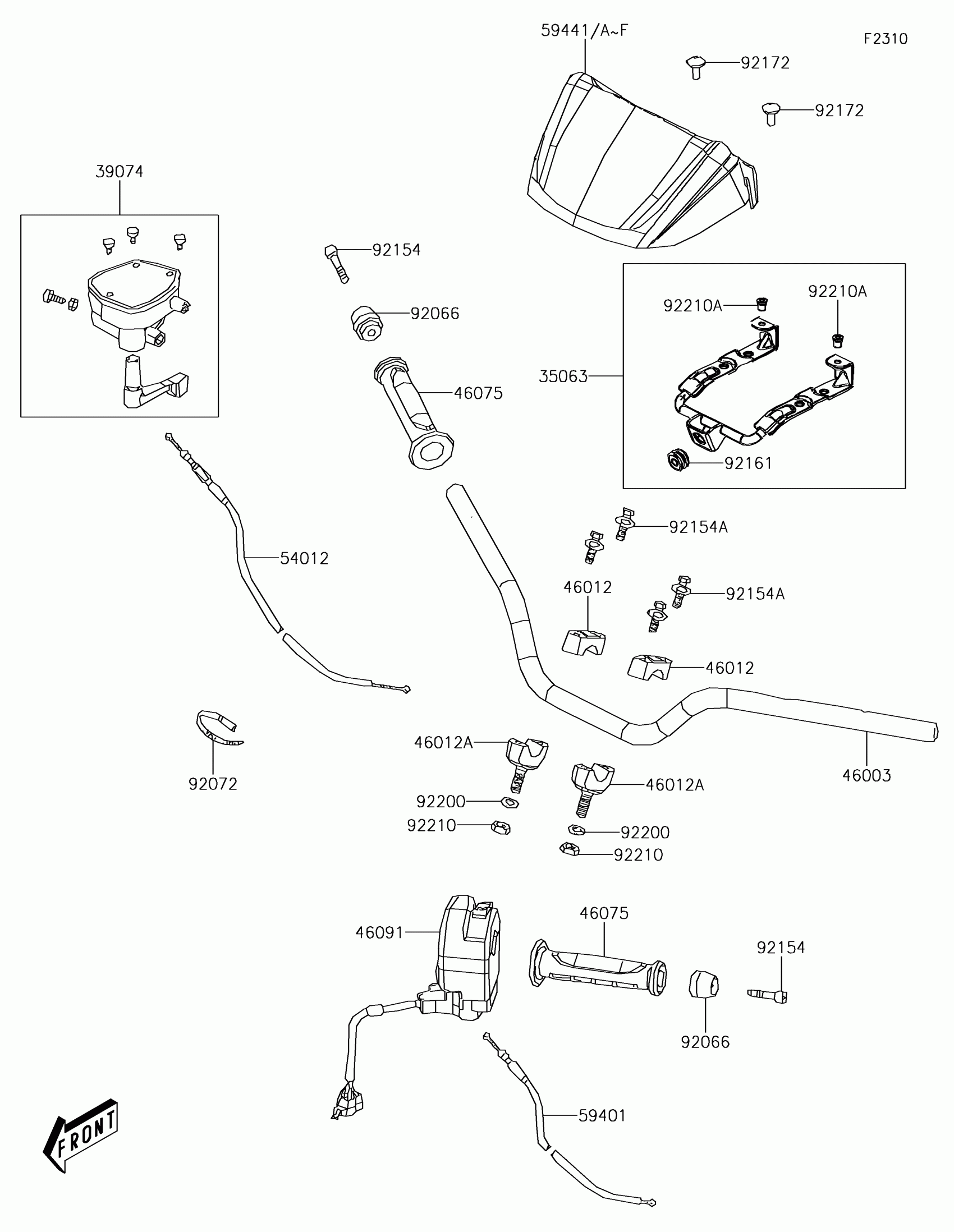

Kawasaki BRUTE FORCE® 300 Handlebar Diagram
#
Description
Price
35063
STAY,HANDLE COVER
35063-Y006
$22.20
39074
LEVER-ASSY-THROTTLE
39074-Y001
$79.00
46003
HANDLE,BLACK
46003-Y002-935
$88.16
46012
HOLDER-HANDLE,UPP
46012-Y004
$9.92
46012A
HOLDER-HANDLE,LWR
46012-Y005
$28.95
46075
GRIP,HANDLE
46075-Y004
$7.71
46091
HOUSING-ASSY-CONTROL,LH
46091-Y002
$112.48
46092
LEVER-GRIP,CHOKE
46092-Y010
$29.59
54012
CABLE-THROTTLE
54012-Y003
$45.21
59401
CABLE-CHOKE
59401-Y001
$49.10
59441
COVER-HANDLE,B.WHITE
59441-Y002-932
$28.62
59441A
COVER-HANDLE,S.BLACK
59441-Y002-933
$28.62
59441C
COVER-HANDLE,T.GREEN
59441-Y002-973
$28.62
59441D
COVER-HANDLE,G.BLUE
59441-Y002-984
$29.99
92066
PLUG,HANDLE
92066-Y010
$10.34
92072
BAND
92072-Y001
$1.90
92154
BOLT,8X42
92154-Y017
$7.38
92154A
BOLT,8X35
92154-Y018
$1.74
92161
DAMPER
92161-Y006
$1.40
92172
SCREW,5X16
92172-Y039
$3.39
92172A
SCREW,5X10
92172-Y079
$5.88
92200
WASHER,10MM
92200-Y020
$0.76
92200A
WASHER,WAVE
92200-Y068
$4.14
92200B
WASHER,5MM
92200-Y069
$4.14
92210
NUT,10MM
92210-Y042
$3.71
92210A
NUT,5MM
92210-Y056
$4.29
