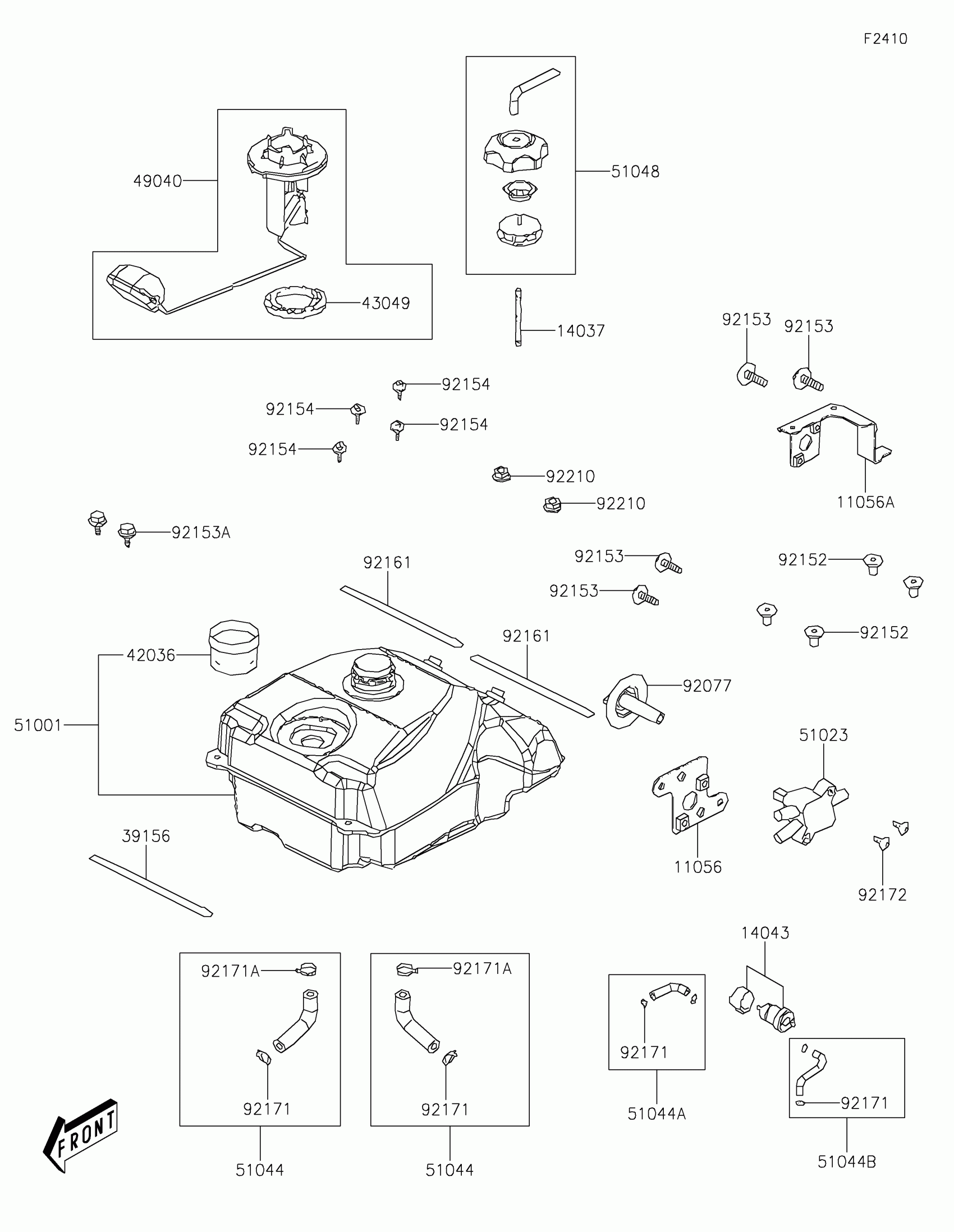

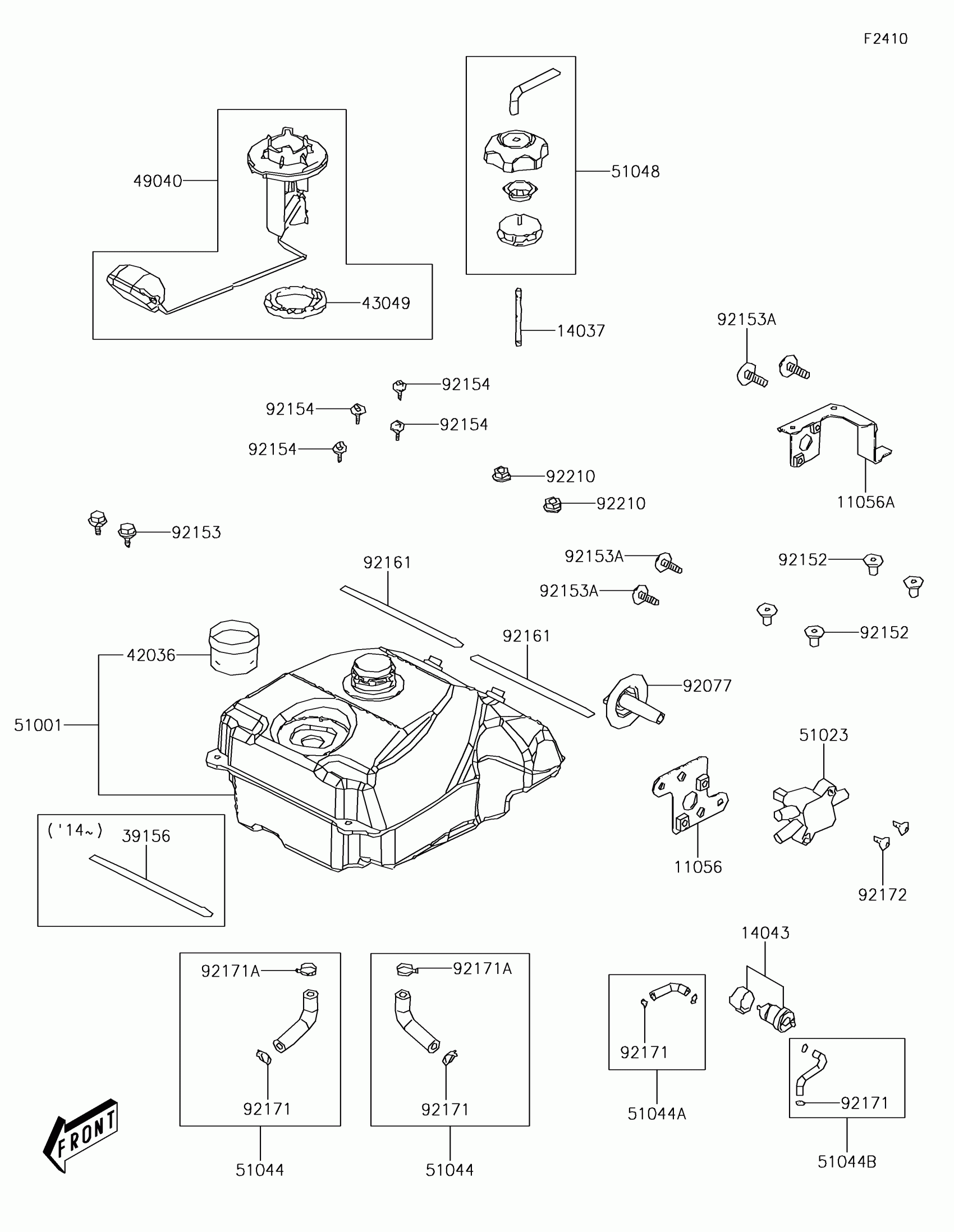

Kawasaki BRUTE FORCE® 300 Fuel Tank Diagram

Description

Price

11056

BRACKET

11056-Y003

$5.94

11056A

BRACKET

11056-Y007

$8.65

14037

SCREEN

14037-Y001

$4.16

14043

FILTER,FUEL

14043-Y002

$11.89

39156

PAD,FUEL TANK

39156-Y001

$9.39

42036

SLEEVE,FUEL TANK

42036-Y002

$2.84

43049

PACKING

43049-Y002

$15.08

49040

GAUGE,FUEL

49040-Y001

$64.75

51001

TANK-COMP-FUEL

51001-Y007

$397.68

51023

TAP-ASSY,FUEL

51023-Y002

$28.41

51044

TUBE-ASSY,FUEL TANK

51044-Y011

$10.34

51044A

TUBE-ASSY,FUEL

51044-Y012

$10.32

51044B

TUBE-ASSY,FUEL

51044-Y013

$10.61

51048

CAP-ASSY-TANK,FUEL

51048-Y001

$30.60

92077

KNOB,FUEL TAP

92077-Y001

$3.71

92152

COLLAR

92152-Y013

$1.09

92153

BOLT,FLANGE,6X22

92153-Y026

$0.79

92153A

BOLT,FLANGED,5X12

92153-1991

$0.96

92154

BOLT,5X16

92154-Y030

$0.96

92161

DAMPER,FUEL TANK

92161-Y016

$4.27

92171

CLAMP

92171-Y011

$0.79

92171A

CLAMP

92171-Y013

$1.46

92172

SCREW,5X16

92172-Y042

$1.48

92210

NUT,6MM

92210-Y027

$0.79
