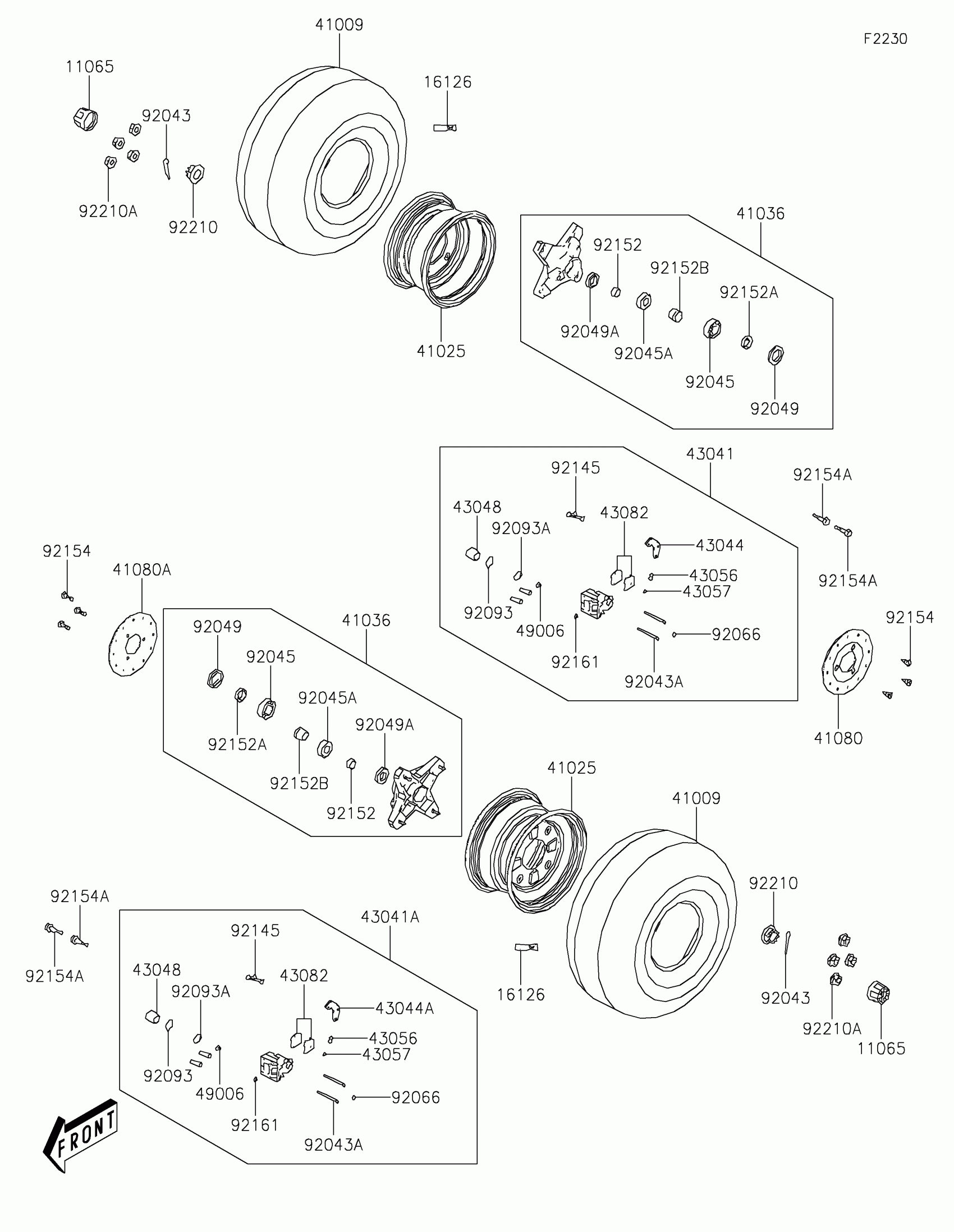

Kawasaki BRUTE FORCE® 300 Front Hub Diagram

#

Description
Price

11065

CAP,WHEEL

11065-Y015

$7.80

16126

VALVE,RIM

16126-Y001

$6.55

41009

TIRE,FR

41009-Y004

$209.88

41025

RIM,FR,BLACK

41025-Y004-935

$117.86

41036

HUB-ASSY,FR

41036-Y004

$105.53

41080

DISC,FR,RH

41080-Y002

$81.34

41080A

DISC,FR,LH

41080-Y003

$81.34

43041

CALIPER-ASSY,FR,RH

43041-Y002

$163.81

43041A

CALIPER-ASSY,FR,LH

43041-Y003

$163.81

43044

HOLDER-COMP-CALIPER,FR

43044-Y001

$51.01

43048

PISTON-CALIPER

43048-Y002

$10.17

43056

BREATHER-BRAKE

43056-Y001

$3.57

43057

CAP-BREATHER

43057-Y001

$1.90

43082

PAD-ASSY-BRAKE

43082-Y003

$46.83

49006

BOOT,CALIPER

49006-Y005

$3.39

92043

PIN,3X25

92043-Y011

$0.76

92043A

PIN,HANGER

92043-Y019

$7.14

92045

BEARING-BALL,6004

92045-Y024

$29.77

92045A

BEARING-BALL,6202

92045-Y025

$12.53

92049

SEAL-OIL,28X42X7

92049-Y016

$2.53

92049A

SEAL-OIL,20X35X7

92049-Y017

$2.53

92066

PLUG

92066-Y001

$1.63

92093

SEAL,PISTON

92093-Y006

$7.60

92093A

SEAL,DUST

92093-Y005

$1.63

92145

SPRING,PAD

92145-Y035

$5.72

92152

COLLAR

92152-Y020

$5.94

92152A

COLLAR

92152-Y021

$7.38

92152B

COLLAR

92152-Y022

$8.03

92154

BOLT,8X24

92154-Y025

$3.71

92154A

BOLT,FLANGE,8X20

92154-Y053

$5.94

92161

DAMPER

92161-Y012

$5.03

92210

NUT,14MM

92210-Y025

$5.36

92210A

NUT,10MM

92210-Y044

$8.03
