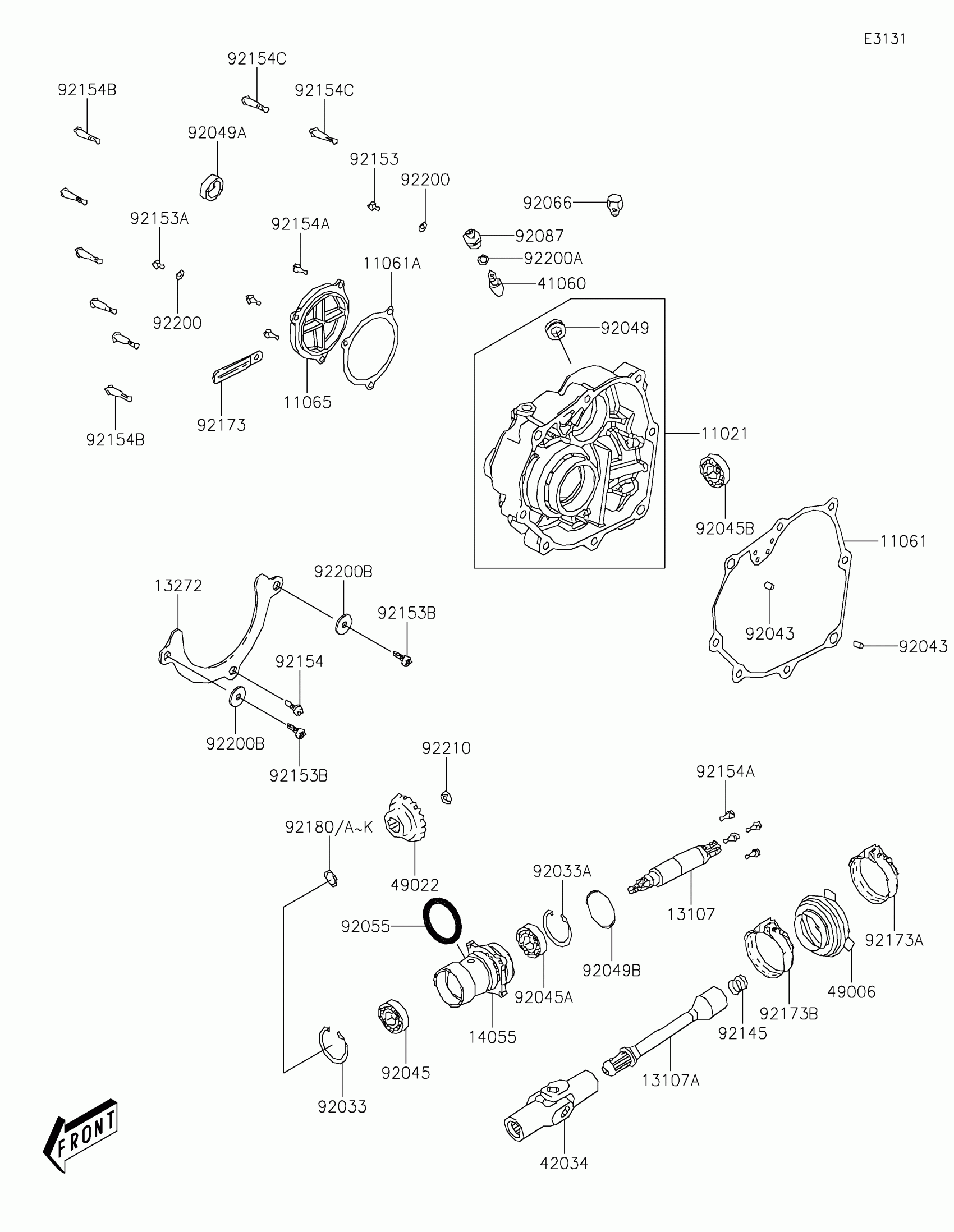

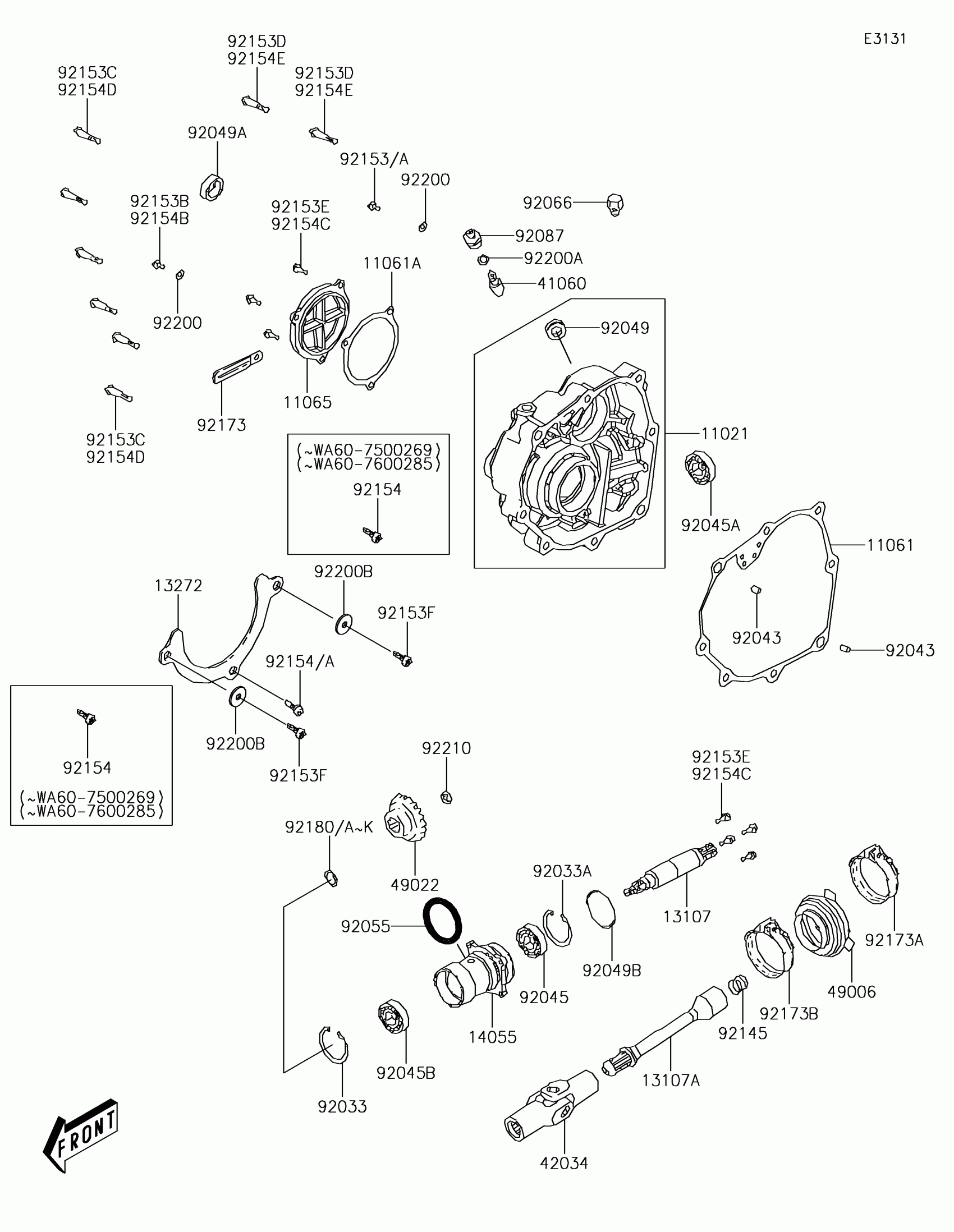

Kawasaki BRUTE FORCE® 300 Front Bevel Gear Diagram
#
11021
CASE-ASSY,MISSION
11021-Y004
$142.37
11061
GASKET,MISSION CASE
11061-Y030
$16.94
11061A
GASKET,CAP
11061-Y031
$4.54
11065
CAP
11065-Y012
$18.62
13107
SHAFT,FINAL
13107-Y009
$67.59
13107A
SHAFT,PROPELLER
13107-Y010
$73.40
13272
PLATE
13272-Y008
$6.45
14055
CASE-GEAR
14055-Y003
$64.41
41060
GEAR-METER SCREW
41060-Y001
$47.04
42034
COUPLING
42034-Y001
$122.99
49006
BOOT
49006-Y003
$13.80
49022
GEAR-BEVEL,DRIVEN
49022-Y007
$109.31
92033
RING-SNAP
92033-Y020
$6.66
92033A
RING-SNAP
92033-Y021
$3.71
92043
PIN,10X16
92043-Y013
$1.29
92045
BEARING-BALL,63/22
92045-0139
$70.77
92045A
BEARING-BALL,62/28
92045-Y021
$58.86
92045B
BEARING-BALL,6009
92045-Y022
$73.18
92049
SEAL-OIL,12X18X3
92049-Y013
$1.74
92049A
SEAL-OIL,14X28X7
92049-Y014
$2.53
92049B
SEAL-OIL,28X59X7
92049-Y015
$20.15
92055
RING-O
92055-Y026
$3.39
92066
PLUG,DRAIN
92066-Y003
$3.57
92087
BUSHING-METER GEAR
92087-Y001
$6.17
92145
SPRING,PROPELLER SHAFT
92145-Y028
$2.28
92153
BOLT,FLANGE,8X12
92153-Y031
$1.90
92153A
BOLT,FLANGE,8X16
92153-Y032
$1.47
92153B
BOLT,SOCKET,6X12
92153-Y059
$1.29
92154
BOLT,SOCKET,6X10
92154-Y003
$2.28
92154A
BOLT,6X20
92154-Y057
$1.71
92154B
BOLT,FLANGE,8X40
92154-Y113
$3.74
92154C
BOLT,FLANGE,8X45
92154-Y136
$2.60
92173
CLAMP
92173-Y004
$2.28
92173A
CLAMP
92173-Y006
$7.58
92173B
CLAMP
92173-Y007
$7.58
92180
SHIM,DRIVE,A,T=0.6
92180-Y001
Unavailable
92180A
SHIM,DRIVE,B,T=0.65
92180-Y002
Unavailable
92180B
SHIM,DRIVE,C,T=0.7
92180-Y003
Unavailable
92180C
SHIM,DRIVE,D,T=0.75
92180-Y004
Unavailable
92180D
SHIM,DRIVE,E,T=0.8
92180-Y005
Unavailable
92180E
SHIM,DRIVE,F,T=0.85
92180-Y006
Unavailable
92180F
SHIM,DRIVE,G,T=0.9
92180-Y007
Unavailable
92180G
SHIM,DRIVE,H,T=0.95
92180-Y008
Unavailable
92180H
SHIM,DRIVE,I,T=1.0
92180-Y009
Unavailable
92180I
SHIM,DRIVE,J,T=1.05
92180-Y010
Unavailable
92180J
SHIM,DRIVE,K,T=1.1
92180-Y011
Unavailable
92200
WASHER,8MM
92200-Y010
$0.79
92200A
WASHER,8MM
92200-Y027
$3.71
92200B
WASHER,21X6.2X2
92200-Y063
$6.32
92210
NUT
92210-Y040
$2.53
