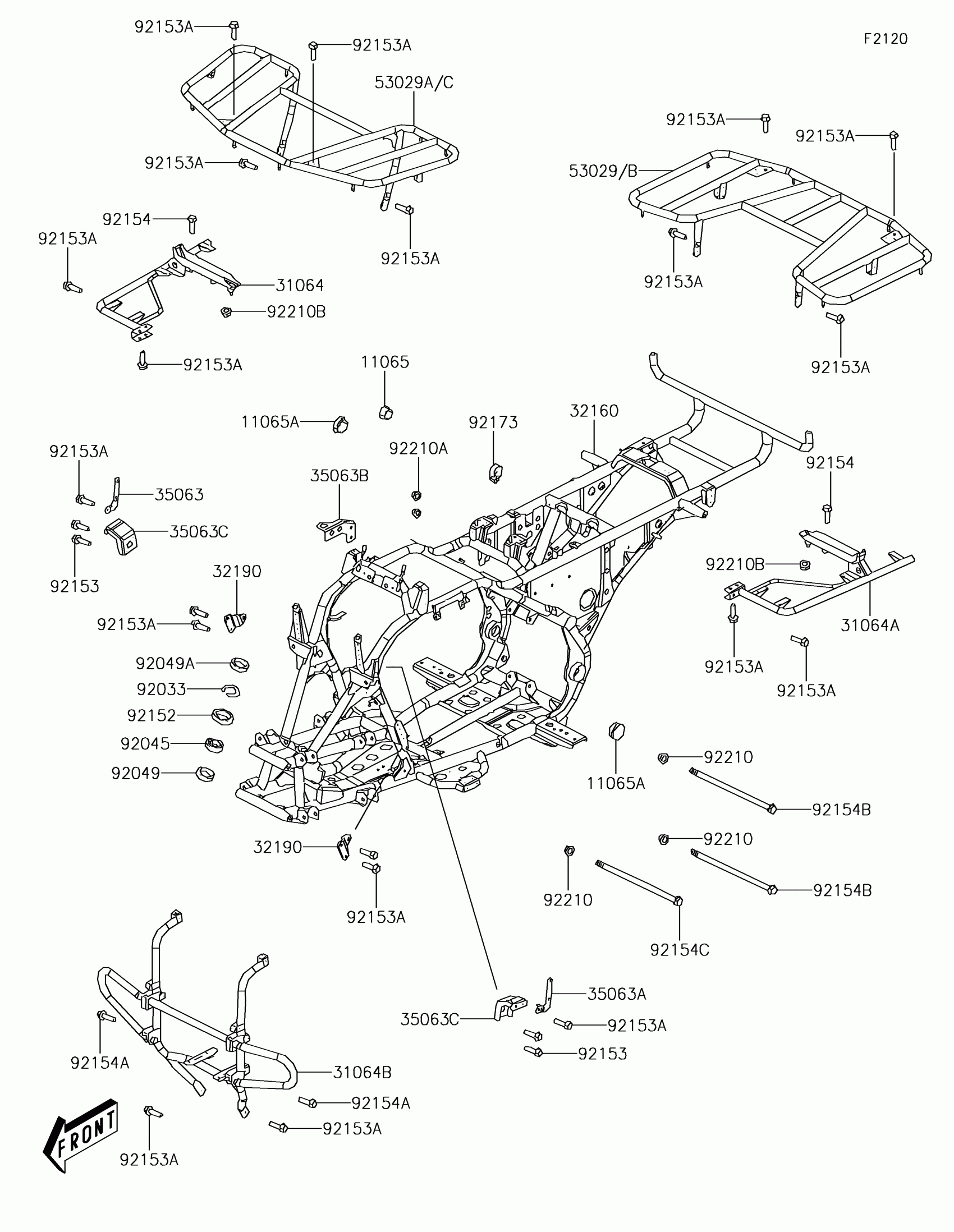

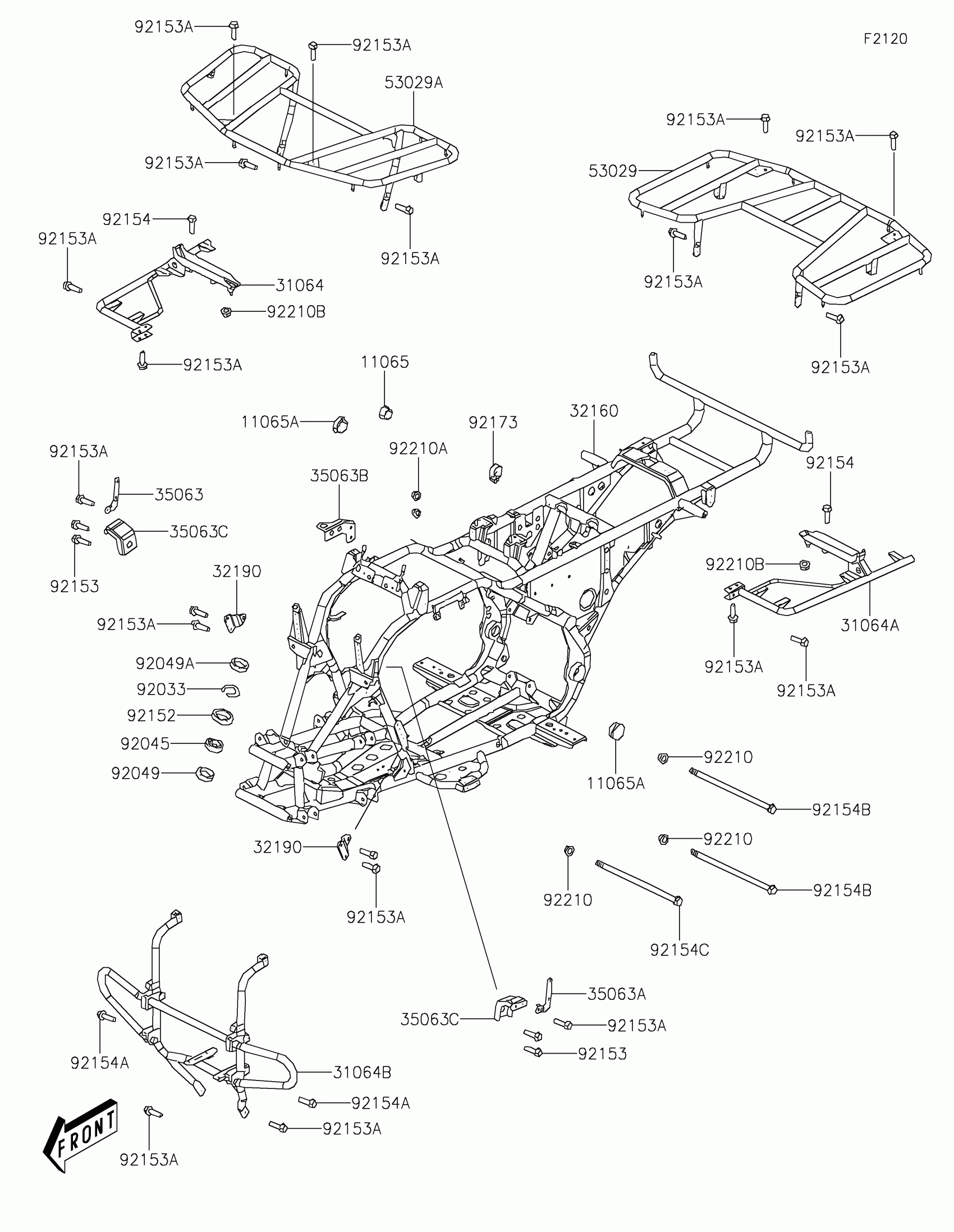

Kawasaki BRUTE FORCE® 300 Frame Diagram
#
Description
Price
11065
CAP,PIPE
11065-Y019
$1.23
11065A
CAP,PIPE
11065-Y020
$2.53
31064
PIPE-COMP,FLOOR PANEL,RH
31064-Y005
$69.47
31064A
PIPE-COMP,FLOOR PANEL,LH
31064-Y006
$69.47
31064B
PIPE-COMP,FR BUMPER,BLACK
31064-Y007-945
$190.50
32160
FRAME-COMP,MAIN
32160-Y003
$1,016.49
32190
BRACKET-ENGINE
32190-Y003
$7.38
35063
STAY,SIDE COVER,RH
35063-Y010
$12.34
35063A
STAY,SIDE COVER,LH
35063-Y011
$12.34
35063B
STAY,STOP SWICTH
35063-Y012
$5.72
35063C
STAY,FR CARRIER
35063-Y013
$13.36
53029
CARRIER,RR,BLACK
53029-Y003-945
$137.11
53029A
CARRIER,FR,BLACK
53029-Y004-945
$125.65
92033
RING-SNAP
92033-Y026
$2.53
92045
BEARING-BALL,6203
92045-Y030
$24.36
92049
SEAL-OIL,22X35X7
92049-Y005
$2.51
92049A
SEAL-OIL,27X40X6
92049-Y023
$3.09
92152
COLLAR
92152-Y025
$10.34
92153
BOLT,FLANGE,6X12
92153-Y023
$0.76
92153A
BOLT,FLANGE,8X16
92153-Y032
$1.47
92154
BOLT,FLANGE,8X35
92154-Y021
$2.28
92154A
BOLT,FLANGE,8X25
92154-Y046
$2.53
92154B
BOLT,FLANGE,10X85
92154-Y047
$5.03
92154C
BOLT,FLANGE,10X160
92154-Y048
$8.20
92173
CLAMP,FUEL PIPE
92173-Y027
$1.48
92210
NUT,10MM
92210-Y009
$3.12
92210A
NUT,6MM
92210-Y026
$1.40
92210B
NUT,8MM
92210-Y028
$0.79
