2016 Kawasaki Brute Force® 300 Drive Shaft/final Gear Diagram

← All diagrams

Find the part on the Drive Shaft/final Gear diagram for your 2016 Kawasaki Brute Force® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

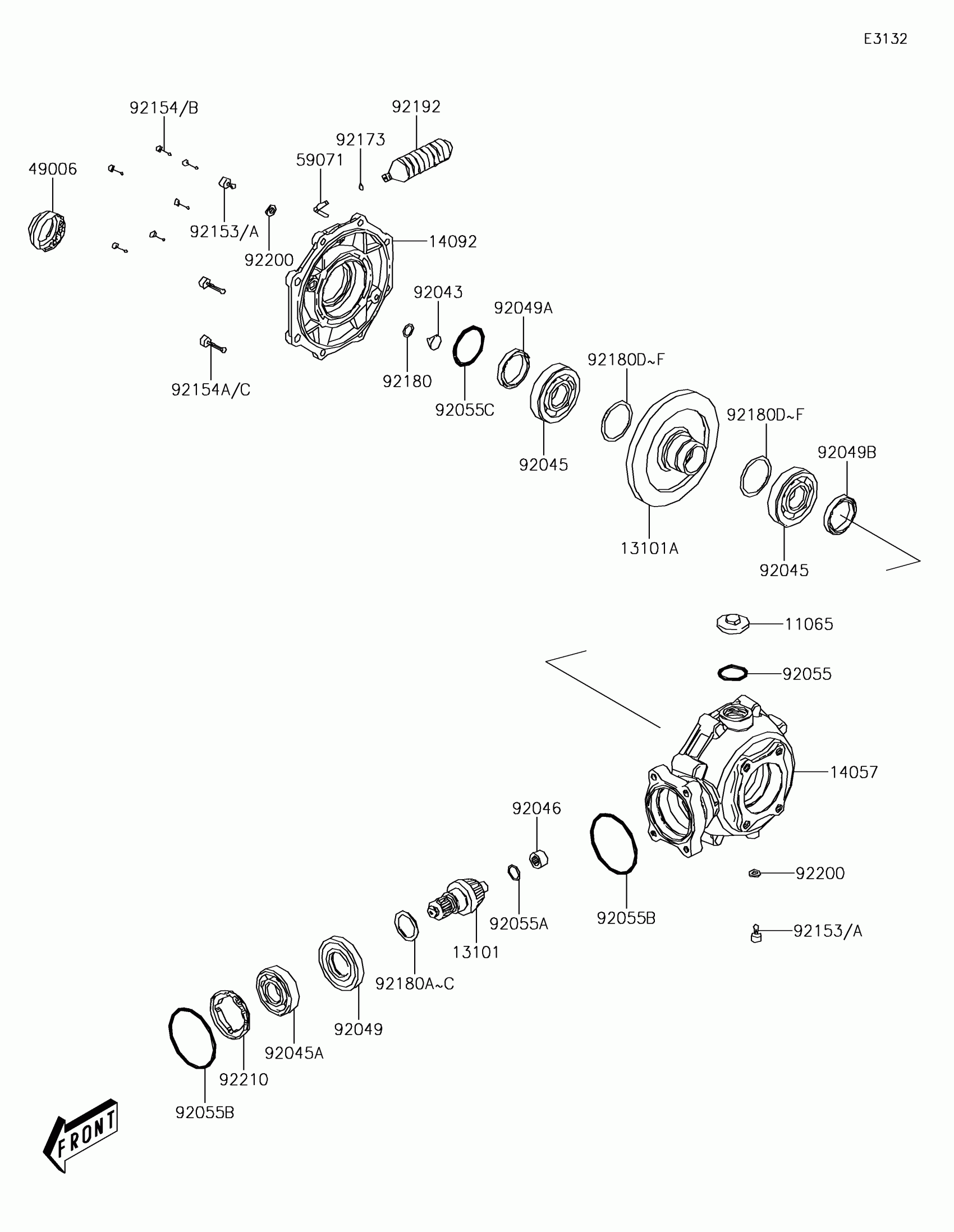

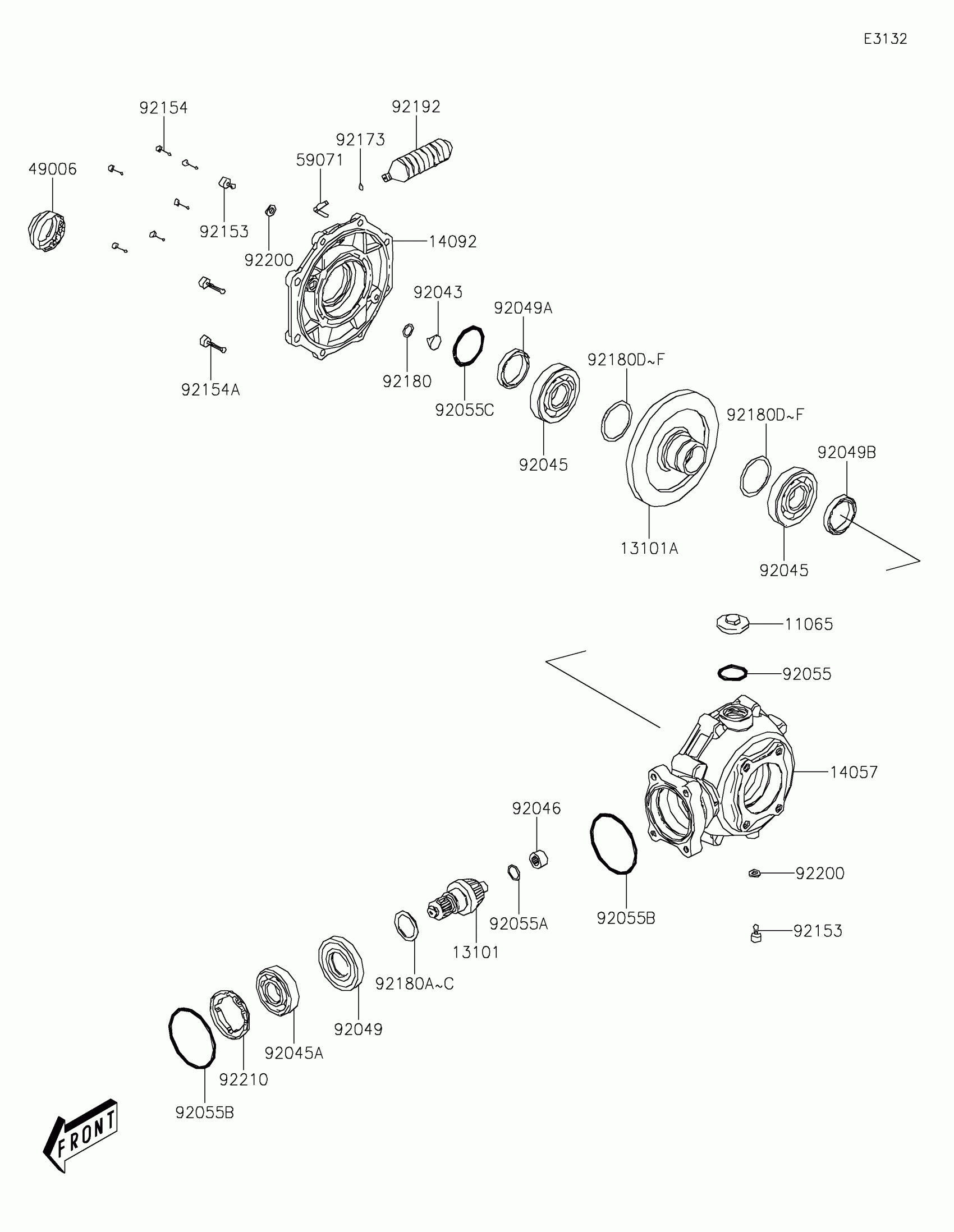

2016 Kawasaki Brute Force® 300 Drive Shaft/final Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-Y006

1
Out of stock

13101

GEAR-ASSY,PINION

13101-Y001

1
Out of stock

13101A

GEAR-ASSY,RING

13101-Y002

1
Out of stock

14057

CASE-COMP-GEAR

14057-Y001

1
Out of stock

14092

COVER,RH

14092-Y018

1
Out of stock

49006

BOOT,RR,AXLE SHAFT

49006-Y007

1
Out of stock

59071

JOINT,BREATHER

59071-Y002

1
Out of stock

92043

PIN,RING GEAR,STOPPER

92043-Y022

1
Out of stock

92045

BEARING-BALL,6009

92045-Y022

1
Out of stock

92045A

BEARING-BALL,6206

92045-Y029

1
Out of stock

92046

BEARING-NEEDLE,14X20X12

92046-Y007

1
Out of stock

92049

SEAL-OIL,35X70X10

92049-Y020

1
Out of stock

92049A

SEAL-OIL,44X60X7

92049-Y021

1
Out of stock

92049B

SEAL-OIL,42X62X7

92049-Y022

1
Out of stock

92055

RING-O,30.8MM

92055-Y005

1
Out of stock

92055A

CIRCLIP

92055-Y031

1
Out of stock

92055B

RING-O,74.4X3.1

92055-Y032

1
Out of stock

92055C

RING-O,31.7X3.5

92055-Y033

1
Out of stock

92153A

BOLT,FLANGE,8X12

92153-Y031

1
Out of stock

92154B

BOLT,FLANGE,8X30

92154-Y137

1
Out of stock

92154C

BOLT,FLANGE,10X35

92154-Y140

1
Out of stock

92173

CLAMP,10.5

92173-Y023

1
Out of stock

92180

SHIM,T=0.3

92180-Y025

1
Out of stock

92180A

SHIM,PINION GEAR,A

92180-Y026

—
Out of stock

92180B

SHIM,PINION GEAR,B

92180-Y027

—
Out of stock

92180C

SHIM,PINION GEAR,C

92180-Y028

—
Out of stock

92180D

SHIM,RING GEAR,A

92180-Y029

—
Out of stock

92180E

SHIM,RING GEAR,B

92180-Y030

—
Out of stock

92180F

SHIM,RING GEAR,C

92180-Y031

—
Out of stock

92192

TUBE,BREATHER

92192-Y016

1
Out of stock

92200

WASHER,8MM

92200-Y010

1
Out of stock

92210

NUT,LOCK,65MM

92210-Y052

1
Out of stock
