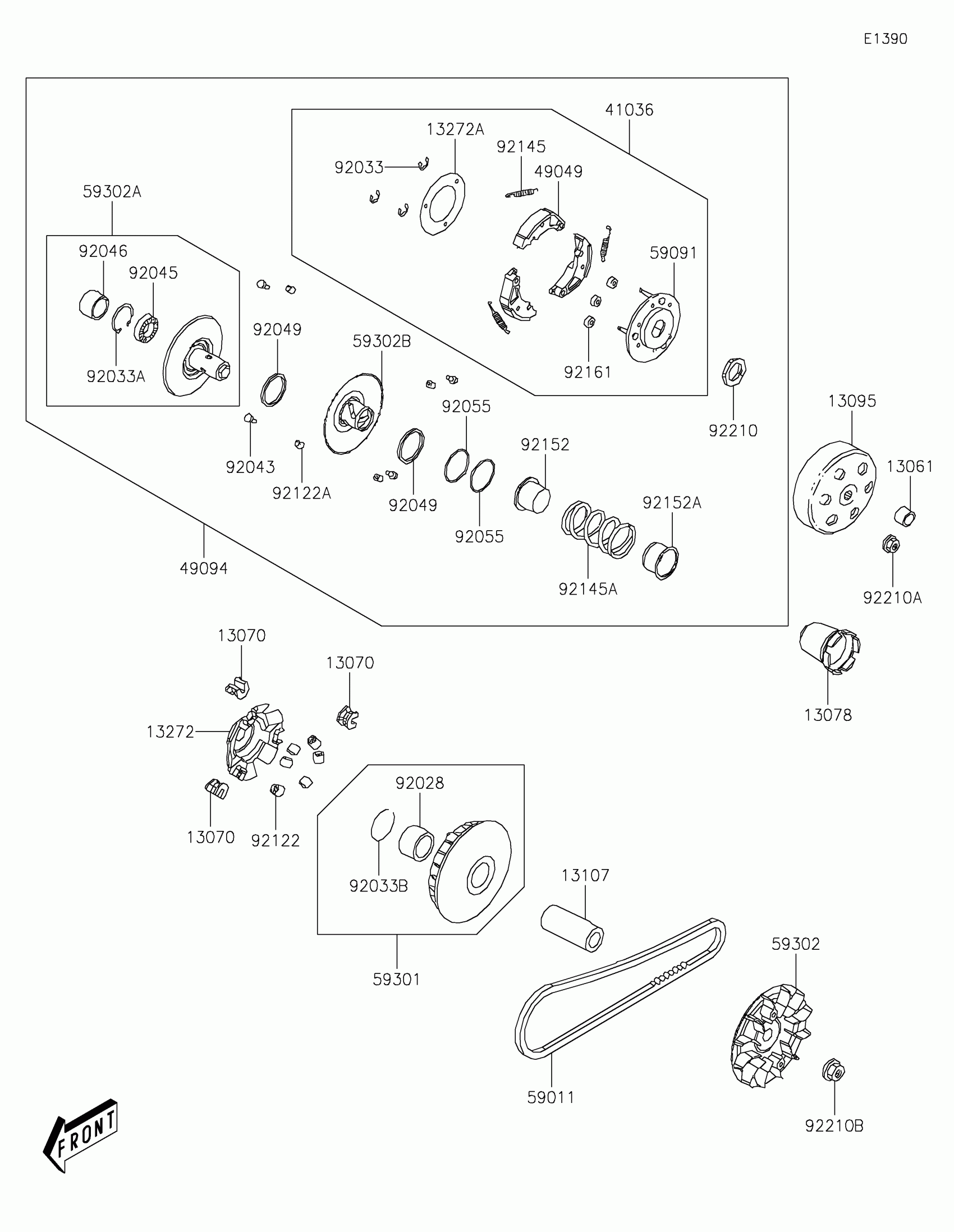

Kawasaki BRUTE FORCE® 300 Belt Converter Diagram

#

Description
Price

13061

BOSS,DRIVE SHAFT

13061-Y002

$25.07

13070

GUIDE

13070-Y001

$6.93

13078

RATCHET

13078-Y005

$52.00

13095

HOUSING-COMP-CLUTCH

13095-Y004

$70.80

13107

SHAFT,DRIVE

13107-Y007

$26.54

13272

PLATE,RAMP

13272-Y006

$27.14

13272A

PLATE,CLUTCH SIDE

13272-Y007

$11.98

41036

HUB-ASSY

41036-Y003

$109.52

49049

SHOE-CLUTCH

49049-Y001

$24.15

49094

CONVERTER-ASSY-DRIVEN

49094-Y003

$358.65

59011

BELT,DRIVE

59011-Y003

$123.85

59091

PULLEY,DRIVEN

59091-Y001

$52.00

59301

SHEAVE-MOVABLE

59301-Y003

$61.95

59302

SHEAVE-COMP

59302-Y007

$44.79

59302A

SHEAVE-COMP,FIXED

59302-Y008

$131.96

59302B

SHEAVE-COMP,MOVABLE

59302-Y009

$84.13

92028

BUSHING,27X33X37

92028-Y001

$8.44

92033

RING-SNAP,7MM

92033-Y016

$1.14

92033A

RING-SNAP

92033-Y017

$1.49

92033B

RING-SNAP,33MM

92033-Y018

$1.14

92043

PIN,GUIDE

92043-Y016

$2.49

92045

BEARING-BALL,6902U

92045-Y019

$24.27

92046

BEARING-NEEDLE,22X29X18

92046-Y005

$50.18

92049

SEAL-OIL

92049-Y012

$16.27

92055

RING-O

92055-Y024

$5.19

92122

ROLLER,WEIGHT

92122-Y007

$6.42

92122A

ROLLER,GUIDE

92122-Y008

$5.39

92145

SPRING,CLUTCH

92145-Y026

$25.07

92145A

SPRING

92145-Y027

$20.80

92152

COLLAR,SEAL

92152-Y016

$29.80

92152A

COLLAR,SPRING

92152-Y017

$13.53

92161

DAMPER,CLUTCH

92161-Y009

$3.27

92210

NUT,28MM

92210-Y002

$2.53

92210A

NUT,12MM

92210-Y037

$3.27

92210B

NUT,FLANGE,14MM

92210-Y038

$3.27
