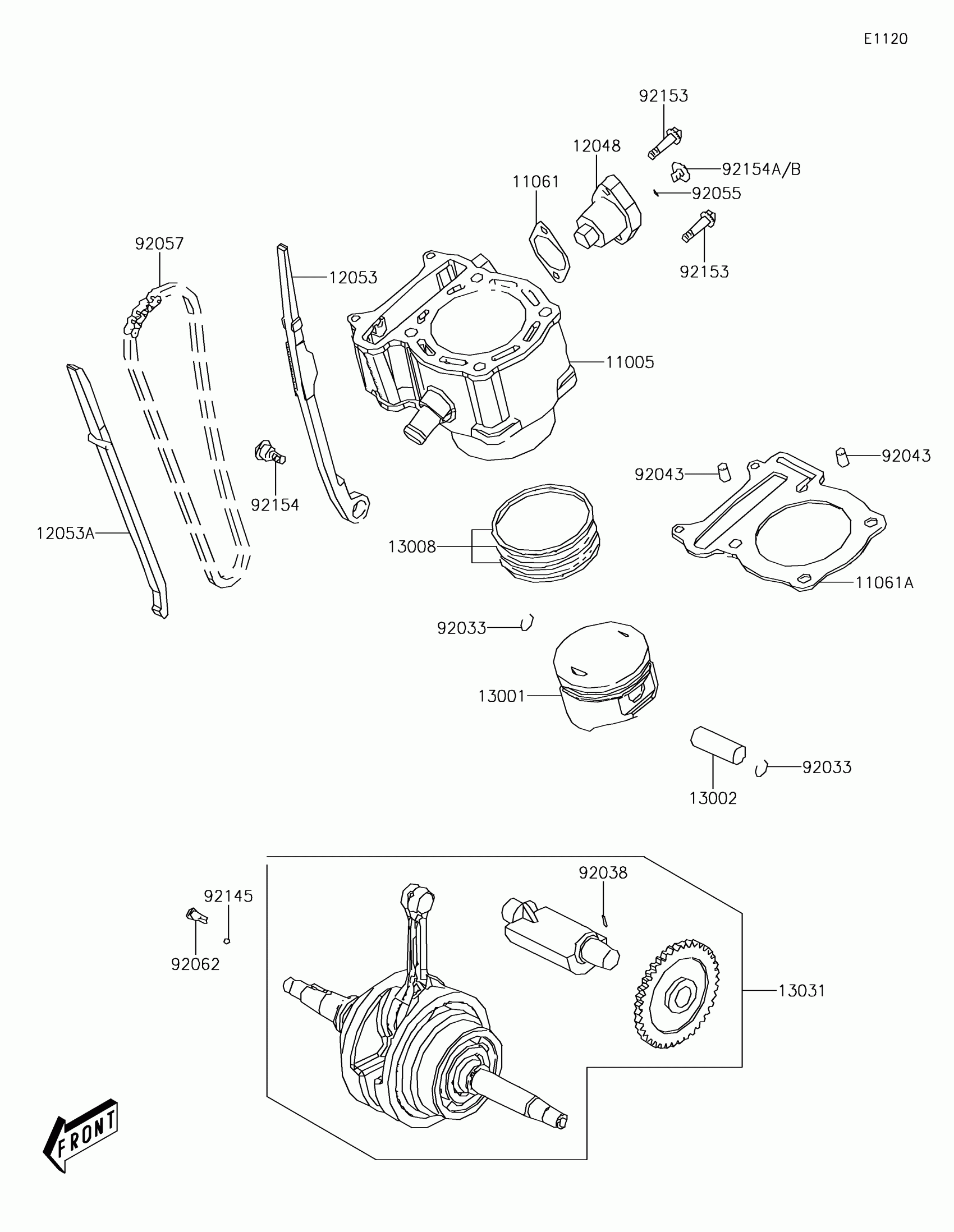

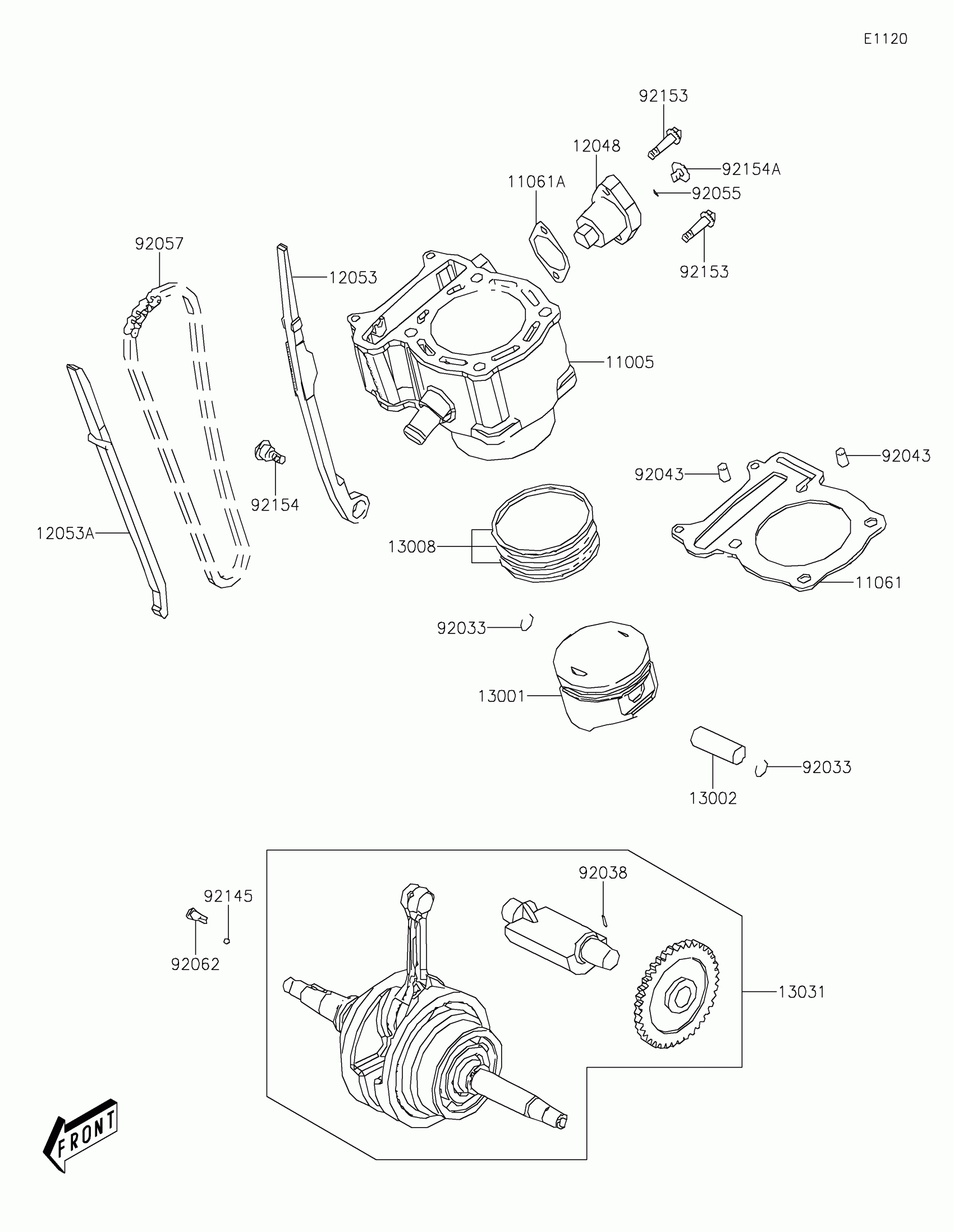

Kawasaki BRUTE FORCE® 300 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-Y003

$258.81

11061

GASKET,CYLINDER BASE

11061-Y027

$9.08

11061A

GASKET,TENSIONER LIFTER

11061-Y070

$2.78

12048

TENSIONER-ASSY

12048-Y005

$45.16

12053

GUIDE-CHAIN,TENSIONER

12053-Y005

$30.18

12053A

GUIDE-CHAIN

12053-Y006

$19.29

13001

PISTON-ENGINE

13001-Y003

$60.76

13002

PIN-PISTON

13002-Y003

$25.44

13008

RING-SET-PISTON

13008-Y003

$93.79

13031

CRANKSHAFT-COMP

13031-Y003

$603.40

92033

RING-SNAP

92033-Y014

$0.96

92038

KEY,WOODRUFF

92038-Y002

$2.18

92043

PIN,10X16

92043-Y013

$1.29

92055

RING-O,1.5X9.5

92055-Y010

$1.02

92057

CHAIN,CAM

92057-Y005

$44.84

92062

NOZZLE

92062-Y001

$5.03

92145

SPRING

92145-Y025

$2.01

92153

BOLT,FLANGE,6X22

92153-Y003

$0.79

92154

BOLT,TENSIONER

92154-Y011

$7.39

92154A

BOLT,6X6

92154-Y122

$2.60
