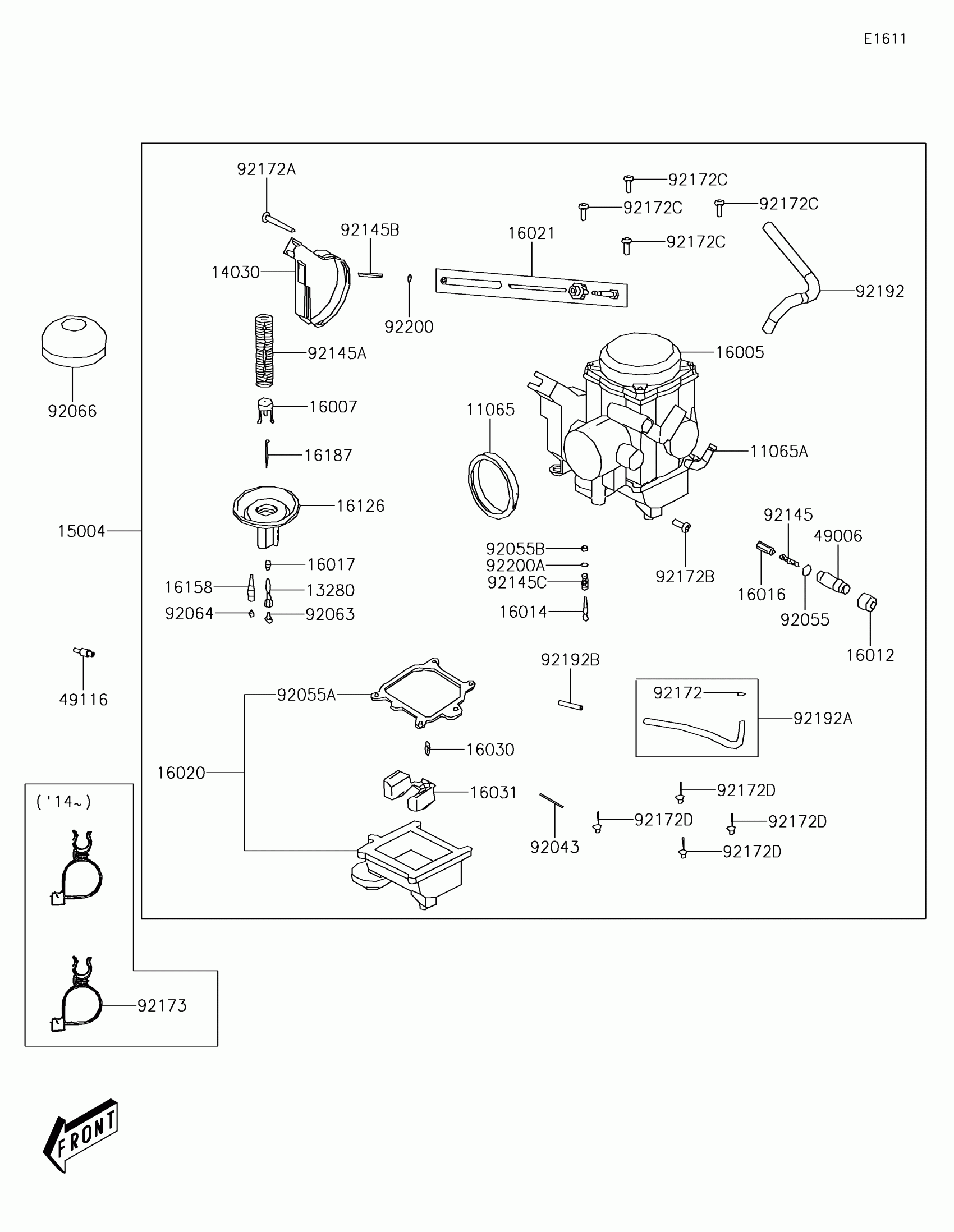

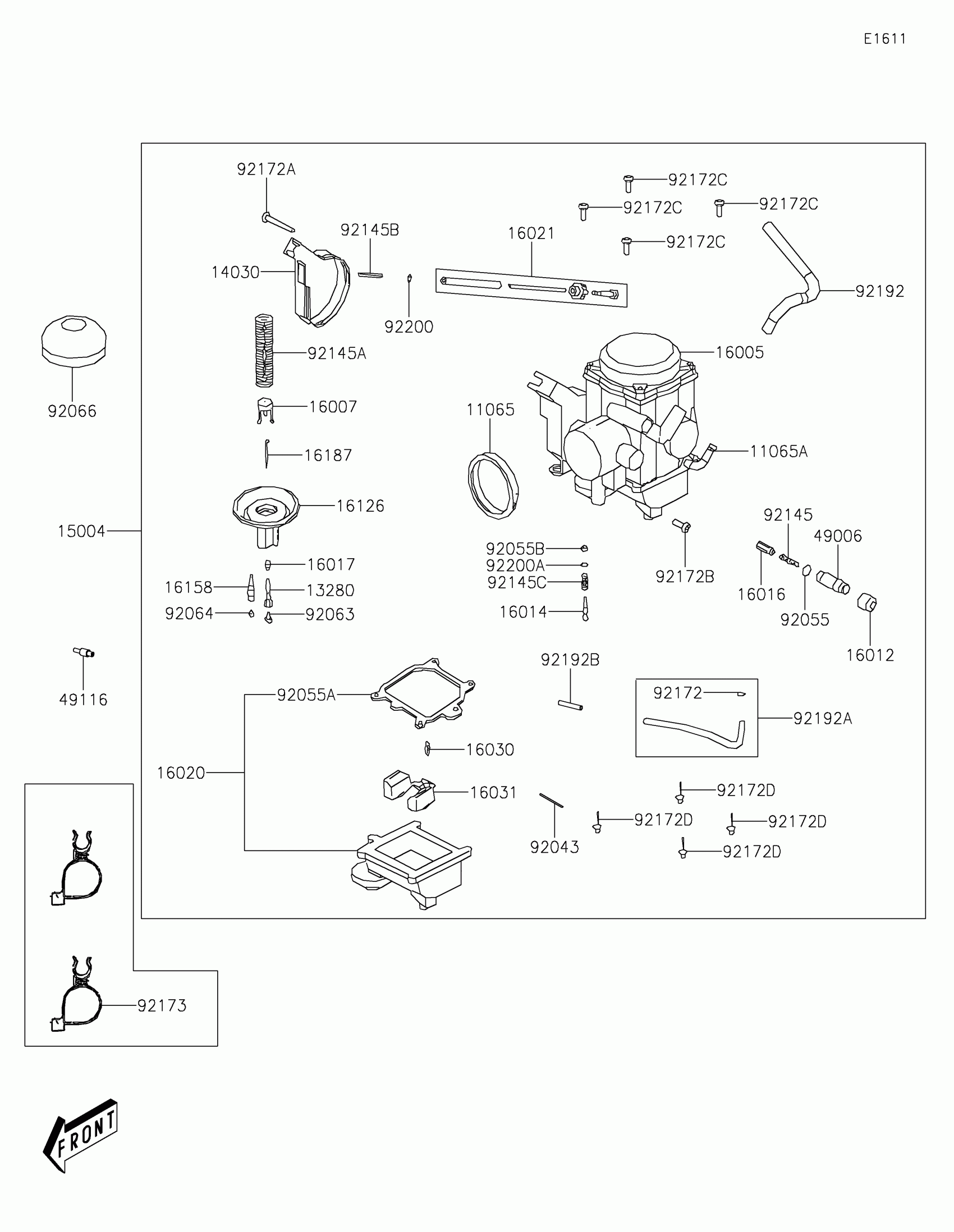

Kawasaki BRUTE FORCE® 300 Carburetor Diagram

#

Description
Price

11065

CAP

11065-Y013

$6.17

11065A

CAP

11065-Y014

$9.32

13280

HOLDER

13280-Y014

$11.89

14030

COVER-CARBURETOR

14030-Y001

$27.61

15004

CARBURETOR-ASSY

15004-Y004

$485.44

16005

TOP-CHAMBER

16005-Y003

$25.02

16007

SEAT-SPRING

16007-Y003

$2.84

16012

CAP-STARTER PLUNGER

16012-Y001

$9.08

16014

SCREW-PILOT AIR

16014-Y002

$10.79

16016

PLUNGER,STARTER

16016-Y002

$11.25

16017

JET-NEEDLE

16017-Y004

$33.37

16020

CHAMBER-FLOAT

16020-Y005

$149.49

16021

SCREW-THROTTLE STOP

16021-Y003

$54.92

16030

VALVE-FLOAT

16030-Y003

$17.12

16031

FLOAT

16031-Y002

$30.60

16126

VALVE,VACUUM

16126-Y003

$97.51

16158

JET-SLOW

16158-Y003

$30.18

16187

NEEDLE-JET

16187-Y003

$45.10

49006

BOOT,STARTER PLUNGER

49006-Y004

$5.94

49116

VALVE-ASSY

49116-1126

$20.77

92043

PIN,FLOAT

92043-Y017

$2.28

92055

RING-O,STARTER PLUNGER

92055-Y027

$1.48

92055A

RING-O,FLOAT CHAMBER

92055-Y028

$4.29

92055B

RING-O

92055-Y029

$1.48

92063

JET-MAIN,#108

92063-Y005

$8.65

92064

JET-PILOT,#60

92064-Y002

$9.92

92066

PLUG

92066-Y008

$1.48

92145

SPRING,PLUNGER

92145-Y031

$2.01

92145A

SPRING,VACUUM VALVE

92145-Y032

$2.84

92145B

SPRING,THROTTLE STOP SCREW

92145-Y033

$3.71

92145C

SPRING

92145-Y034

$2.01

92172

CLAMP

92172-Y023

$1.29

92172A

SCREW,PAN

92172-Y033

$2.28

92172B

SCREW,DRAIN

92172-Y034

$3.39

92172C

SCREW,PAN,4X8

92172-Y035

$3.71

92172D

SCREW,PAN,4X14

92172-Y036

$0.96

92173

CLAMP

92173-Y028

$6.77

92192

TUBE

92192-Y014

$39.23

92192A

TUBE,ASSY

92192-Y024

$7.38

92192B

TUBE,PINK

92192-Y028

$17.79

92200

WASHER

92200-Y037

$2.53

92200A

WASHER

92200-Y038

$3.71
