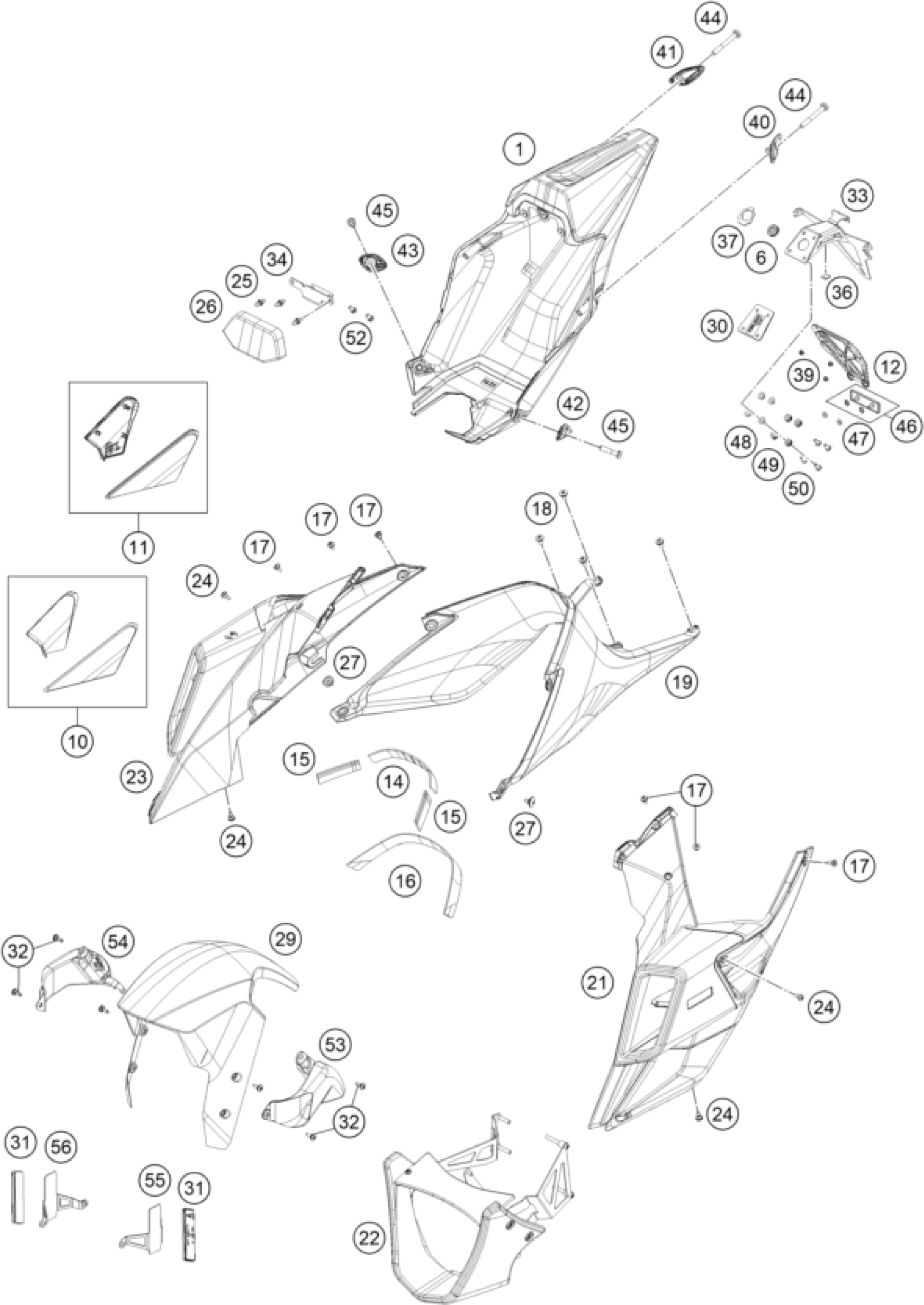

KTM BRABUS 1300 R, white gold 2023 MASK, FENDERS Diagram

#

Description

Price

1

tail section Brabus carbon whi

61708B19344

Unavailable

6

Rubber grommet, standby gas se

60006001023

$5.23

10

Side fairing set

61708B40044

Unavailable

11

Side Cover Set SD-R 20

61708044000

$10.65

12

Bracket for reflector

64112181100

$4.11

14

Cellular rubber 25x180x3

0660002518000

Unavailable

15

Cellular rubber 25x80x3

0660002508000

Unavailable

16

Cellular rubber 30x360x2

0660003036000

Unavailable

17

special screw M5x12

69008021160

$4.11

18

special screw M6x14

69008021040

$2.05

19

Fuel tank fairing, rear, carbo

61708949000

Unavailable

21

wing left cmp.

61708B50333

Unavailable

22

belly pan complete

61708A20044

Unavailable

23

wing right cmp.

61708B51333

Unavailable

24

Special screw, M5x14

69008021260

$2.05

25

Quick lock pin M5

0940000700900

Unavailable

26

Support pad white

61708B19088

Unavailable

27

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

29

Fender white

61708B10144

Unavailable

30

Cover, carbon license plate di

61708019070

Unavailable

31

SIDE REFLECTOR YELLOW "CEV"

60012080100

$6.44

32

Special screw, M5x14

69008021260

$2.05

33

License plate holder support S

61708115000C1

Unavailable

34

Bracket, throttle cable

61707050040

Unavailable

36

Adhesive Cable Mount Clip

90508902010

Unavailable

37

Seal licence plate holder supp

61708115040

Unavailable

39

flanged hex nut EN 1661 M5

06923050003

$1.49

40

Mounting flange top left black

61703002054C1

$32.81

41

Mounting flange top right blac

61703002055C1

$32.72

42

Fastening plate, bottom left

61703902064C1

Unavailable

43

Fastening plate, bottom right

61703902065C1

Unavailable

44

Hex screw w.intern.Torx w.coll

0035080606S

$4.11

45

AH collar screw M8x30 ISA45

0035080306S

$3.08

46

Rear reflector red

58412080400

$5.23

47

RUBBER 14X6.5X2.3MM

60408061050

$5.23

48

SPACER BUSHING

60305083082

$2.05

49

Rubber grommet

0650001301000

Unavailable

50

Roundhead screw, M5x14 TX25

58605083114

$3.08

52

HH collar screw M6x10 TX30

0025060106

$3.08

53

Brake cooling channel, left

61713932000

Unavailable

54

Brake cooling channel, right c

61713933000

Unavailable

55

Bracket, side reflector left

61712082010C1

Unavailable

56

Bracket, side reflector right

61712082020C1

Unavailable
