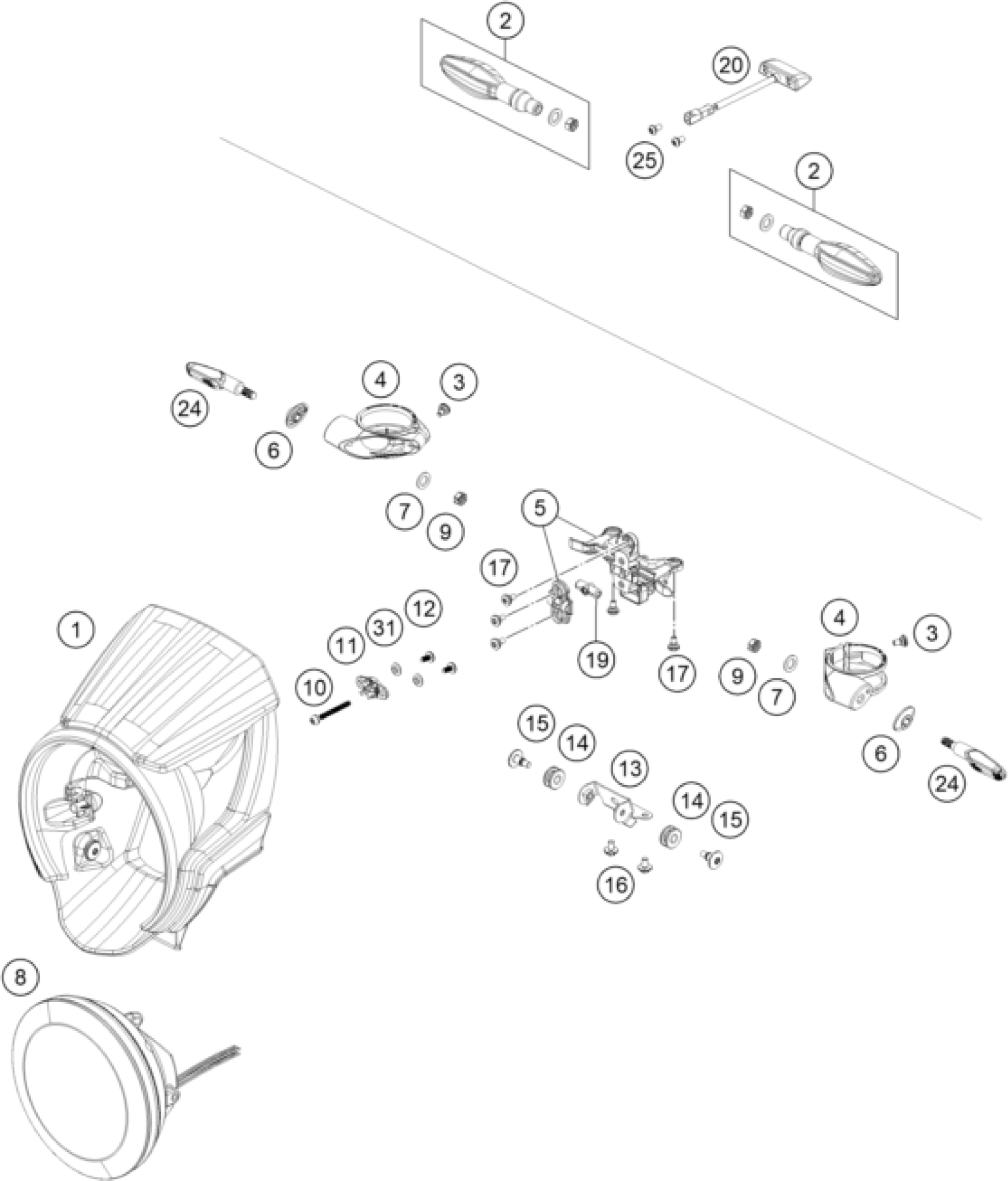

KTM BRABUS 1300 R, black gold 2023 LIGHTING SYSTEM Diagram

#

Description

Price

1

light cover

61708B01333

Unavailable

2

combined turn signal left/righ

61714125000

Unavailable

3

Special screw, M5x14

69008021260

$2.05

4

Turn signal bracket front

61714035100

$37.58

5

Fixation-Set Headlight SD-R 2

61714001030

$33.93

6

Turn signal adapter

61714025010

Unavailable

7

washer DIN 125 A -8.4

0125080003

$1.49

8

Brabus headlight

61714B01000

Unavailable

9

Nut M8x6.4 A2 slotted

09100008006U0

Unavailable

10

EJOT PT SCHRAUBE 50X54

61614020010

$5.23

11

Ballhead holder

61614020100

$13.92

12

EJOT ALTRACS 50X12

61614018100

$1.49

13

Fixing sheet headlight bottom

61714001041C1

$37.30

14

Rubber grommet

61614013150

$2.05

15

Special screw M6x19

0900000601900

$7.75

16

HH collar screw M6x10 TX30

0025060106

$3.08

17

special screw M5x12

69008021160

$4.11

19

Screwshaft

61614019100

$2.05

20

License plate lighting

61914047000

$32.16

24

turn signal front left / rear

61714130000

Unavailable

25

Oval-head screw ISR M4x8-A2-07

0738010400800

$1.49

31

Bush 13X7X3.3

61412032010

$1.49
