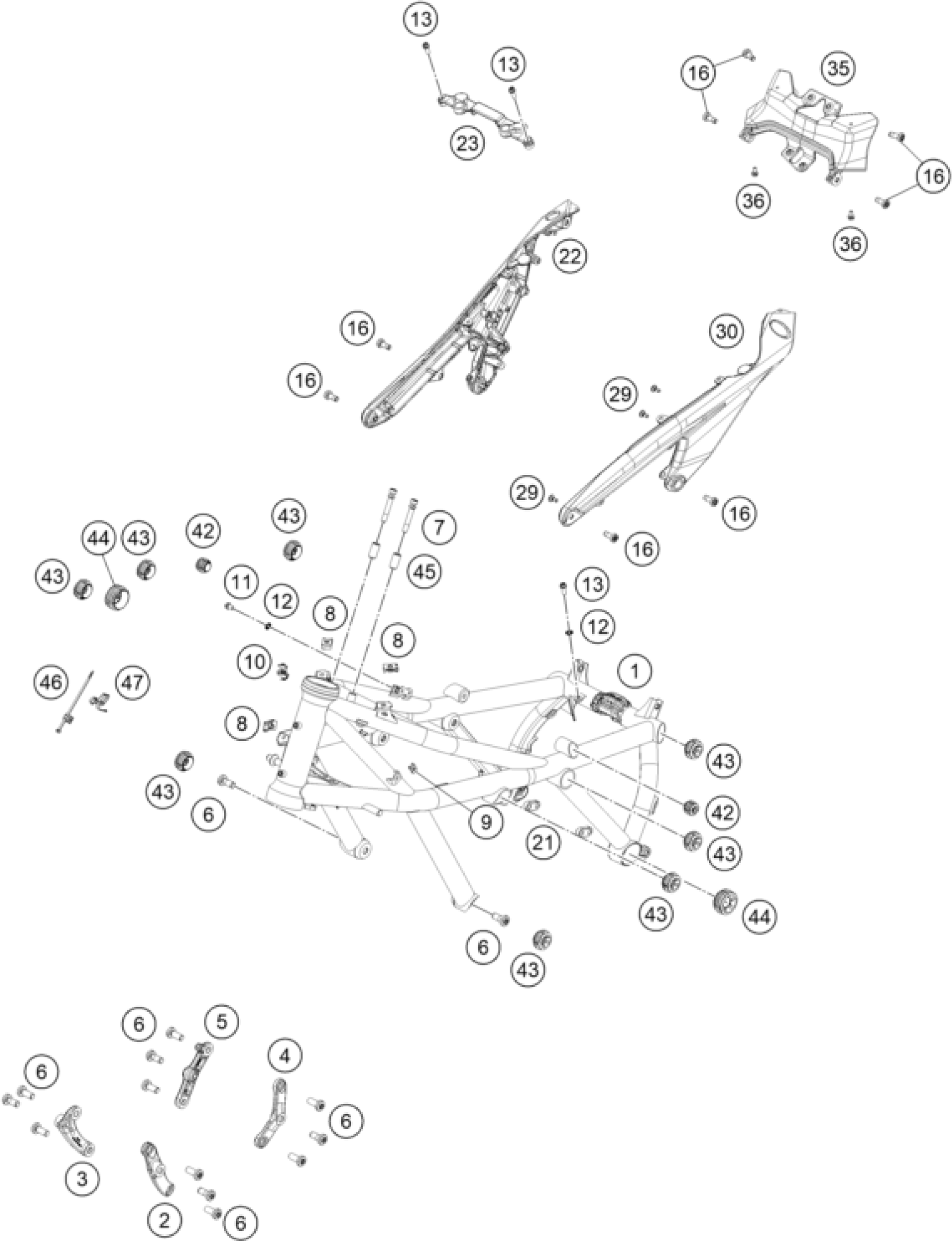

KTM BRABUS 1300 R, black 2022 FRAME Diagram

#

Description

Price

1

Frame 617

61703001200C1

Unavailable

2

Engine hanger front left

61703005000C1

$57.96

3

Engine hanger front right

61703006000C1

$57.96

4

Engine hanger rear left

61703007000C1

$50.76

5

Engine hanger rear right

61703008000C1

$55.72

6

HH collar screw M10x24 ISA45 S

0035100249S

$2.05

7

One-way screw 617

61711064000

$9.72

8

clip nut M6

54603048100

$4.11

9

clip nut M5

69008021080

$3.08

10

Support ABS-pipe d7.5

61342046000

$11.68

11

HH collar screw M6x10 TX30

0025060106

$3.08

12

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

13

HH collar screw M6x16 TX30

0025060166

$3.08

16

SHCS M8x20 TX45

0035080206S

$5.32

21

Footrest bottom fixing nut

61703045010

$24.86

22

Subframe right black

61703002020C1

$422.05

23

Fuel tank bridge

61703002030C1

$72.83

29

Screw, reservoir

69013099150

$2.05

30

Subframe left black

61703002010C1

$422.05

35

Cross rib, black

61703002040C1

$237.20

36

HH collar screw M5x10 TX30

0025050106

$1.49

42

Plug small

61703288000

$2.80

43

Plug, small

61703188000

$2.80

44

Plug, large

61703088000

$3.73

45

Spacing tube ignition lock

61711065000

$5.98

46

Cable tie with foot section

0330000520000

$5.23

47

Frame cover

61703083000

$4.11
