Description

Price

1

TANK, OIL

8R4-21751-00-00

$52.99

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

5

PIPE, JOINT

8H8-24376-00-00

Unavailable

6

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

7

CLIP (8A1)

90467-09026-00

$3.28

8

CLIP (8L2)

90467-08017-00

$10.49

9

HOSE

90446-09003-00

$13.99

10

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

11

TAPE 1

8BD-2173T-00-00

Unavailable

12

TANK, RECOVERY

8V7-21871-00-00

Unavailable

13

BAND, TANK FITTING

8V7-21776-00-00

Unavailable

14

PLUG (17J)

90338-10132-00

Unavailable

15

CLAMP (3Y2)

90464-16039-00

$9.49

16

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

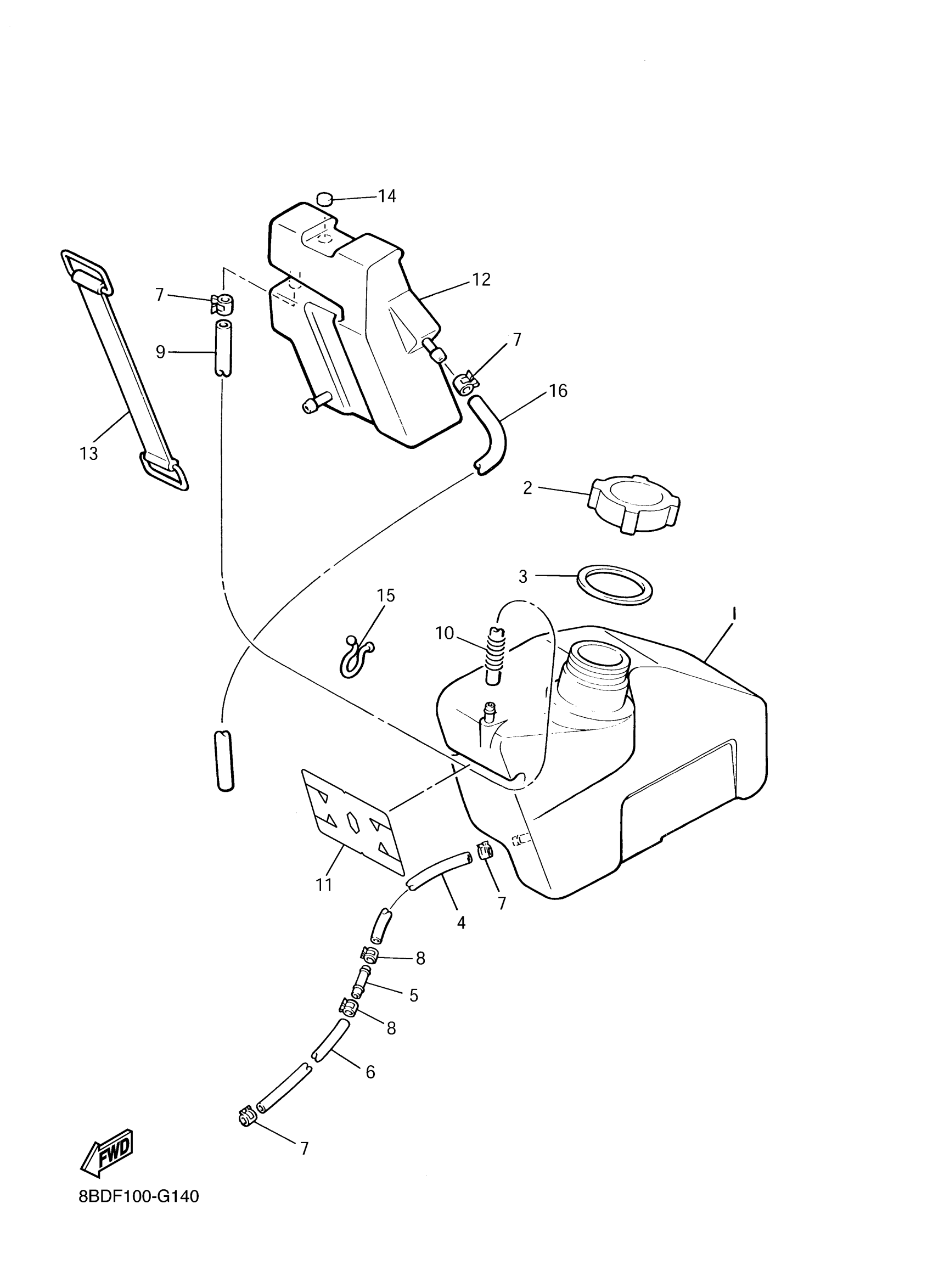

Yamaha BR250TZ (BRAVO T) 8BDK 2010 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

TUBE,FLEXIBLE VINYL(85R)

PIPE, JOINT

TUBE, FLEXIBLE VINYL(8AK)

CLIP (8A1)

CLIP (8L2)

HOSE

SPRING, COMPRESSION(8AF)

TAPE 1

TANK, RECOVERY

BAND, TANK FITTING

PLUG (17J)

CLAMP (3Y2)

TUBE, FLEXIBLE VINYL(8AK)
