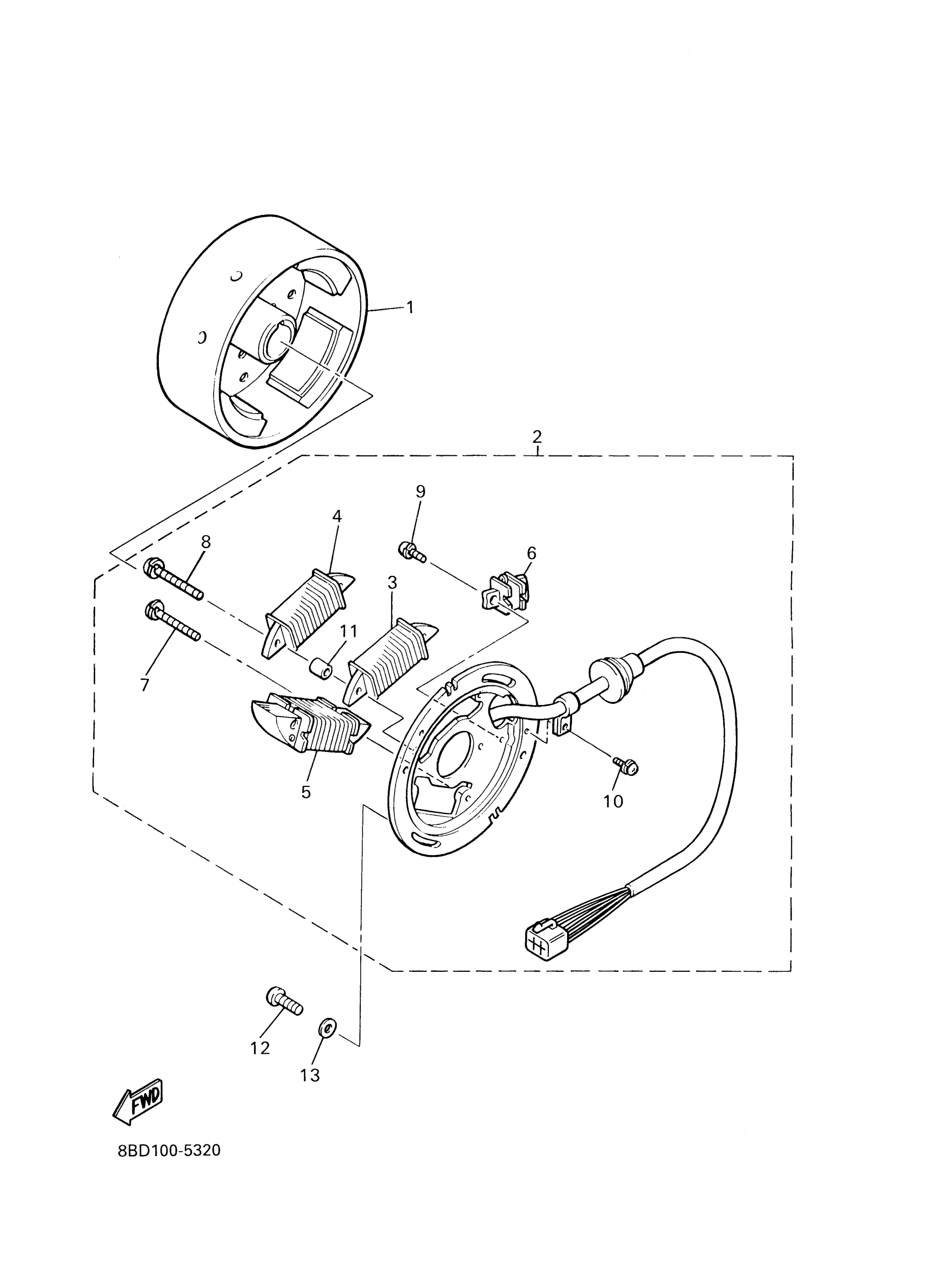

Yamaha BR250TZ (BRAVO T) 8BDK 2010 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

85L-85550-02-00

$229.99

2

BASE ASSY

8BD-85560-01-00

$216.99

3

COIL, CHARGE

81L-85520-M0-00

Unavailable

4

COIL, LIGHTING 2

81L-81314-M0-00

Unavailable

5

COIL, LIGHTING 1

82H-81313-M0-00

Unavailable

6

PULSER ASSY

8R4-85580-M0-00

Unavailable

7

SCREW, WITH WASHER(81E)

90159-05129-00

$2.34

8

SCREW, WITH WASHER(81E)

90159-05130-00

$1.11

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

SCREW, PAN HEAD WITH WASHER

97607-04108-00

$7.49

11

COLLAR (1T2)

90387-07598-00

$5.60

12

SCREW, BIND (705)

98980-06016-00

$8.49

13

WASHER, PLATE 6261117600

90201-06043-00

$7.49
