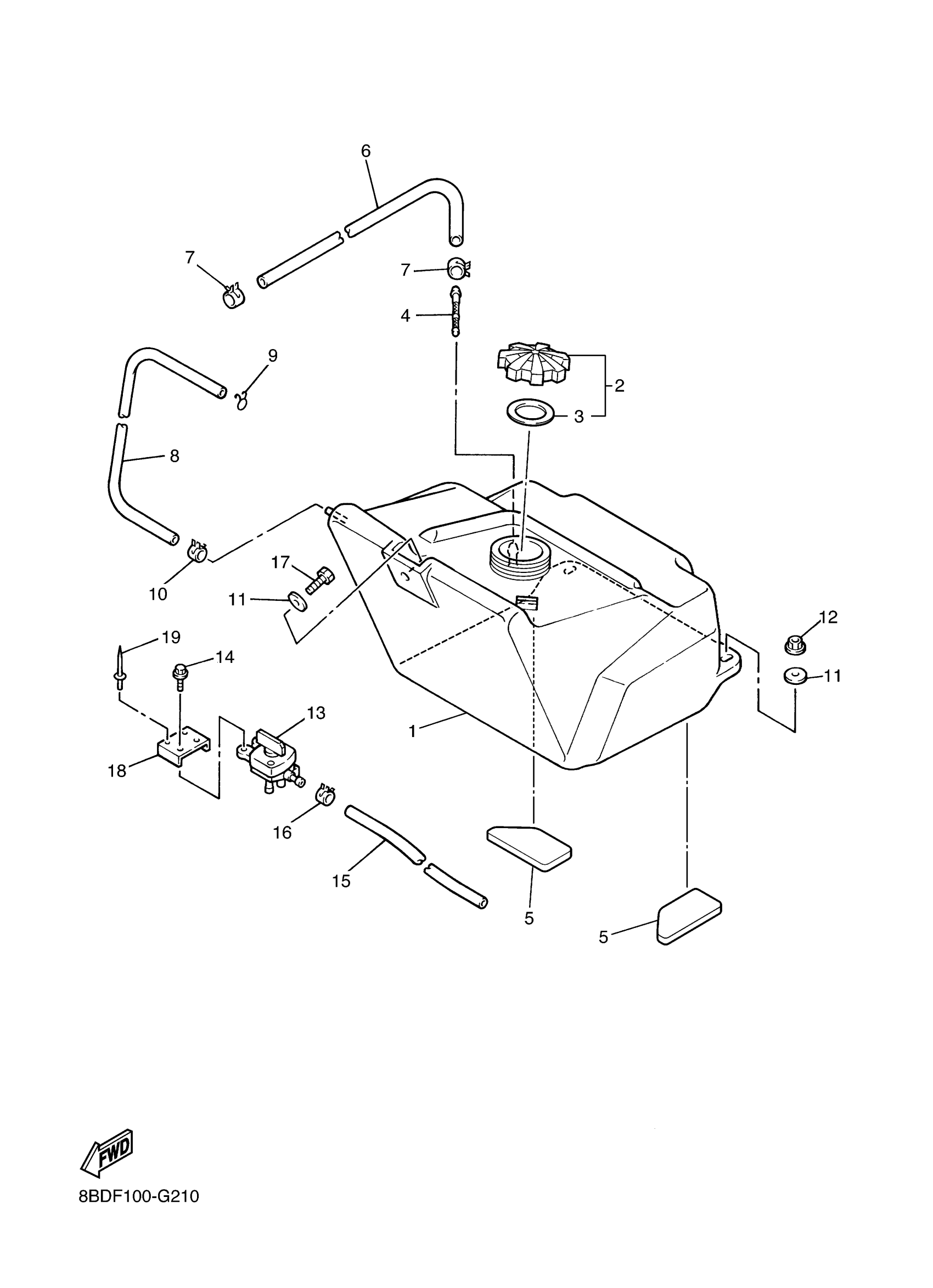

Yamaha BR250TZ (BRAVO T) 8BDK 2010 FUEL TANK 2 Diagram

#

Description
Price

1

TANK, FUEL

8BD-24211-10-00

Unavailable

2

CAP ASSY

8BD-24610-10-00

$44.99

3

GASKET, CAP 1

8BD-24641-10-00

Unavailable

4

NET, FILTER 1

5BM-24514-00-00

$6.99

5

PROTECTOR, FUEL TANK

8BD-24141-00-00

Unavailable

6

PIPE 2

8BD-24312-00-00

Unavailable

7

CLIP

90467-11028-00

Unavailable

8

HOSE

90445-09032-00

Unavailable

9

CLIP (8L2)

90467-08017-00

$10.49

10

CLIP (8A1)

90467-09026-00

$3.28

11

WASHER, PLATE (3L7)

90201-08784-00

$3.23

12

NUT, NYLON

95717-08300-00

$2.70

13

FUEL COCK ASSY 1

8BD-24500-00-00

Unavailable

14

BOLT, FLANGE

95817-06008-00

$8.49

15

PIPE 3

8BD-24313-00-00

Unavailable

16

CLIP

90467-11028-00

Unavailable

17

BOLT, HEXAGON

97017-08020-00

Unavailable

18

BRACKET, FUEL COCK

8BD-24544-00-00

Unavailable

19

RIVET, BLIND(3JB)

90267-48095-00

Unavailable
