Partiron

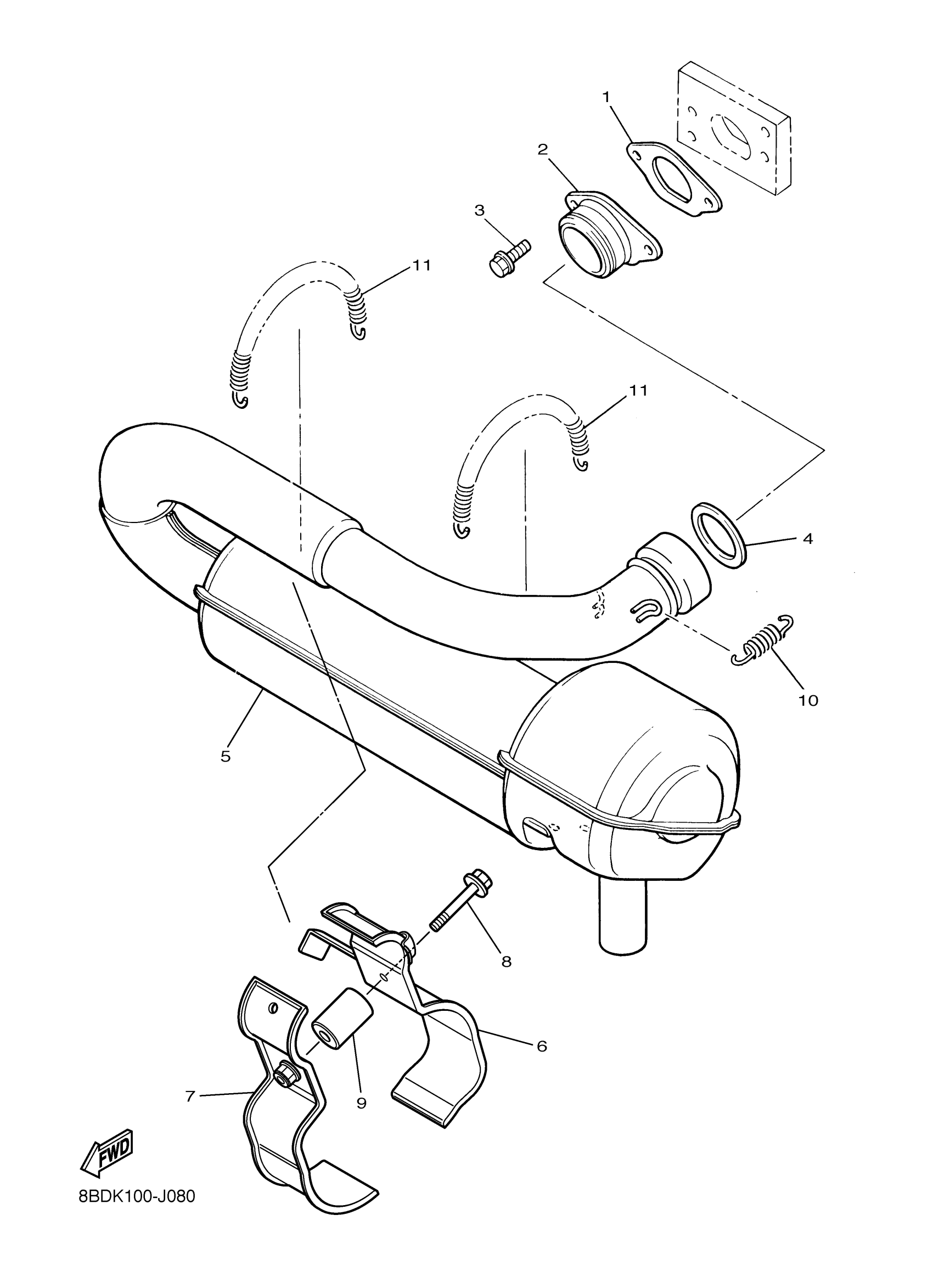

Yamaha BR250TZ (BRAVO T) 8BDK 2010 EXHAUST Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

8R4-14613-01-00

$18.79

2

NUT, RING

8R4-14612-01-00

Unavailable

3

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

4

RING

888-14633-00-00

$6.03

5

MUFFLER ASSY 1

8BD-14710-00-00

Unavailable

6

. BAND, MUFFLER

8BD-14715-00-00

Unavailable

7

. BAND, MUFFLER

8BD-14725-00-00

Unavailable

8

BOLT, FLANGE(87Y)

95817-10055-00

$4.24

9

COLLAR

90387-10044-00

$15.44

10

SPRING, HOOK (864)

90506-20074-00

$7.23

11

SPRING, TENSION (8BU1)

90506-16494-00

$5.80
