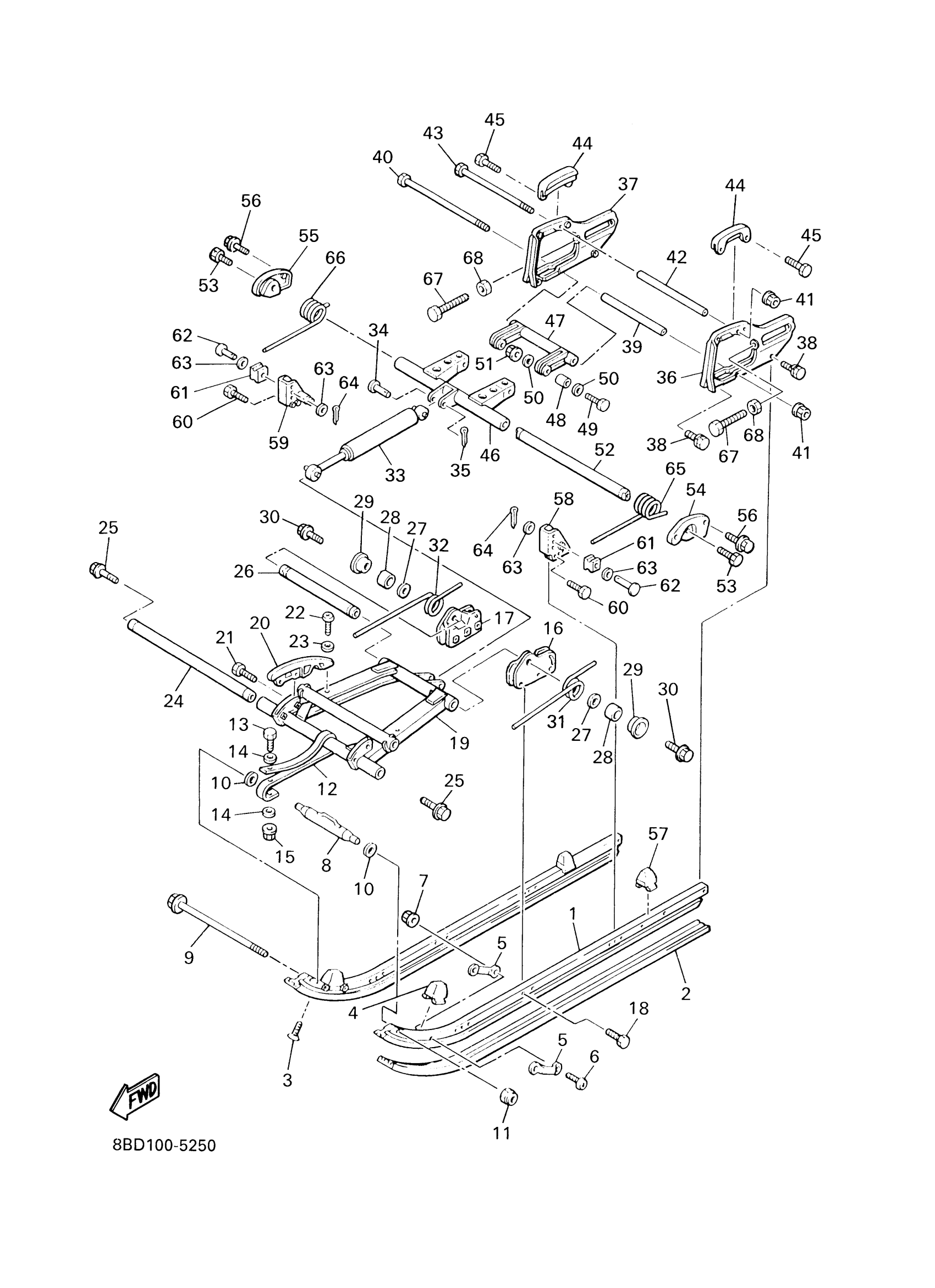

Yamaha BR250TY (BRAVO T) 8BDH 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING 1

80E-47411-00-00

Unavailable

2

RUNNER, SLIDING 1

8X0-47421-00-XX

$16.58

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

4

DAMPER 1

888-47456-01-00

$8.78

5

PLATE, DAMPER

885-47458-01-00

Unavailable

6

BOLT, HEXAGON

97027-05035-00

Unavailable

7

NUT, NYLON

95707-05300-00

$2.74

8

BRACKET 1

899-47415-00-00

Unavailable

9

BOLT,FLANGE

95827-08260-00

Unavailable

10

WASHER (1T1)

90201-08649-00

$6.29

11

NUT, SELF-LOCKING

90185-08169-00

$7.09

12

STOPPER 1

888-47495-02-00

$41.20

13

BOLT(21W)

97017-06035-00

$2.91

14

WASHER, PLATE

90201-06747-00

$6.17

15

NUT, NYLON

95707-06300-00

$3.20

16

BRACKET 2

85A-47416-00-00

$25.42

17

BRACKET 7

85A-47419-00-00

$25.42

18

BOLT(21W)

97017-06035-00

$2.91

19

ARM, PIVOT 1

89D-47331-00-00

$249.58

20

RUNNER, SLIDING 2

8G8-47422-00-00

$14.68

21

BOLT, HEXAGON

97017-06020-00

$2.55

22

SCREW, PAN

98517-06020-00

$1.82

23

WASHER(6TA)

92907-06600-00

$0.78

24

SHAFT 1

8A5-47465-02-00

$46.62

25

BOLT (8V0)

90109-10771-00

$5.00

26

SHAFT 3

8A5-47485-02-00

Unavailable

27

WASHER PLATE 256234440000

90201-10149-00

$6.68

28

COLLAR

90387-106L3-00

Unavailable

29

COLLAR(8Y1)

90387-206L2-00

$3.91

30

BOLT, FLANGE

95817-10080-00

$5.00

31

SPRING,FRONT.1

80E-47471-01-00

$95.88

32

SPRING,FRONT.2

80E-47472-01-00

Unavailable

33

SHOCK ABSORBER

8E7-47480-01-00

$209.42

34

PIN, CLEVIS(8N0)

90240-12115-00

$16.35

35

PIN COTTER

91490-30025-00

Unavailable

36

FRAME, SLIDING 2

8E3-47412-00-00

$57.54

37

FRAME, SLIDING 3

8E3-47413-00-00

$60.97

38

BOLT, WITH WASHER

90119-08008-00

Unavailable

39

COLLAR (899 SUSPENSION)

90387-08496-00

$9.91

40

BOLT (8M8)

90101-08374-00

$15.98

41

NUT, NYLON

95717-08300-00

$2.57

42

COLLAR (899 SUSPENSION)

90387-08497-00

$12.38

43

BOLT, HEXAGON

97027-08250-00

Unavailable

44

RUNNER, SLIDING

8E3-47422-00-00

$17.09

45

BOLT, WITH WASHER(2WG)

90119-06172-00

$5.83

46

ARM, PIVOT 2

8A5-47332-00-00

Unavailable

47

BRACKET 3

8A5-47417-00-00

$34.14

48

COLLAR (8A5 SUSPENSION)

90387-08508-00

$5.77

49

BOLT(3HN)

97017-08045-00

$5.80

50

WASHER (1T1)

90201-08649-00

$6.29

51

NUT, NYLON

95717-08300-00

$2.57

52

SHAFT 2

8A5-47475-02-00

$27.91

53

BOLT (8V0)

90109-10771-00

$5.00

54

BRACKET, REAR 1

8A5-47425-00-00

$21.54

55

BRACKET, REAR 1

8A5-47426-00-00

Unavailable

56

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

57

DAMPER 2

8L1-47457-01-00

$15.43

58

BRACKET 5

8T9-47463-00-00

$64.45

59

BRACKET 6

8T9-47464-00-00

Unavailable

60

BOLT(21W)

97017-06035-00

$2.91

61

HOOK 2

890-47447-00-00

$4.35

62

PIN WITH HOLE (890)

90249-12113-00

$8.37

63

WASHER, PLATE

90201-12047-00

$7.54

64

PIN, COTTER

91401-30025-00

$6.18

65

SPRING, TORSION 3(8E7)

90508-99331-00

$38.86

65

SPRING, TORSION

90508-99649-00

Unavailable

66

SPRING, TORSION 4(8E7)

90508-99332-00

$38.86

66

SPRING, TORSION

90508-99650-00

Unavailable

67

BOLT, HEXAGON (8E3)

90101-10314-00

$6.29

68

NUT (2Y5)

90179-10279-00

$6.09
