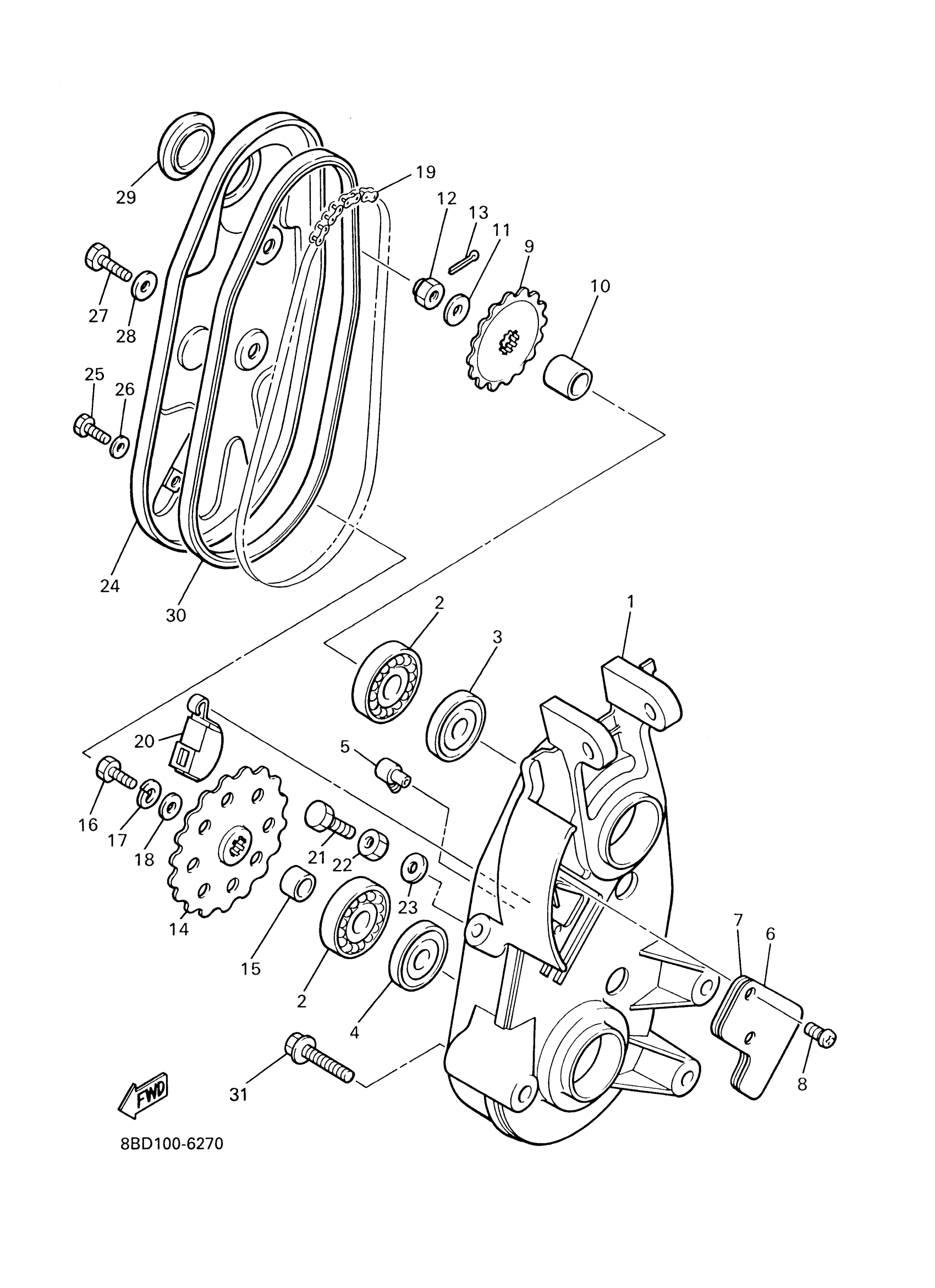

Yamaha BR250TY (BRAVO T) 8BDH 2009 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8R4-47541-00-00

$247.32

2

BRG,R-B 6304 52MM 144G NT

93306-30407-00

$58.51

3

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

4

OIL SEAL(4BA)

93102-20447-00

$8.92

5

BREATHER

89B-47586-00-00

$23.32

6

PLATE

8R4-47591-00-00

Unavailable

7

GASKET

86A-47592-00-00

Unavailable

8

SCREW, BINDING

98907-05016-00

$6.18

9

SPROCKET,CHAIN DRIVE (10T)

812-17682-00-00

$21.26

9

SPROCKET, CHAIN DRIVE (11T)

812-17682-10-00

Unavailable

9

SPROCKET, CHAIN DRIVE(12T)

812-17682-20-00

Unavailable

9

SPROCKET,CHAIN DRIVE(13T)

812-17682-30-00

$12.35

9

SPROCKET, CHAIN DRIVE (14T)

812-17682-40-00

Unavailable

10

COLLAR (8R4)

90387-197E9-00

$10.05

11

WASHER, PLATE (35T)

90201-122H1-00

$6.82

12

NUT, HEXAGON

95337-12600-00

$6.00

13

PIN, COTTER(6L5)

91490-25030-00

$2.85

14

SPROCKET, CHAIN DRIVEN

8BC-47548-10-00

Unavailable

14

SPROCKET, CHAIN DRIVEN

8BC-47548-20-00

$25.14

14

SPROCKET, CHAIN DRIVEN

8BC-47548-30-00

Unavailable

14

SPROCKET, CHAIN DRIVEN

8BC-47548-40-00

$39.37

15

COLLAR

90387-200F1-00

Unavailable

16

BOLT, HEXAGON

97017-08025-00

$7.46

17

WASHER(6TA)

92907-08600-00

$2.52

18

WASHER, PLATE (4W3)

90201-086A3-00

$6.29

19

CHAIN, DRIVE (8R4)

94580-01044-00

$22.85

20

TENSIONER

8F3-47611-02-00

$24.51

21

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

22

NUT (3WP1)

95317-10700-00

$6.17

23

WASHER SEAL 256111730200

90210-10004-00

$4.11

24

CAP, HOUSING

8R4-47543-00-00

Unavailable

25

BOLT(3JP)

97017-06010-00

$2.62

26

WASHER, SEAL (7G5)

90210-06006-00

$5.72

27

BOLT, HEXAGON

97017-08020-00

$6.38

28

WASHER (821)

90210-08002-00

$5.68

29

CAP

148-22315-00-00

$6.40

30

RING, HOUSING

8R4-47558-01-00

Unavailable

31

BOLT, WASHER BASED

90105-084A1-00

$9.38
