Partiron

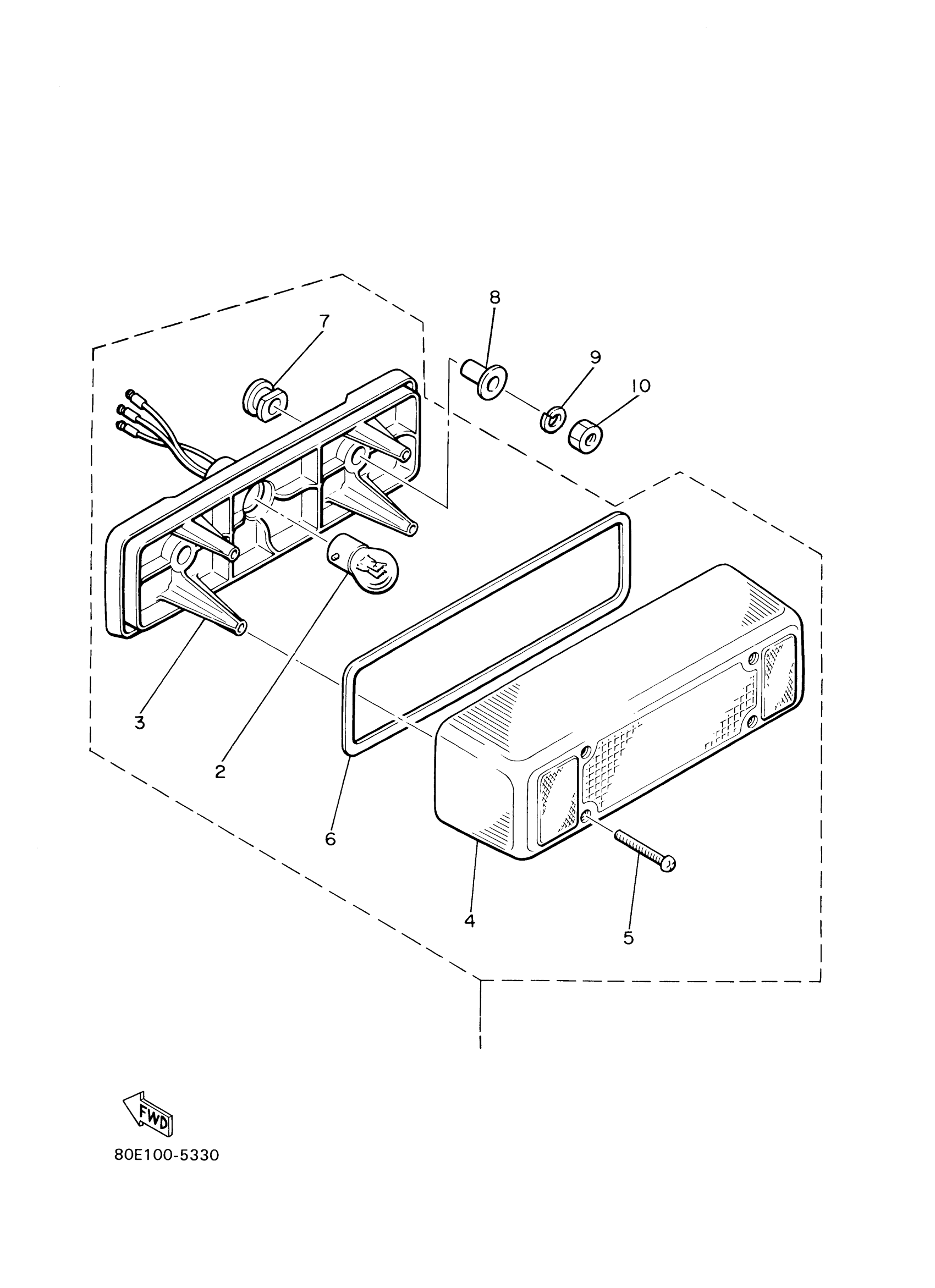

Yamaha BR250TY (BRAVO T) 8BDH 2009 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

8K4-84710-01-00

$71.98

2

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

3

BASE, TAILLIGHT

8K4-84711-01-00

$24.69

4

LENS, TAILLIGHT

8K4-84721-01-00

$37.66

5

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.51

6

SEAL

3TJ-14457-00-00

$17.62

7

GROMMET

8K4-84718-00-00

Unavailable

8

COLLAR

90387-06166-00

$10.20

9

WASHER, SPRING

92907-06100-00

$1.00

10

NUT(6TA)

95317-06600-00

$2.69
