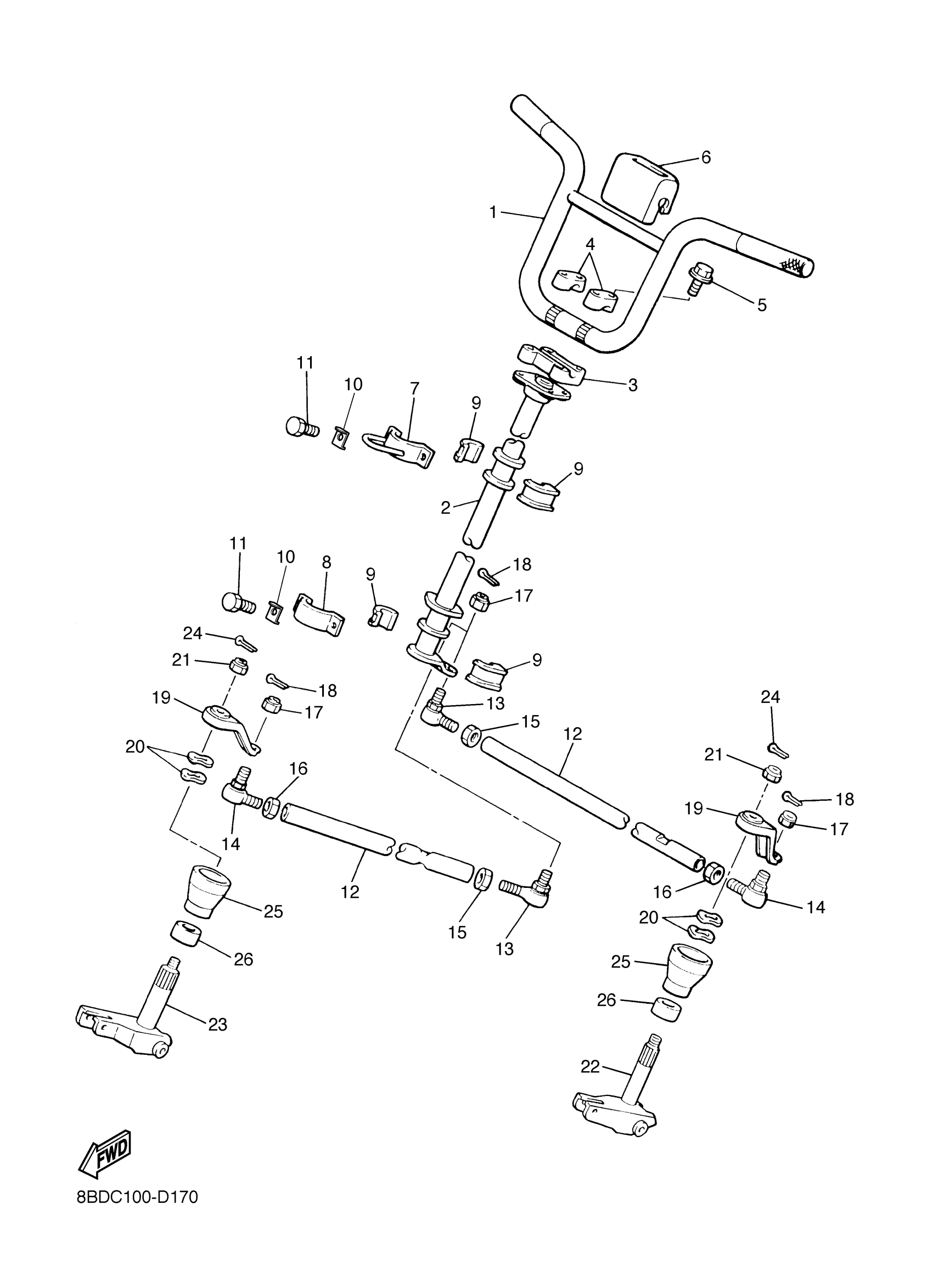

Yamaha BR250TY (BRAVO T) 8BDH 2009 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

86A-23811-90-00

$90.17

2

COLUMN, STEERING 2

8R4-23813-00-00

$123.18

3

HANDLE, HOLDER

164-23441-01-98

$25.75

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

5

BOLT, FLANGE

95817-08055-00

$2.82

6

COVER, STEERING

8F3-23818-00-00

$21.86

7

HOLDER, BEARING

84M-23872-00-00

$16.78

8

BRACKET, STEERING LOWER

84M-23868-00-00

$32.05

9

BEARING, STEERING

8F3-23812-00-00

$12.49

10

WASHER, LOCK 1

8AC-23894-01-00

$3.62

11

BOLT

90101-08005-00

$4.26

12

ROD, STEERING RELAY

8R4-23821-00-00

Unavailable

13

JOINT, UNIVERSAL 1

86X-23841-00-00

$51.36

14

JOINT, UNIVERSAL 2

86X-23845-00-00

$54.20

15

NUT (3WP1)

95317-10700-00

$6.17

16

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

$2.57

18

PIN, COTTER

91490-25020-00

$2.94

19

ARM, OUTSIDE 1

88P-23851-00-00

Unavailable

20

WASHER, WAVE (878)

90206-20037-00

Unavailable

21

NUT, NYLON

95707-10300-00

$6.68

22

COLUMN, SKI 1

8Y1-23853-00-00

Unavailable

23

COLUMN, SKI 2

8Y1-23854-00-00

Unavailable

24

PIN, COTTER

91490-25020-00

$2.94

25

COVER 2

8U0-2198G-00-00

Unavailable

26

SPACER

8Y1-21998-00-00

Unavailable
