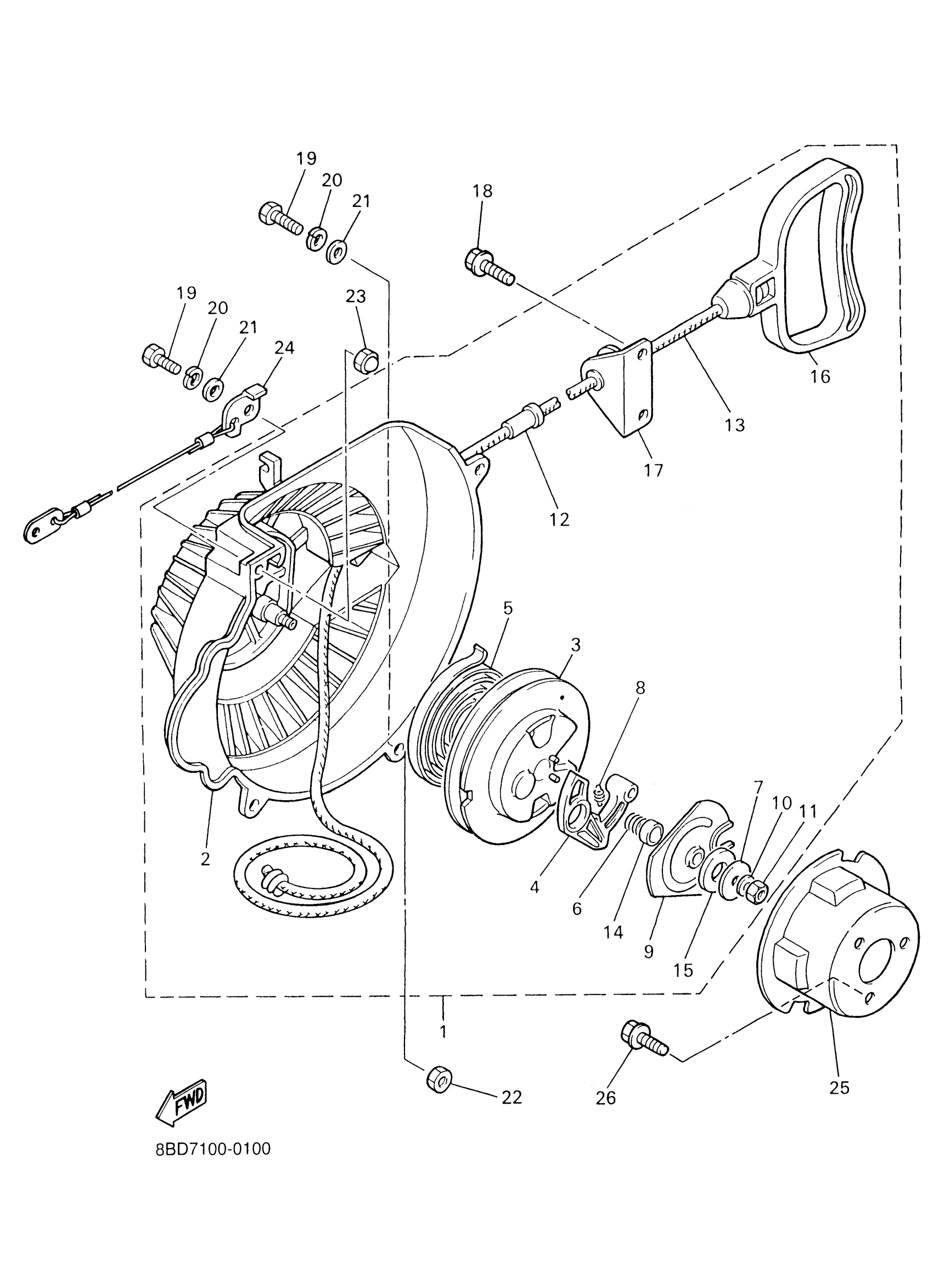

Yamaha BR250TY (BRAVO T) 8BDH 2009 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8R4-15710-01-00

$311.59

2

CASE, STARTER

8R4-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$43.62

4

PAWL, DRIVE

8F3-15741-01-00

$20.12

5

SPRING, STARTER

8F3-15713-01-00

$39.64

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$8.75

7

WASHER, THRUST

8F3-15739-01-00

$10.54

8

SPRING, RETURN

8F3-15734-00-00

$4.90

9

PLATE, DRIVE

8F3-15716-03-00

$21.99

10

WASHER, SPRING

92995-06100-00

$3.04

11

NUT(650)

95380-06700-00

$5.75

12

GUIDE, ROPE

8F3-15758-00-00

$16.34

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

14

COLLOR

82M-15779-00-00

$6.57

15

WASHER, THRUST

8G5-15739-00-00

$6.63

16

HANDLE, STARTER

8F3-15755-00-00

Unavailable

17

. HOLDER, HANDLE

8R4-15788-01-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

19

BOLT, HEXAGON

97017-06025-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

NUT(6TA)

95317-06600-00

Unavailable

23

NUT (J17)

95380-06800-00

Unavailable

24

STOPPER, SHROUD

8R4-77118-00-00

Unavailable

25

PULLEY, STARTER

81L-15723-00-00

Unavailable

26

BOLT, FLANGE

95817-08012-00

Unavailable
