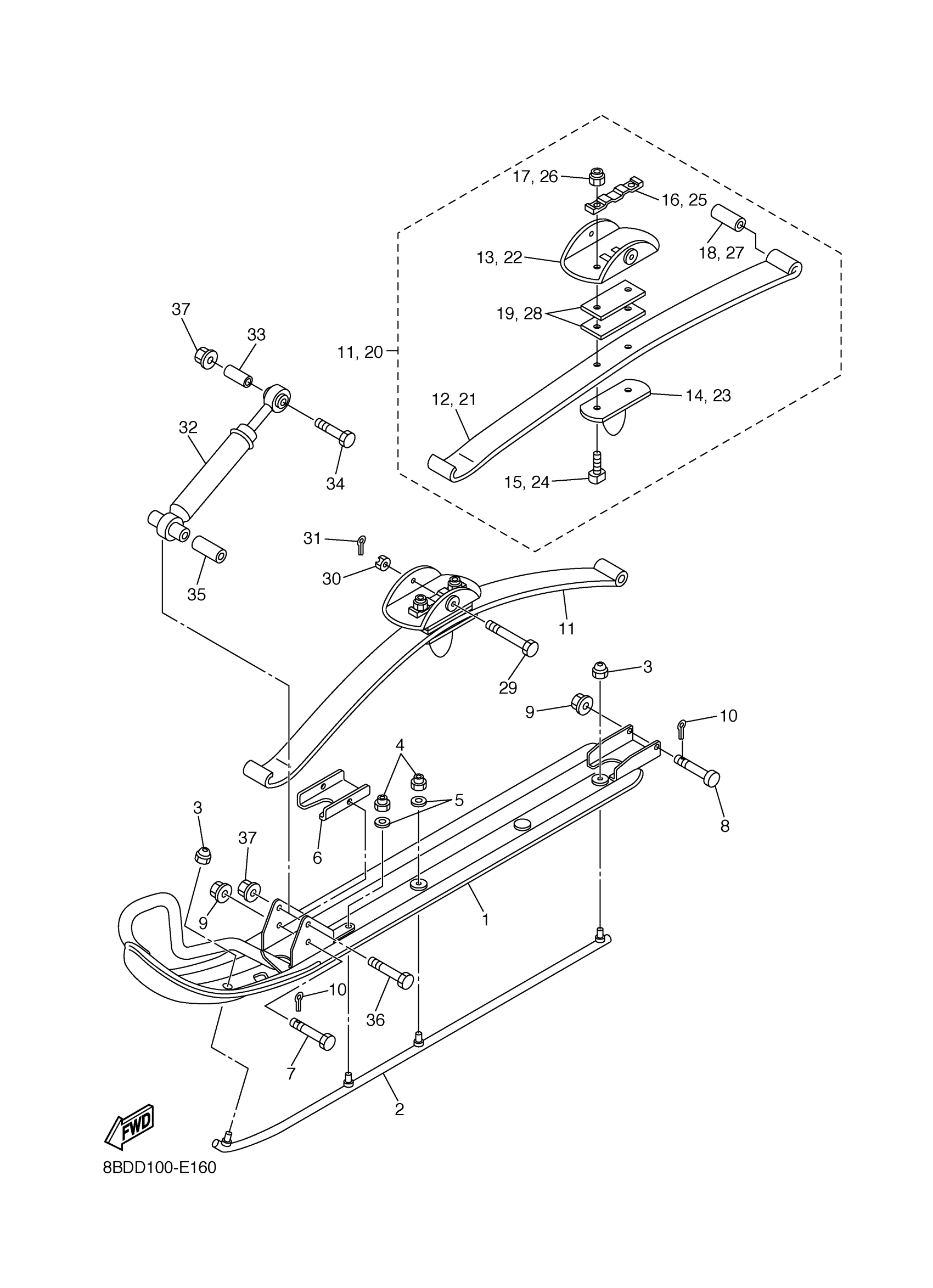

Yamaha BR250TY (BRAVO T) 8BDH 2009 SKI Diagram

#

Description
Price

1

SKI COMP. 1

8BD-23710-00-00

$211.28

2

RUNNER 1

8E3-23731-01-00

$32.20

3

NUT, SELF-LOCKING

90185-08169-00

$7.09

4

NUT

90185-08055-00

$8.31

5

WASHER(6TA)

92907-08600-00

$2.52

6

PLATE, WEAR

888-23735-00-00

$60.09

7

BOLT PIN HOLE HEXAGON(8E6)

90102-08028-00

$8.14

8

BOLT, PIN HOLE (8A7)

90102-08027-00

$7.35

9

NUT, NYLON

95717-08300-00

$2.57

10

PIN, COTTER (648)

91490-20015-00

$1.85

11

SPRING ASSY 1

8BD-23760-00-00

$312.78

12

. LEAF 1

8BD-23761-00-00

Unavailable

13

SADDLE

8G6-23766-00-00

$32.37

14

. SEAT, SPRING 1

878-23768-00-00

$18.71

15

. BOLT

8BD-23767-00-00

Unavailable

16

WASHER, ROCK (8J5)

90215-10155-00

$11.66

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

$2.57

18

BUSH

8BD-2376B-00-00

$26.58

19

. SPACER

8BD-23787-00-00

Unavailable

20

SPRING ASSY 2

8BD-23770-00-00

$312.78

21

. LEAF 1

8BD-23761-00-00

Unavailable

22

SADDLE

8G6-23766-00-00

$32.37

23

. SEAT, SPRING 1

878-23768-00-00

$18.71

24

. BOLT

8BD-23767-00-00

Unavailable

25

WASHER, ROCK (8J5)

90215-10155-00

$11.66

26

NUT, SELF-LOCKING (8J8)

90185-10085-00

$2.57

27

BUSH

8BD-2376B-00-00

$26.58

28

. SPACER

8BD-23787-00-00

Unavailable

29

BOLT, PIN HOLE (8G6)

90102-12030-00

$11.28

30

NUT, CASTLE

95307-12900-00

$5.85

31

PIN, COTTER

91401-30025-00

$6.18

32

CUSHION ASSY

8J6-23350-00-00

$145.14

33

COLLAR (878)

90387-08262-00

$9.02

34

BOLT, HEXAGON

97017-08055-00

$6.88

35

COLLAR (864)

90387-08224-00

$7.52

36

BOLT(6TC)

97027-08070-00

$6.88

37

NUT, NYLON

95717-08300-00

$2.57
