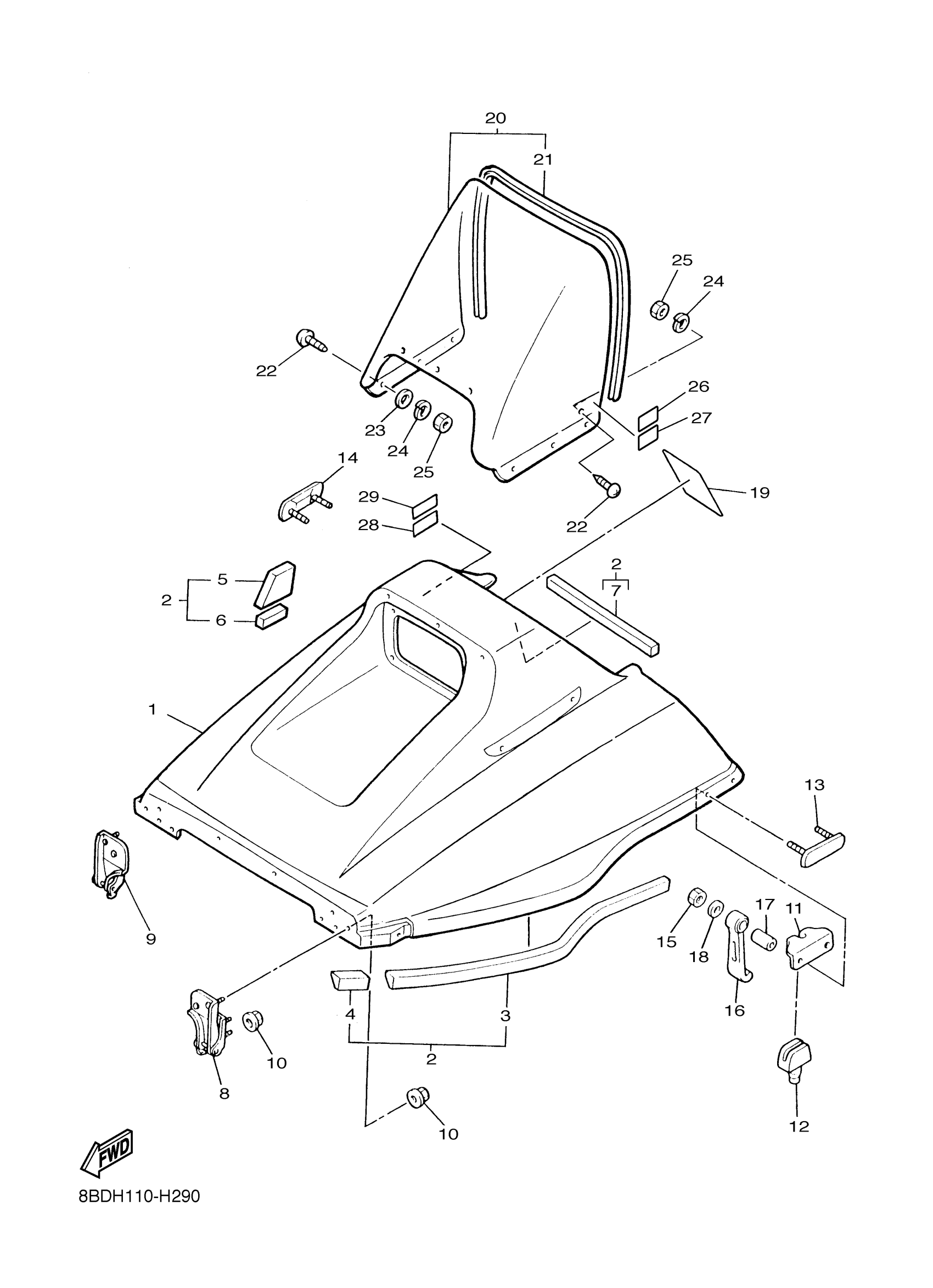

Yamaha BR250TY (BRAVO T) 8BDH 2009 SHROUD WINDSHIELD Diagram

#

Description
Price

1

SHROUD

8BD-77111-30-00

Unavailable

2

LINING SET

8BD-W7726-01-00

Unavailable

3

PATCH 5

8X8-21965-00-00

$4.77

4

PATCH 6

80F-21966-00-00

Unavailable

5

LINING, SHROUD 1

80F-77261-00-00

$2.42

6

DAMPER, PLATE

90520-30005-00

$0.25

7

DAMPER, PLATE

90520-15005-00

$1.71

8

HINGE ASSY

8R4-77140-00-00

$28.25

9

HINGE ASSY 2

8R4-7714A-00-00

$28.25

10

NUT, FLANGE(4MV)

95707-06500-00

$0.78

11

CLAMP 2

8R4-77136-00-00

Unavailable

12

STOPPER

8R4-77188-00-00

$17.28

13

PLATE 1

80F-77185-00-00

Unavailable

14

PLATE 2

80F-77186-00-00

$16.51

15

NUT, SELF-LOCKING

95617-06100-00

$2.32

16

BODY, LATCH 1

8R4-77171-00-00

$21.98

17

COLLAR 849833160000

90387-06027-00

$6.68

18

WASHER, PLATE

90201-06380-00

$0.57

19

LABEL, WARNING 1

87S-77761-10-00

Unavailable

20

WINDSHIELD COMP.

80J-77210-10-00

$304.92

21

TRIM,UPPER

87K-77213-00-00

Unavailable

22

SCREW, TAPPING (8R4)

90164-05007-00

$3.13

23

WASHER, PLAIN LARGE

92907-05200-00

$4.09

24

WASHER(3SX)

92907-05100-00

$6.18

25

NUT, HEXAGON

95317-05600-00

$1.10

26

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.25

27

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-10-00

Unavailable

28

LABEL,1

8AF-47578-00-00

$5.71

29

LABEL,CAUTION

8AE-1417E-00-00

$5.71
