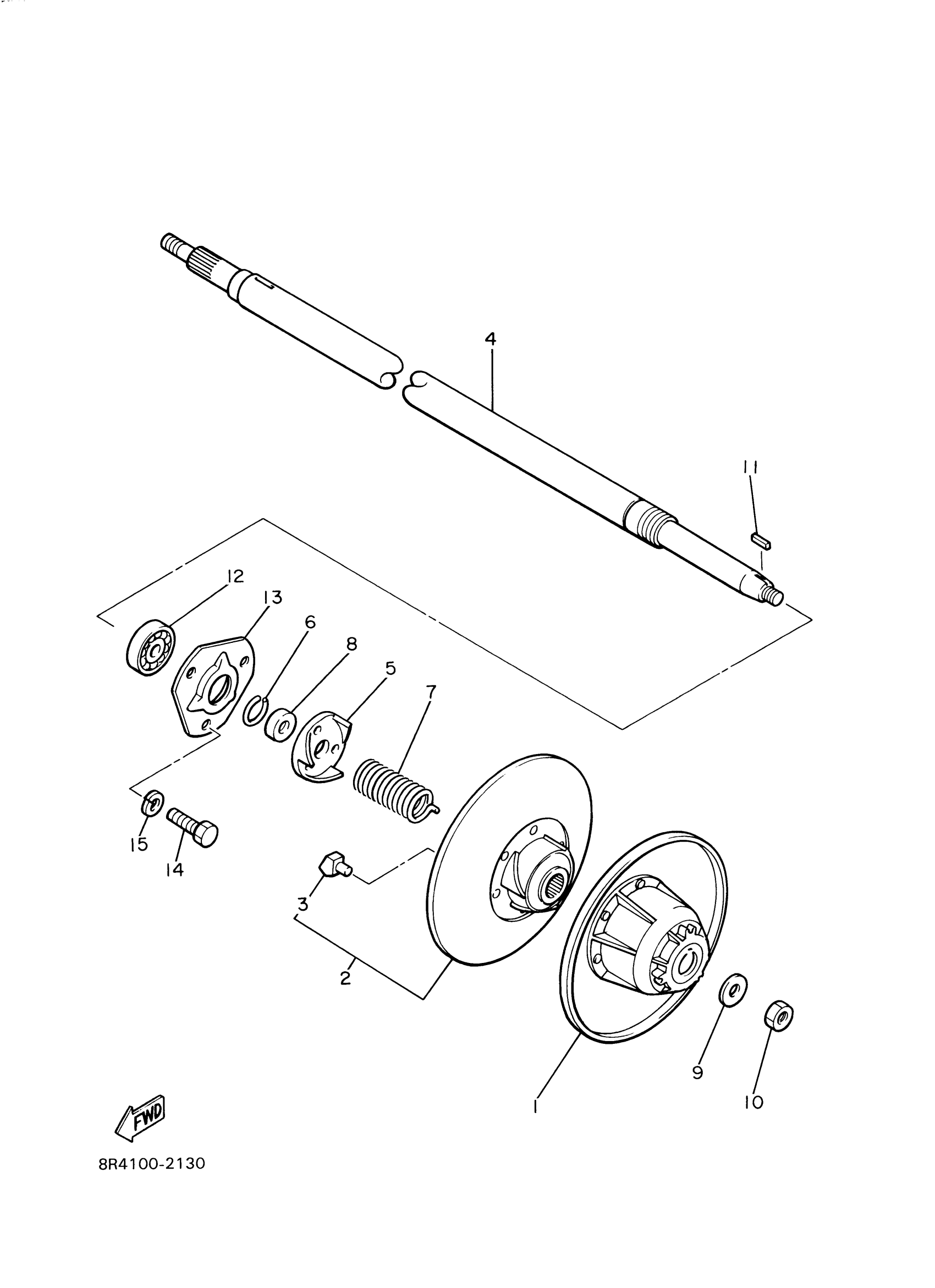

Yamaha BR250TY (BRAVO T) 8BDH 2009 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

8R4-17660-00-00

$191.03

SECONDARY SLIDING SHEAVE

8R4-17670-01-00

Unavailable

SHOE, RAMP

8R4-17688-00-00

$8.80

SHAFT, SECONDARY

8R4-17681-01-00

Unavailable

SEAT, SECONDARY SPRING

8R4-17684-00-00

Unavailable

CIRCLIP (8R4)

93440-25100-00

$2.20

SPRING TORSION 806176830000

90508-40080-00

$13.51

COLLAR(85L)

90387-260W3-00

Unavailable

WASHER, PLATE (35T)

90201-122H1-00

$6.82

NUT, SELF LOCKING (23X)

90185-12119-00

$8.63

KEY, STRAIGHT (8R4)

90282-05047-00

$8.31

BEARING(83R)

93306-20582-00

$48.01

HOUSING, BEARING

8R4-47631-00-00

Unavailable

BOLT, HEXAGON

97017-08016-00

$6.20

WASHER(6TA)

92907-08600-00

$2.52
