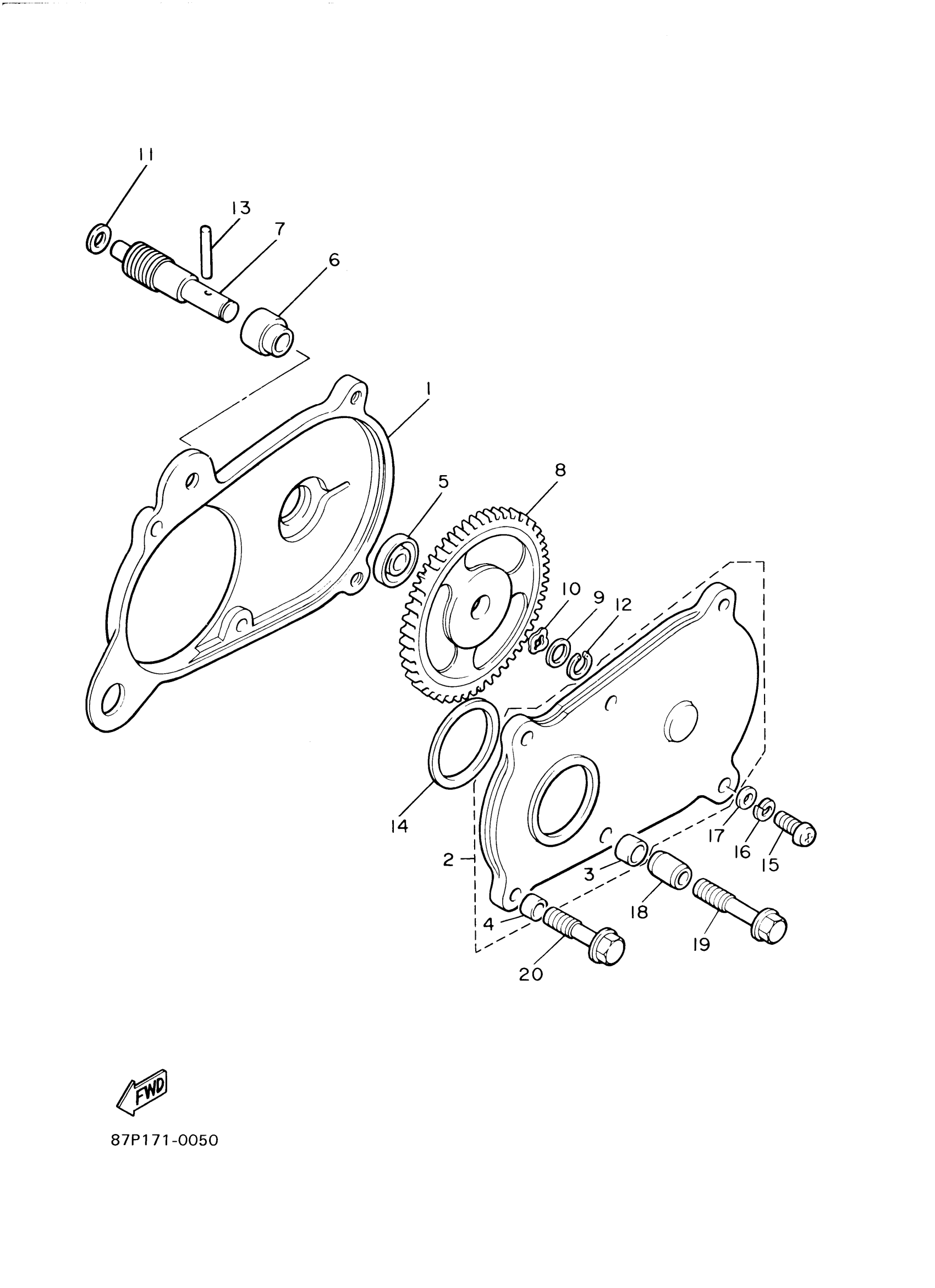

Yamaha BR250TY (BRAVO T) 8BDH 2009 PUMP DRIVE GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

8R4-15416-00-00

Unavailable

2

COVER, OIL PUMP 2

8R4-15426-00-00

$17.31

3

COLLAR(8R4)

90387-082N1-00

$2.20

4

COLLAR(8R4)

90387-062N2-00

$6.94

5

OIL SEAL (J10)

93101-10090-00

$6.17

6

METAL, WORM SHAFT OUTER

821-13176-00-00

$6.33

7

SHAFT, WORM

8R4-13175-00-00

$23.06

8

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

9

PLATE, CAM THRUST

137-13148-00-00

$3.28

10

WASHER, WAVE (137)

90206-11016-00

$12.72

11

WASHER, PLATE (1E7)

90201-08624-00

$7.09

12

CIRCLIP(10W)

99009-10400-00

$3.91

13

PIN,DOWEL (137)

93603-22028-00

$2.13

14

OIL SEAL (8R4)

93104-29072-00

$6.31

15

SCREW, PAN

98517-06020-00

$1.82

16

WASHER, SPRING

92907-06100-00

$1.00

17

WASHER(6TA)

92907-06600-00

$0.78

18

PIN, DOWEL(8AH)

91808-22019-00

$6.86

19

BOLT, FLANGE

95817-06030-00

$3.91

20

BOLT, FLANGE

95817-06025-00

$1.46
