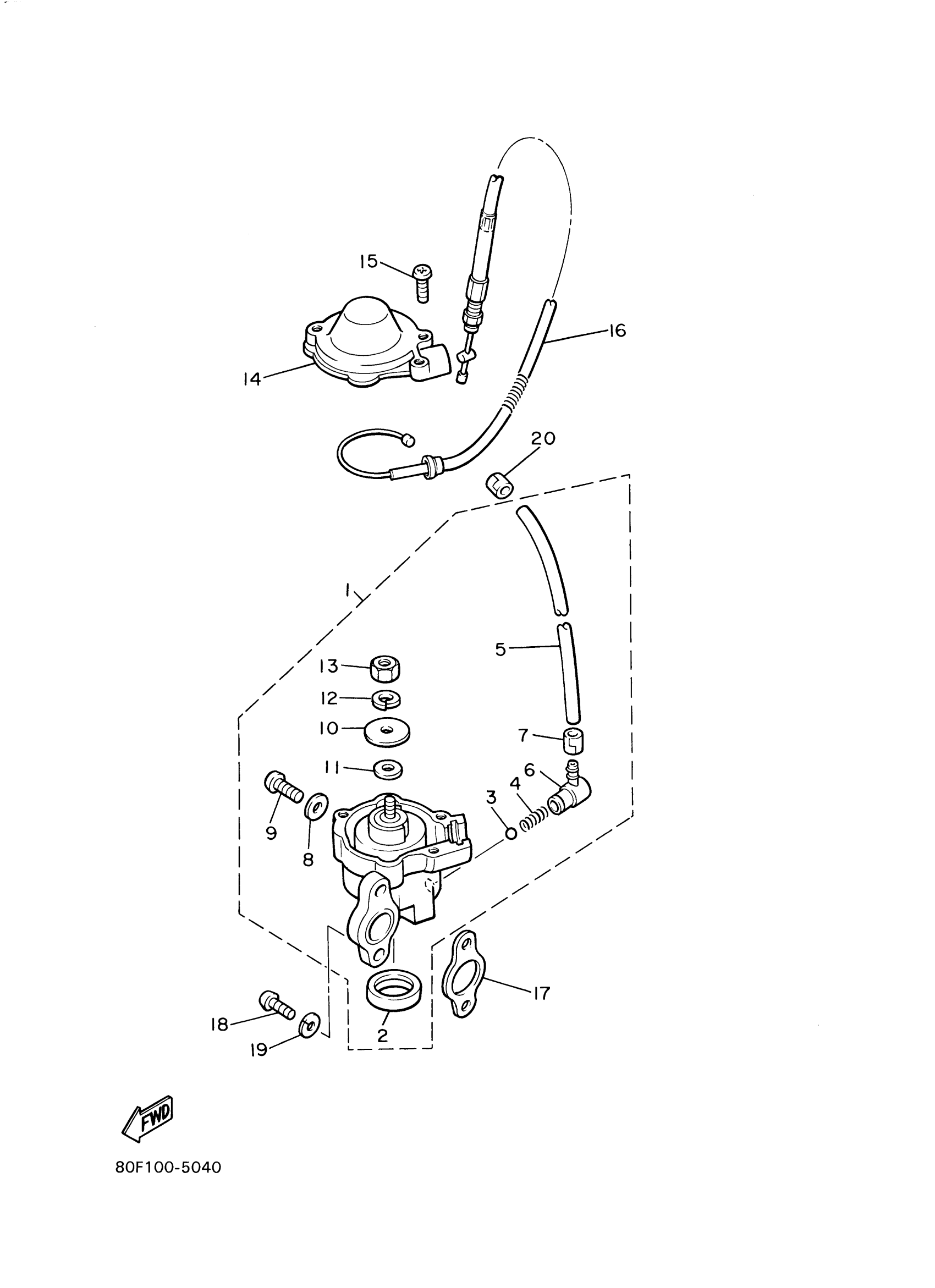

Yamaha BR250TY (BRAVO T) 8BDH 2009 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

81E-13101-01-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.22

4

SPRING, CHECK BALL (451)

90501-02217-00

$5.62

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

6

NOZZLE

353-13552-01-00

$9.03

7

CLIP (2A6)

90468-02025-00

$7.02

8

GASKET 137131870000

90430-04004-00

$6.86

9

SCREW, BINDING

98907-04008-00

$0.42

10

PLATE, ADJUSTING

137-13138-01-00

$12.17

11

SHIM,PLUNGER

137-13137-00-03

$5.35

11

SHIM,PLUNGER

137-13137-00-05

$5.32

11

SHIM,PLUNGER

137-13137-00-10

$6.43

12

WASHER(3SX)

92907-05100-00

$6.18

13

NUT, HEXAGON

95317-05600-00

$1.10

14

COVER, ADJUST PULLEY

8A5-13146-01-00

$15.95

15

SCREW, PAN HEAD

98507-04018-00

$1.23

16

PUMP CABLE ASSY

81E-26320-00-00

$51.48

17

GASKET, PUMP CASE

126-13116-01-00

$6.92

18

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

19

WASHER(3SX)

92907-05100-00

$6.18

20

CLIP (2A6)

90468-02025-00

$7.02
