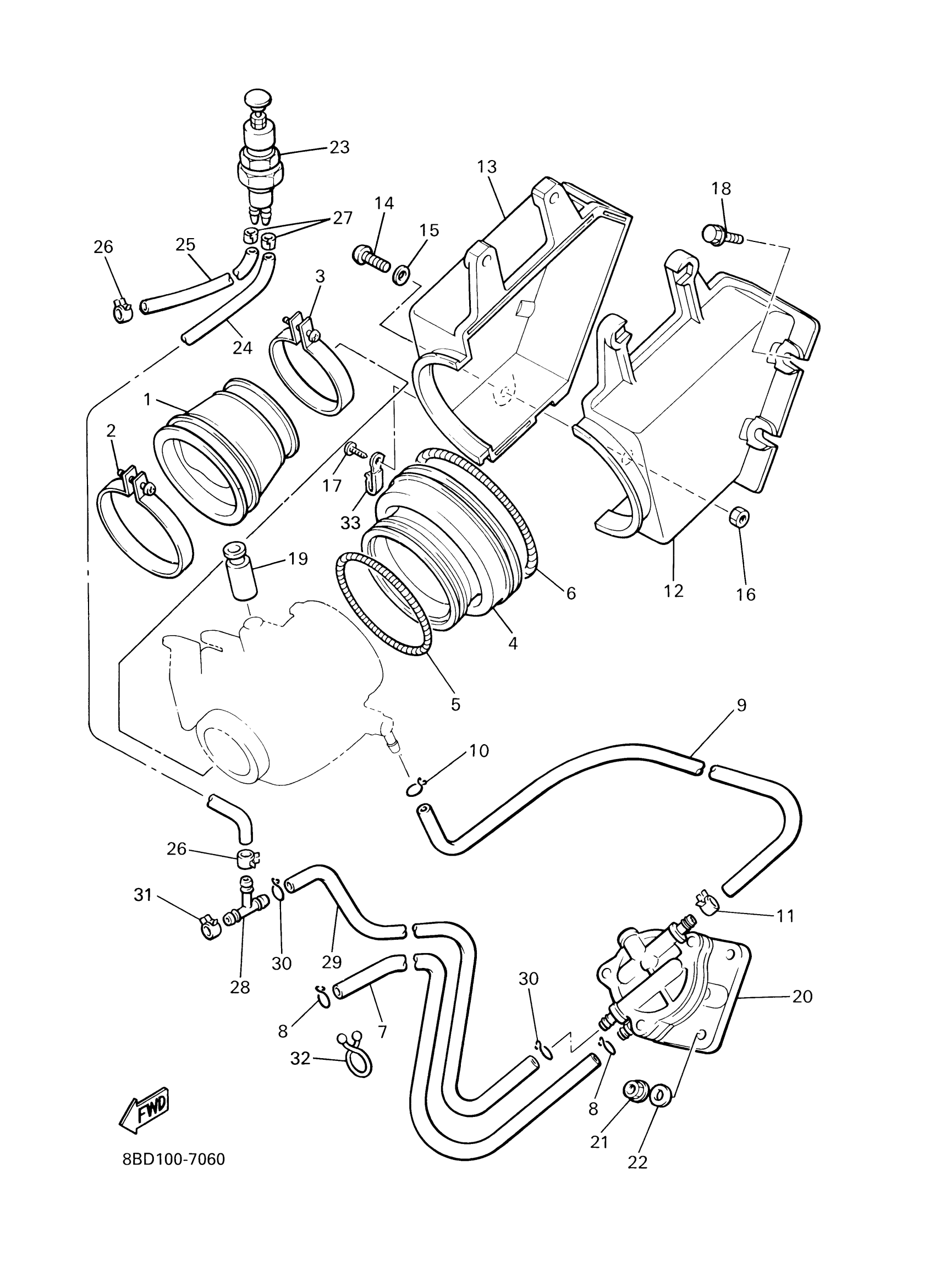

Yamaha BR250TY (BRAVO T) 8BDH 2009 INTAKE Diagram

#

Description
Price

1

MANIFOLD, INTAKE

8R4-13555-00-00

$43.42

2

HOSE CLAMP ASSY

90450-64004-00

$12.00

3

CLAMP HOSE 304144550000

90460-51059-00

$14.64

4

JOINT, AIR CLEANER 1

8R4-14453-00-00

$32.53

5

SPRING, TENSION (8R4)

90506-06261-00

$6.94

6

SPRING, TENSION (8R4)

90506-06262-00

$5.74

7

HOSE

90445-11046-00

$33.95

8

CLIP (7K7)

90467-11044-00

$5.10

9

PIPE

8BD-14298-00-00

$17.15

10

CLIP (8J7)

90467-11009-00

$7.55

11

CLIP (7K7)

90467-11044-00

$5.10

12

SILENCER, INTAKE 1

8R4-14431-00-00

Unavailable

13

SILENCER 2

8R4-14441-01-00

$26.23

14

SCREW, PAN HEAD(4MY)

98507-05025-00

$6.18

15

WASHER(1RW)

92907-05600-00

$0.78

16

NUT, NYLON

95707-05300-00

$2.74

17

SCREW, PAN TAP.2

97707-60510-00

$0.33

18

BOLT, WITH WASHER

90119-05071-00

$6.52

19

BOOT

8J5-26352-00-00

Unavailable

20

FUEL PUMP ASSY

8A5-24410-02-00

$161.42

21

NUT, FLANGE(4MV)

95707-06500-00

$0.78

22

WASHER, PLATE (8H9)

90201-06727-00

$6.45

23

PRIMER PUMP ASSY

8X8-24360-01-00

$127.32

24

HOSE

90445-08031-00

Unavailable

25

HOSE

90445-08032-00

Unavailable

26

CLIP(42X)

90467-07093-00

$1.72

27

CLIP (2A6)

90468-02025-00

$7.02

28

PIPE, JOINT

815-24379-00-00

$19.74

29

HOSE

8BD-14294-00-00

$19.31

30

CLIP (8J7)

90467-11009-00

$7.55

31

CLIP (7K7)

90467-11044-00

$5.10

32

CLAMP (3Y2)

90464-16039-00

$8.35

33

CLAMP(83Y)

90465-08333-00

Unavailable
