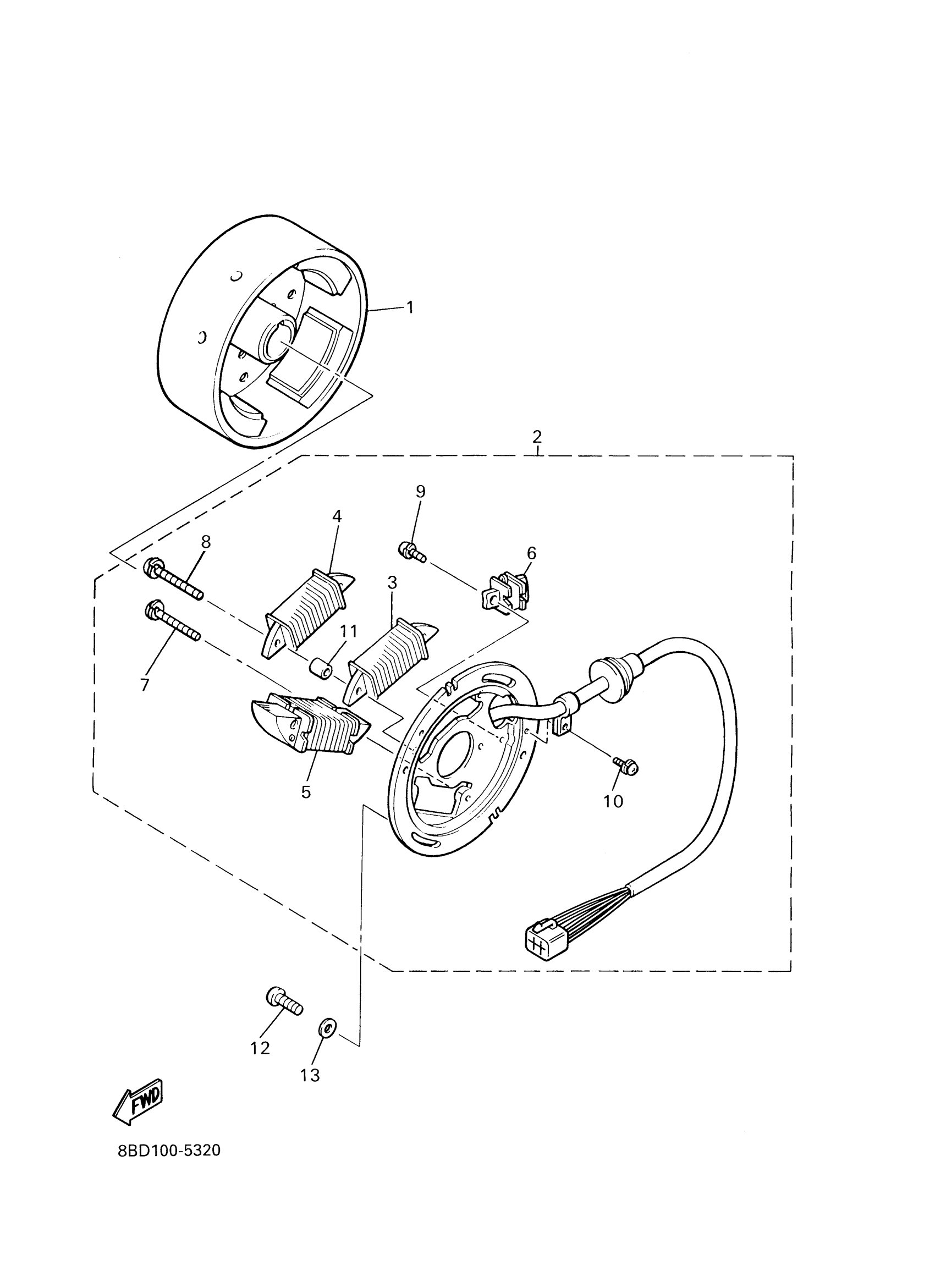

Yamaha BR250TY (BRAVO T) 8BDH 2009 GENERATOR Diagram

ROTOR ASSY

85L-85550-02-00

$261.66

BASE ASSY

8BD-85560-01-00

Unavailable

COIL, CHARGE

81L-85520-M0-00

$94.88

COIL, LIGHTING 2

81L-81314-M0-00

$95.42

COIL, LIGHTING 1

82H-81313-M0-00

$82.72

PULSER ASSY

8R4-85580-M0-00

$148.80

SCREW, WITH WASHER(81E)

90159-05129-00

Unavailable

SCREW, WITH WASHER(81E)

90159-05130-00

$1.49

SCREW, PAN HEAD

98517-04012-00

$3.28

SCREW, PAN HEAD WITH WASHER

97607-04108-00

$5.49

COLLAR (1T2)

90387-07598-00

$4.83

SCREW, BIND (705)

98980-06016-00

$6.82

WASHER, PLATE 6261117600

90201-06043-00

Unavailable
