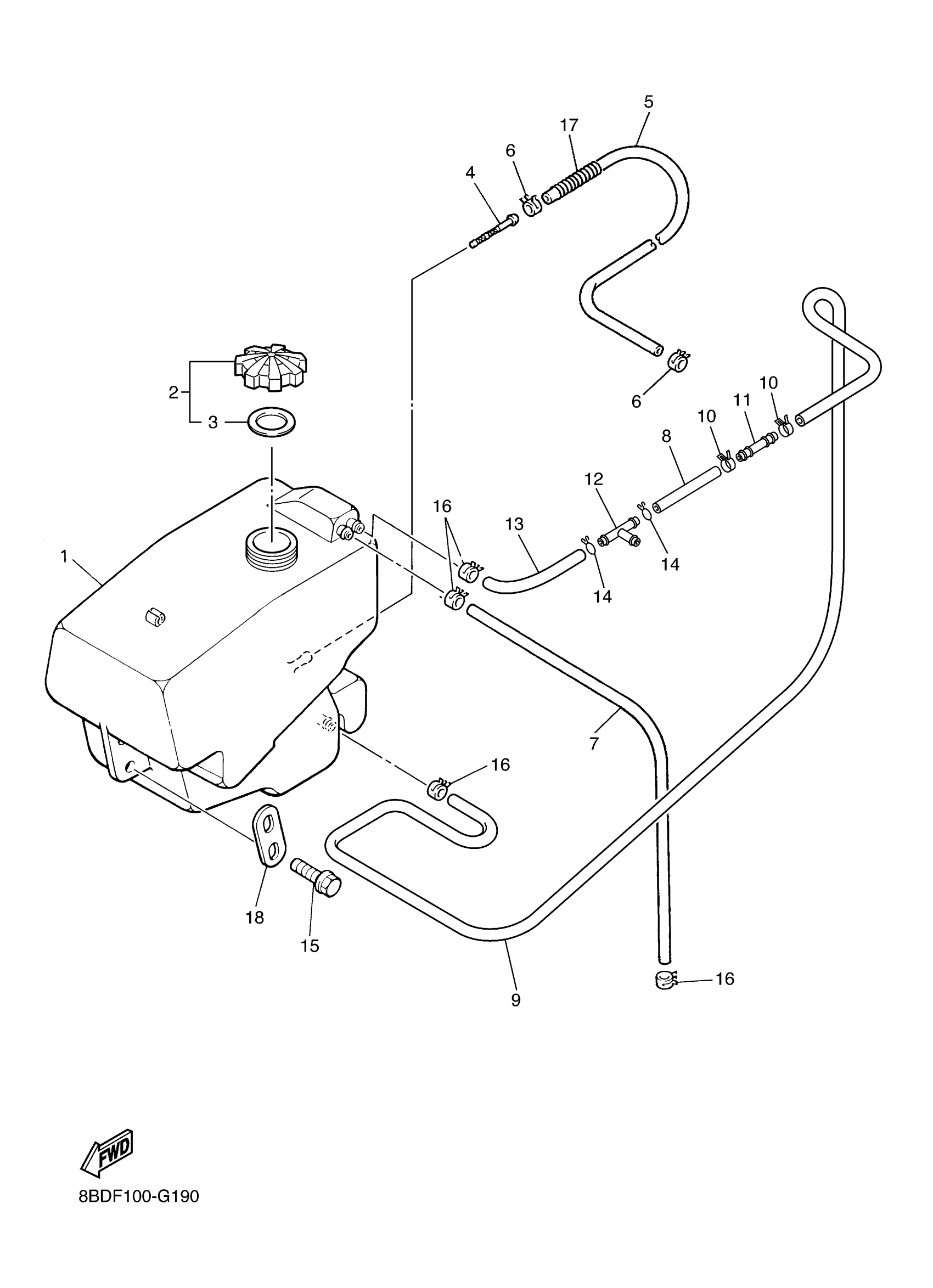

Yamaha BR250TY (BRAVO T) 8BDH 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8R4-24111-10-00

$428.83

2

CAP ASSY

8BD-24610-10-00

Unavailable

3

GASKET, CAP 1

8BD-24641-10-00

$63.83

4

NET, FILTER 1

5BM-24514-00-00

$5.82

5

HOSE

90445-11051-00

Unavailable

6

CLIP

90467-11028-00

$5.14

7

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

8

HOSE

90445-09029-00

$20.86

9

HOSE

90445-09032-00

$64.43

10

CLIP (2A6)

90468-02078-00

$5.80

11

GAUGE, FUEL

8BD-24179-00-00

$111.94

12

PIPE, JOINT

801-24376-00-00

$11.18

13

HOSE

90445-09030-00

$33.78

14

CLIP (8L2)

90467-08017-00

$7.51

15

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

16

CLIP (8A1)

90467-09026-00

$2.72

17

PROTECTOR, PIPE

8F3-24327-00-00

Unavailable

18

WASHER, SPECIAL

8R4-24186-00-00

Unavailable
