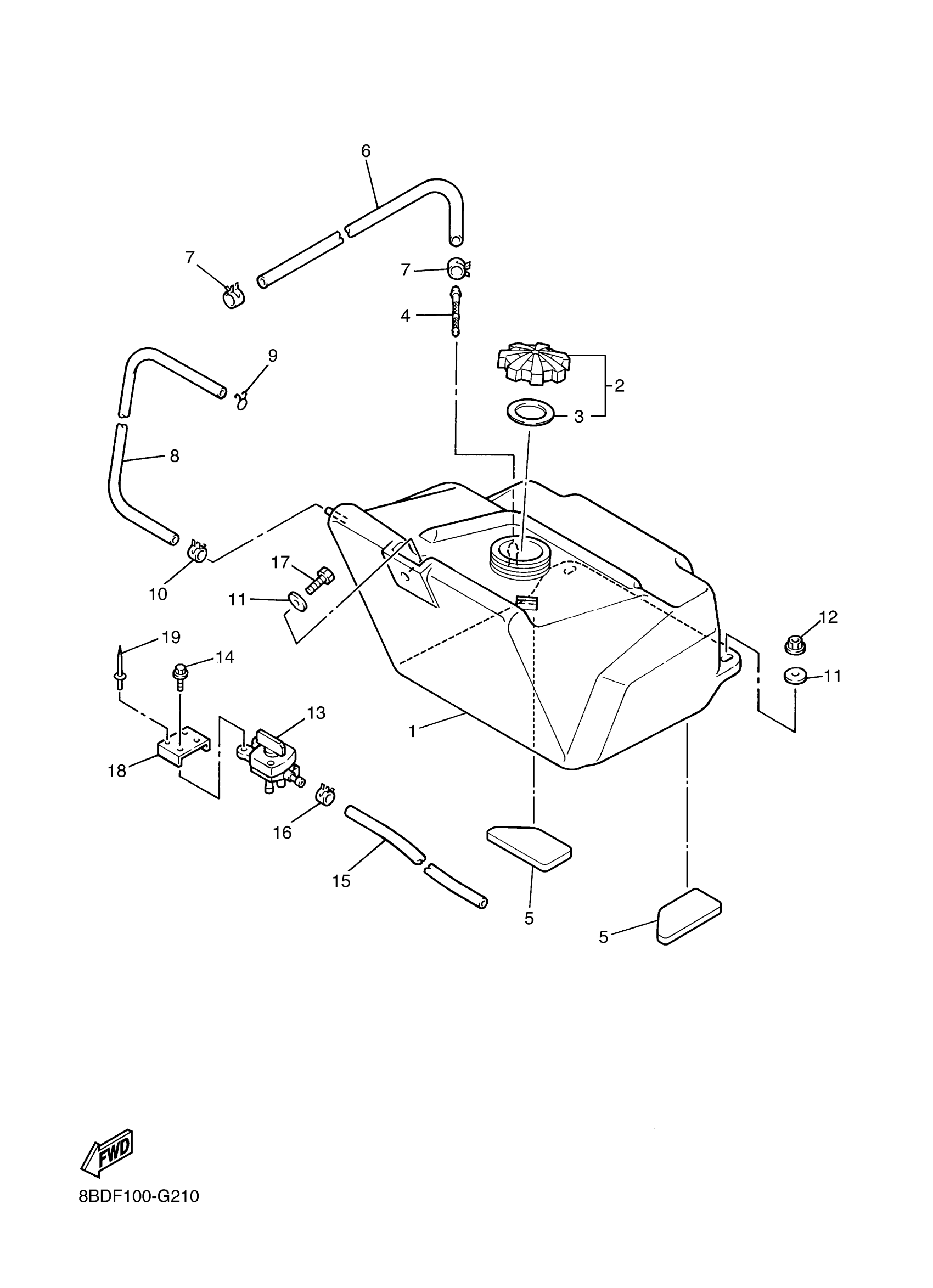

Yamaha BR250TY (BRAVO T) 8BDH 2009 FUEL TANK 2 Diagram

#

Description
Price

1

TANK, FUEL

8BD-24211-10-00

$356.92

2

CAP ASSY

8BD-24610-10-00

Unavailable

3

GASKET, CAP 1

8BD-24641-10-00

$63.83

4

NET, FILTER 1

5BM-24514-00-00

$5.82

5

PROTECTOR, FUEL TANK

8BD-24141-00-00

$6.05

6

PIPE 2

8BD-24312-00-00

$56.42

7

CLIP

90467-11028-00

$5.14

8

HOSE

90445-09032-00

$64.43

9

CLIP (8L2)

90467-08017-00

$7.51

10

CLIP (8A1)

90467-09026-00

$2.72

11

WASHER, PLATE (3L7)

90201-08784-00

$2.54

12

NUT, NYLON

95717-08300-00

$2.57

13

FUEL COCK ASSY 1

8BD-24500-00-00

Unavailable

14

BOLT, FLANGE

95817-06008-00

$4.70

15

PIPE 3

8BD-24313-00-00

$15.25

16

CLIP

90467-11028-00

$5.14

17

BOLT, HEXAGON

97017-08020-00

$6.38

18

BRACKET, FUEL COCK

8BD-24544-00-00

$10.18

19

RIVET, BLIND(3JB)

90267-48095-00

$2.00
