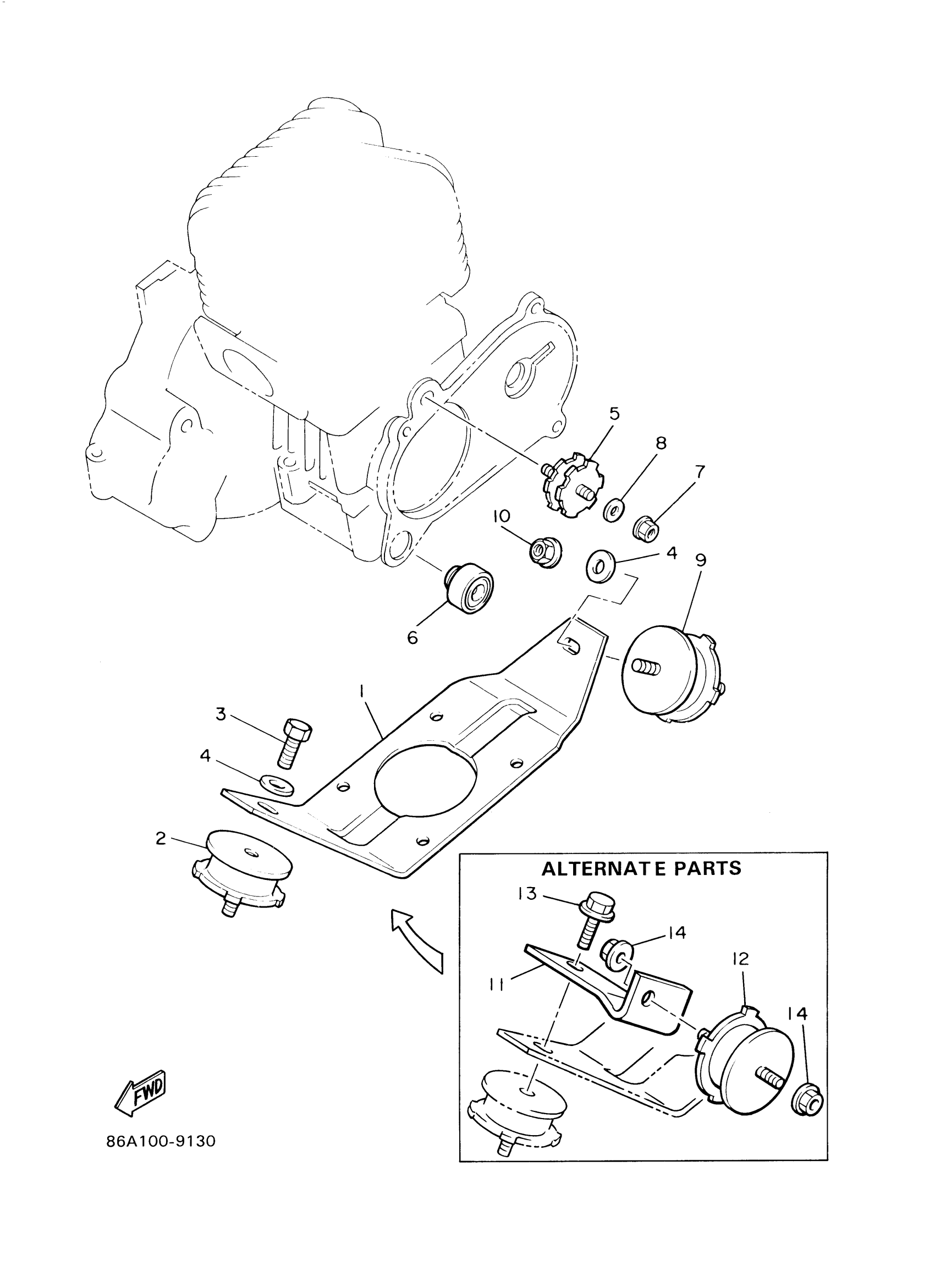

Yamaha BR250TY (BRAVO T) 8BDH 2009 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8R4-21411-00-00

$43.35

2

DAMPER, RUBBER 1

8R4-21485-00-00

$62.15

3

BOLT, FLANGE(8BD)

95807-10014-00

$1.69

4

WASHER, PLATE (856)

90201-10321-00

$5.43

5

DAMPER 2

8V7-21486-00-00

$53.20

6

DAMPER

8R4-21488-01-00

$11.58

7

NUT, FLANGE(JN5)

95707-08500-00

$1.49

8

WASHER(6TC)

92907-08200-00

$6.18

9

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

$68.00

10

NUT (2Y5)

90179-10279-00

$6.09

11

BRACKET, ENGINE 2

86A-21419-00-00

$73.09

12

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

$68.00

13

BOLT, FLANGE

95817-10020-00

$5.10

14

NUT, FLANGE(8AB)

95707-10500-00

$1.66
